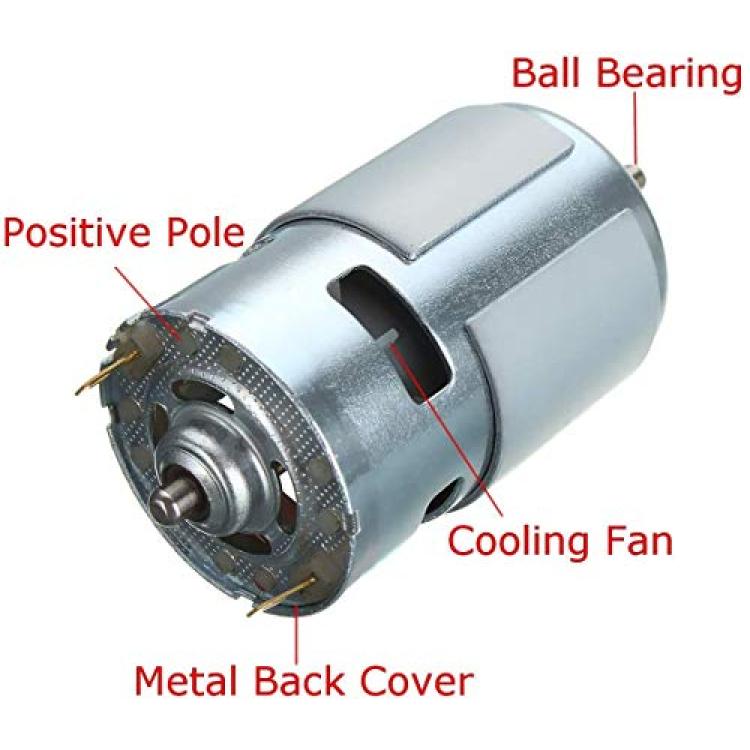

775 DC Motor DC 24V Max 20000RPM Ball Bearing Large Torque High Power Low Noise Gear Motor Electronic Component Motor（with Bracket）
Availability: Pre-Order, Inquiry Price
About this product
*☞ This DC motor has the characteristic of high speed, and small size
*☞ The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life
*☞ Select high-quality raw materials, good gloss, simple and generous
*☞ This motor is adopted of pure copper wire coil, with low heat and low loss
*☞ Suitable for electric tools, electric screwdriver, electric fan toys, juice machine, paper shredder, vacuum
Description
? The following are the measured parameters of the motor for reference:
Rated voltage:Â 24V
Rated current: 4A, 10A, 12A (recommended starting current 10A)
Rated speed: about 24V--20000RPM

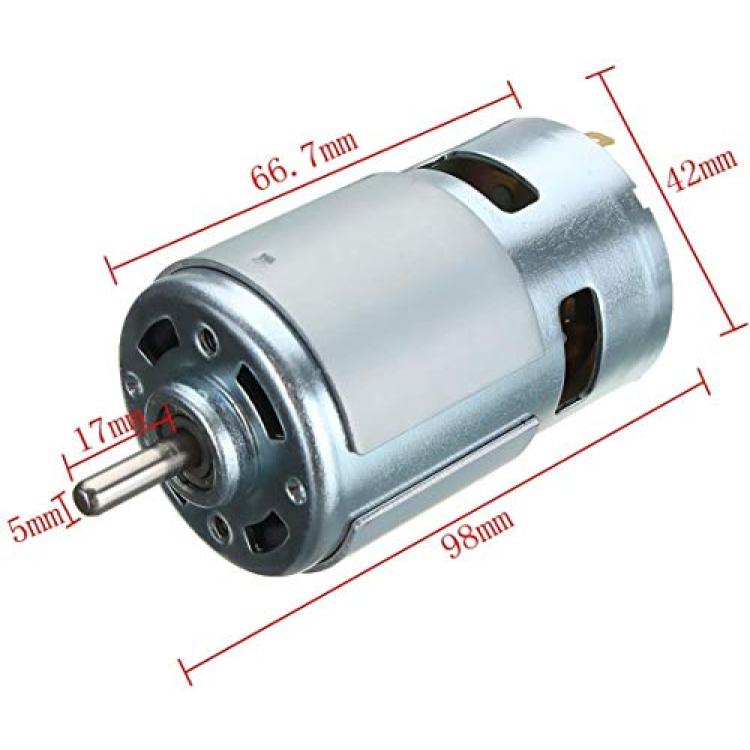

Motor step height: 4.5mm
Motor step diameter: 17.5mm
Shaft length: 16mm (shaft length above step level)
Shaft diameter: 5mm shaft
Motor diameter: 42mm
Motor length: 66.5mm
Step height of motor tail: about 7mm
Length of shaft out of motor tail: about 4.5mm
Mounting hole pitch: about 29mm
Mounting hole diameter: M4 screw
Motor weight: about 480g(1 x 775 Motor --1x Motor bracket)

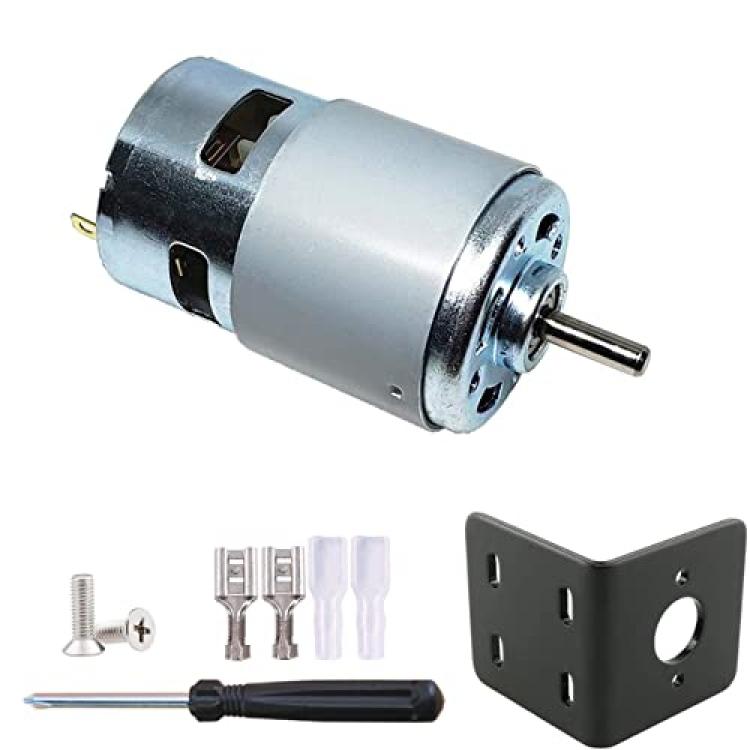

? Package included?
   1 x 775 Motor
  1x Motor bracket
  2x Fixing screw
? Notes:
1. Manual measuring, please allow 1 ~ 3mm error,thank you.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the picture.
