775 DC Motor DC 12V - 24V Max 12000 RPM Ball Bearing Large Torque High Power Low Noise Gear Motor Electronic Component Motor 2-Pack（with Bracket）
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 5.2 x 4.09 x 3.11 inches; 1.54 Pounds
*Date First Available : November 18, 2020
*Manufacturer : puly
Description
? The following are the measured parameters of the motor for reference:
 Rated voltage: 12V ~ 24V
 Rated current: 4A, 10A, 12A (recommended starting current 10A)
 Rated speed: about 12V/24V----10000RPM/20000RPM

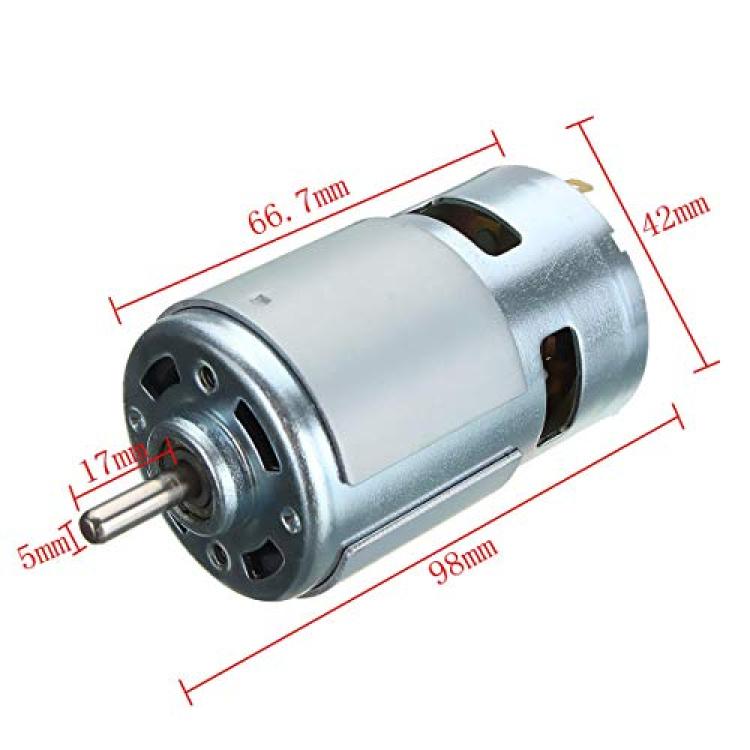

 Motor step height: 4.5mm
 Motor step diameter: 17.5mm
 Shaft length: 16mm (shaft length above step level)
 Shaft diameter: 5mm shaft
 Motor diameter: 42mm
 Motor length: 66.5mm
 Step height of motor tail: about 7mm
 Length of shaft out of motor tail: about 4.5mm
 Mounting hole pitch: about 29mm
 Mounting hole diameter: M4 screw
 Motor weight: about 700g(2 x 775 Motor --2x Motor bracket)

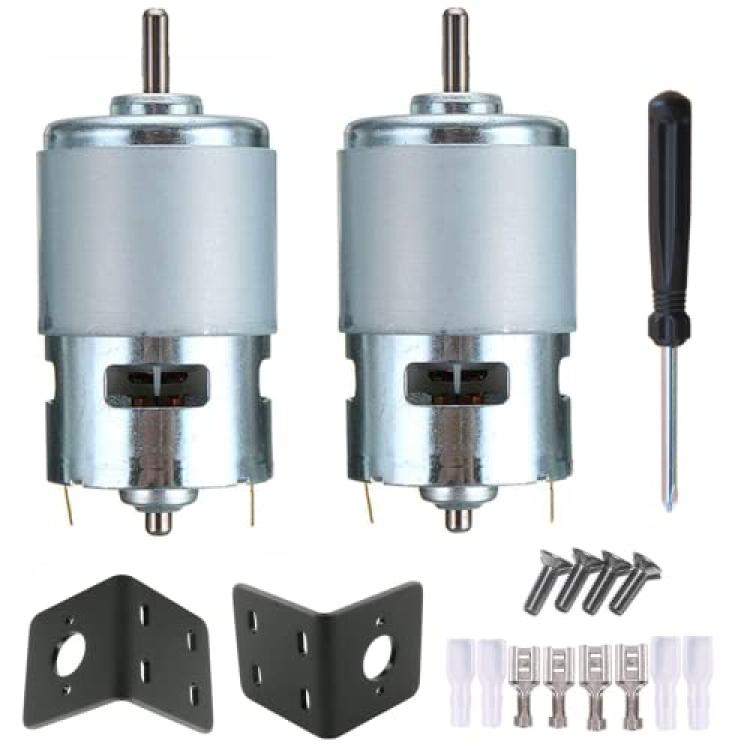

 ? Package included?
     2 x 775 Motor
    2x Motor bracket
    4x Fixing screw
? Notes:
1. Manual measuring, please allow 1 ~ 3mm error,thank you.
2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the picture.
