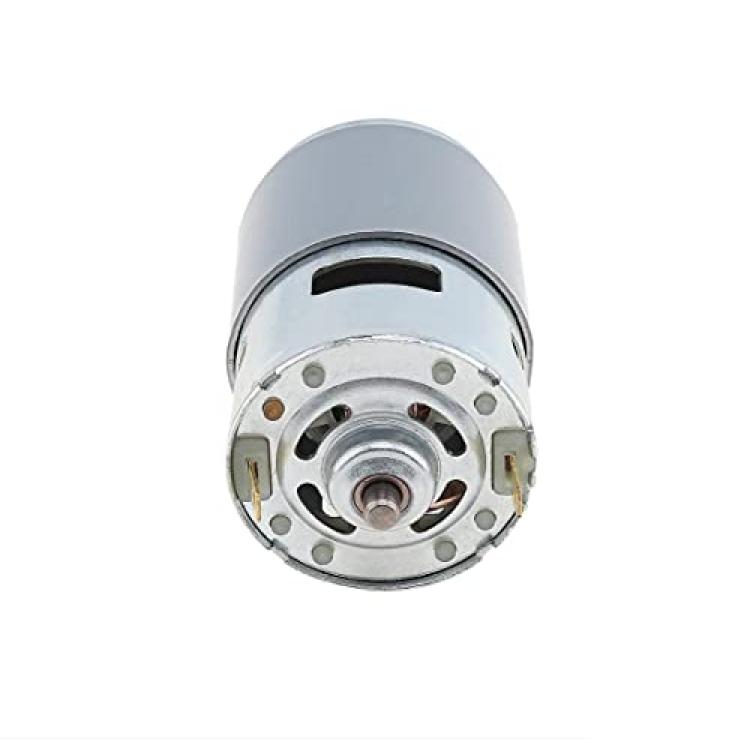

775 DC Motor, 12V-24V 3500-9000 RPM Mini Electric Motor, Double Ball Bearing Large Torque High Power Motor for DIY Parts (15000-25000RPM, 1)
Availability: Pre-Order, Inquiry Price
About this product

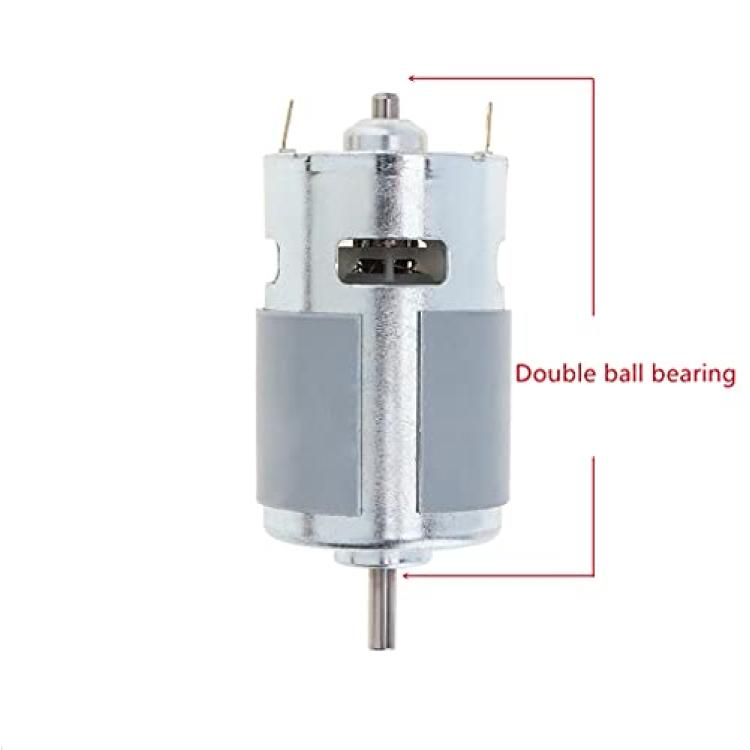

*DC 12V 24V round shaft 775 electric motor, with dual accuracy ball bearing
*Type: Micro DC Motor; Rated voltage: 12V; No-Load Speed: 3500 RPM; Rated voltage: 24V; No-Load Speed:9000 RPM
*Shaft Diameter: 5 mm; Shaft length: 17 mm
*The exquisite manufacturing process of the DC motor makes it small in size, low in heat generation, faster in operation, high in speed and low in noise, and can rotate CW and CCW
*With copper wire production, durable for using. Easy to wire and install. Durable construction for long-lasting performance. Wide applied to electric tools, electric fans, electric cleaners, etc. Small size but large torque
Description

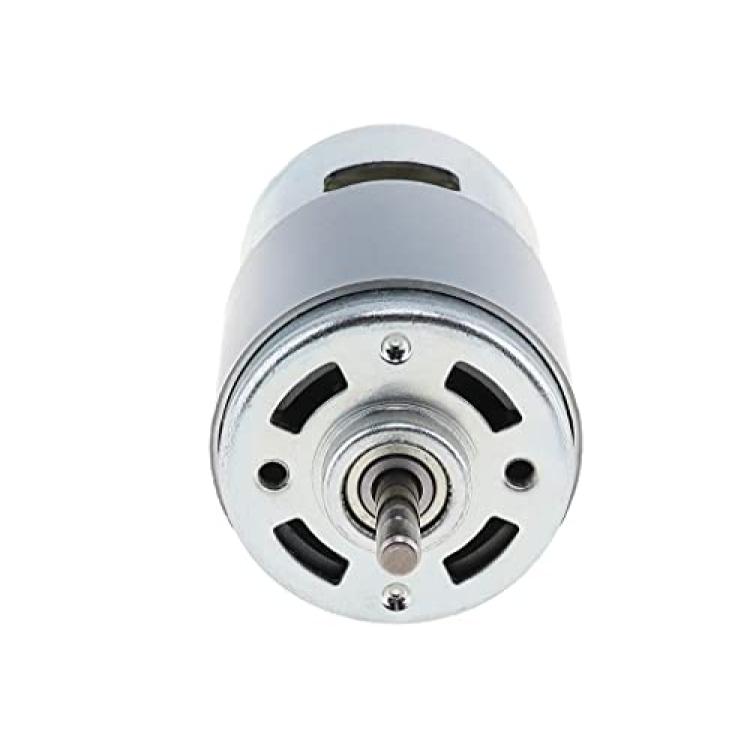

This is the front end of the motor ball bearing, the back end is a copper sleeve, 5 sets of windings, the voltage is 12V 24V, the torque is large, and the noise is low.
specification:
Model: 775
Mounting hole size: M4
Mounting hole: 2

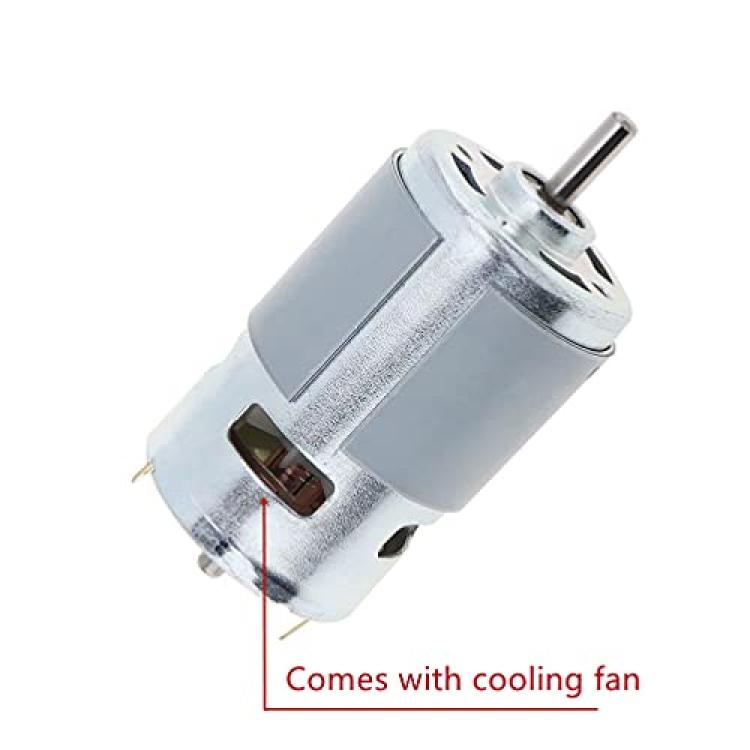

Cooling fan: Yes
Rated voltage: 12V 24V
Rated current: 0.16A
Rated speed: 5000RPM
Different voltage parameters:
DC 12V, speed 3500RPM
DC 24V, speed 9000RPM
Shaft diameter: 5 mm/0.2 inch
Shaft length: 17mm / 0.67in
Body length: 66.7mm / 2.63in
Front pedal diameter: 17.4 mm/0.69 inches
Front high level: 4.7 mm/0.19 inch
Body diameter: 42 mm/1.65 inches
Total length of motor: 98mm / 3.86in
Diagonal installation distance: 28.8mm / 1.13in
Package weight: 351g/12.38oz
Packing size: 100 * 50 * 50mm / 3.94 * 1.97 * 1.97 inches

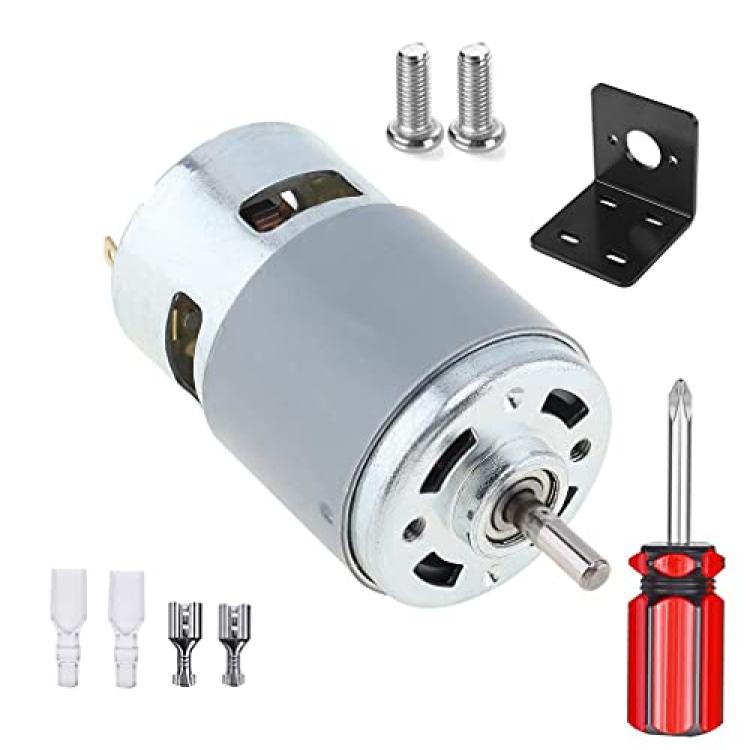

packing list:
2 * 775 motor
2* Motor bracket
1 * Phillips screwdriver
4 * Wiring terminal
4 * Two fixing screws
