Metal Gear Motor,1Pcs 25mm DC 5-12V 25GA-370 Gear Reduction Motor Large Torque Gear Box Motor for DIY (9#)
About this product
*This product is a DC gear motor with high precision metal gear, stable working
*This DC motor features large moment of force, low speed, and low noise.
*The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.
*This motor is adopted of pure copper wire coil, with low heat and low loss.
*Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine
Description
Specification:

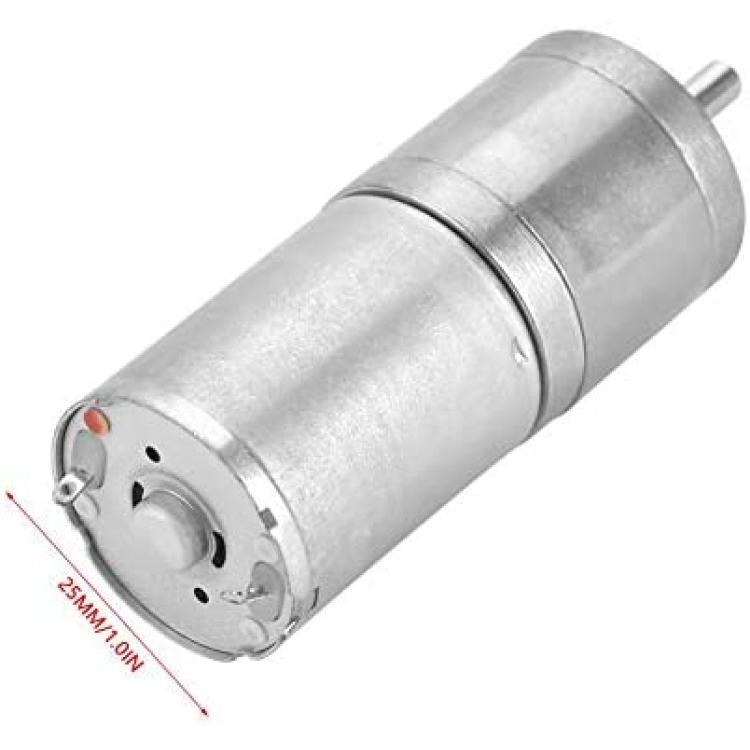

Outer diameter: 25 mm/1.0in Shaft diameter: 3 mm /0.1in Shaft length: 10 mm/0.4in
Weight: 96g/3.4oz Voltage Gear ratio       no load load Stall speed Current speed Current toqure Current toqure 12V 1:650 5RPM ?150MA 3RPM ?70MA 1150gf.cm ?2.1A 15.4kgf.cm 12V 1:150 10RPM ?170MA 7RPM ?100MA 980gf.cm ?2.1A 14.8kgf.cm 12V 1:150 30RPM ?170MA 25RPM ?100MA 770gf.cm ?2.1A 12.0kgf.cm 12V 1:200 60RPM ?170MA 51RPM ?100MA 750gf.cm ?2.1A 11.8kgf.cm 12V 1:100 100RPM ?150MA 73RPM ?185MA 660gf.cm ?2.1A 10.5kgf.cm 12V 1:50 200RPM ?180MA 165RPM ?105MA 580gf.cm ?2.1A 8.8kgf.cm 12V 1:30 300RPM ?190MA 254RPM ?145MA 180gf.cm ?2.1A 7.8kgf.cm 12V 1:25 400RPM ?190MA 344RPM ?145MA 170gf.cm ?2.1A 7.7kgf.cm 12V 1:20 500RPM ?190MA 460RPM ?145MA 150gf.cm ?2.1A 7.5kgf.cm 12V 1:10 1000RPM ?190MA 820RPM ?145MA 88gf.cm ?2.1A 7.2kgf.cm
Package list:
1 x gear motor
