895 DC Motor, 12V 24V 7500-15000rpm Ball Bearing Large Torque High Speed Double Shaft Motor High Power Low Noise Motor for Circular Saw DIY Drill
Availability: Pre-Order, Inquiry Price
About this product
*895 Double Ball Bearing motor .It Supports High-speed and High-torque DC Motors built-in Radiator, low Noise.
*No load Rated Current:1.1A-1.5A. No load Speed:7500rpm at 12V;15000rpm at 24V. Torque:4.2kg/cm at 12V; 8kg/cm at 24V (It is best not to reach the MAX Torque when the motor is working.）
*(Not recommend to use the motor over DC 24V, it will shorten the motor usage life); starting current needs to be above 10A

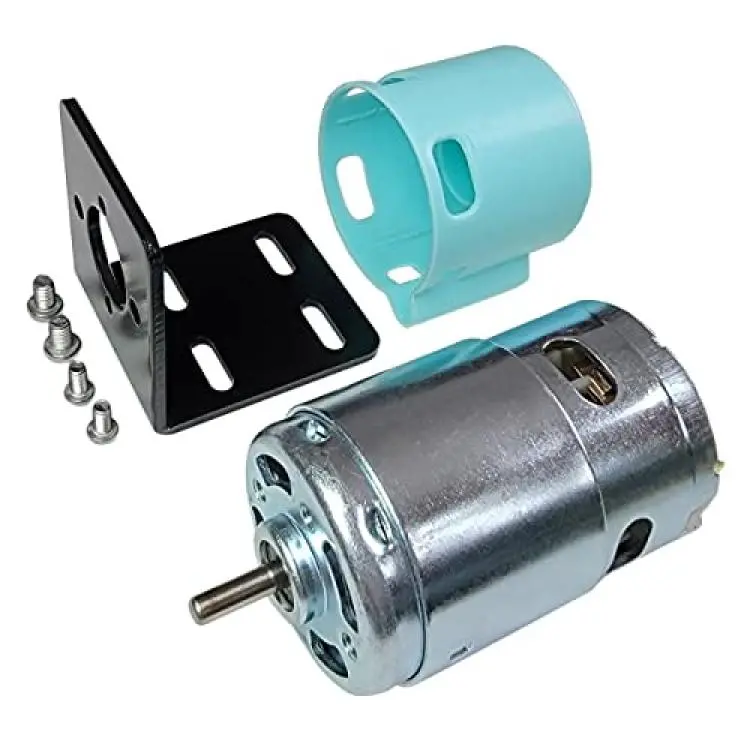

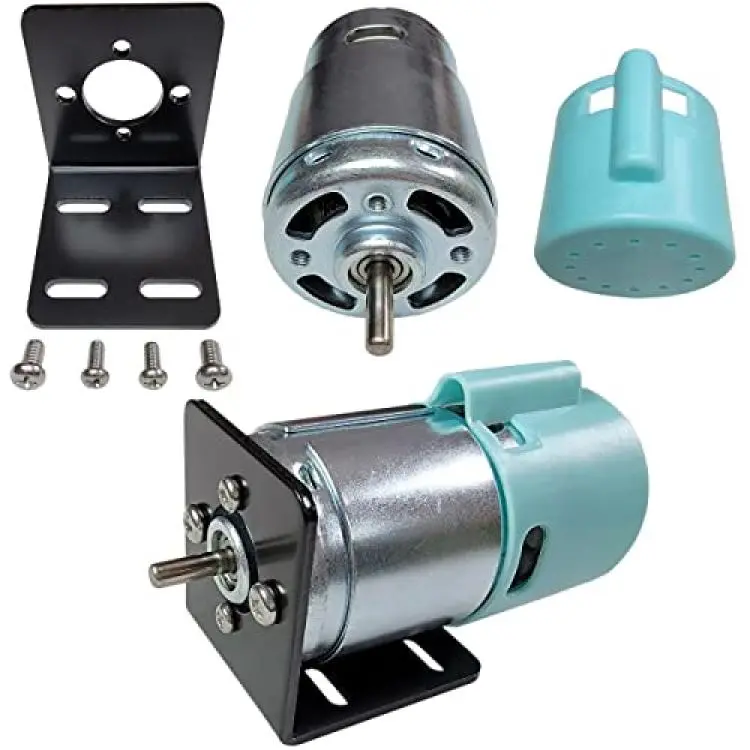

*Package included: 1x 895 motor+1 xMotor bracket + 2 xFixing screw + 1x protect cover
*It applied to electric tools, electric fans, electric cleaners, etc. Small size but large torque.
Description
*This is a DC 12V-24V 895 double shaft motor, with dual accuracy ball bearing. The body casing is galvanized and rustproof, effectively blocking dust damage to the motor. Thicker carbon brushes, more durable. *The motor uses pure copper coils inside for longer life and less jitter, and has a built-in cooling fan.Easy to wire and install. Durable construction for long-lasting performance. *?Specification:? Type: 895 DC Motor; Rated voltage: 12V, No-Load Speed: 7500 RPM; Rated voltage: 24V; No-Load Speed: 15000 RPM; Torque:?8.6Kgf.cm; Work Temperature:-20?~85?, Work Humidity:10%~85%RH *?Size:? Front Shaft Diameter: 5mm; Front Shaft length: 15mm;Length?72mm; Width: 48mm; *?Application:? Wide applied to electric tools, electric fans, electric cleaners, shredder, sprayer, small cutting machine, small table saw, money counter, printer.
