Iverntech NEMA 17 Stepper Motor with Integrated 310mm T8 Lead Screw for Prusa i3, Reprap Corexy, MP Select Mini 3D Printers and CNC Mile Routers…
Availability: Pre-Order, Inquiry Price
About this product
*2mm pitch, 4 starts, 8mm lead
*High torque nema 17 stepper motor, 400mN.m/57.1 oz.in, 42mm, 2 phase 4 wires
*Come with a brass nut and 1M (39.37") motor wire

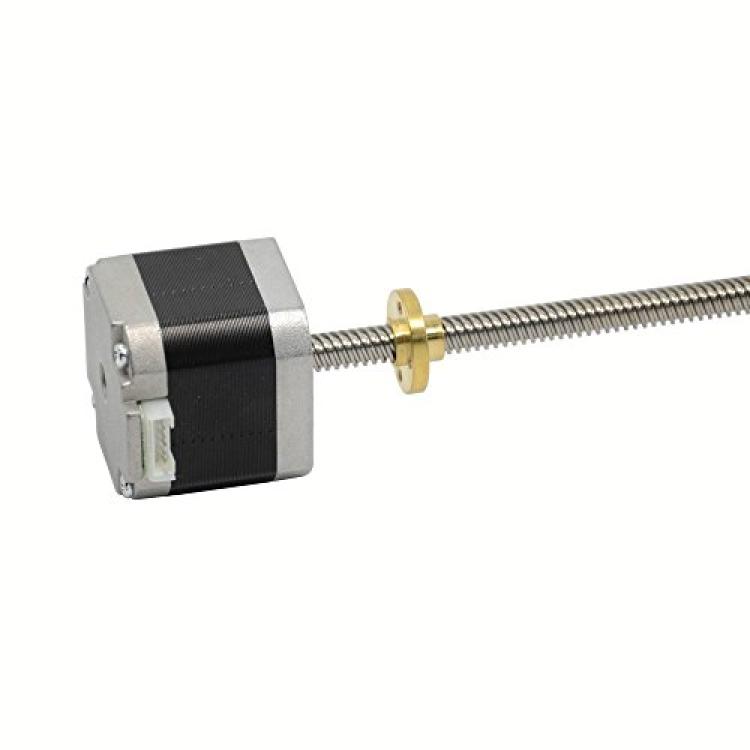

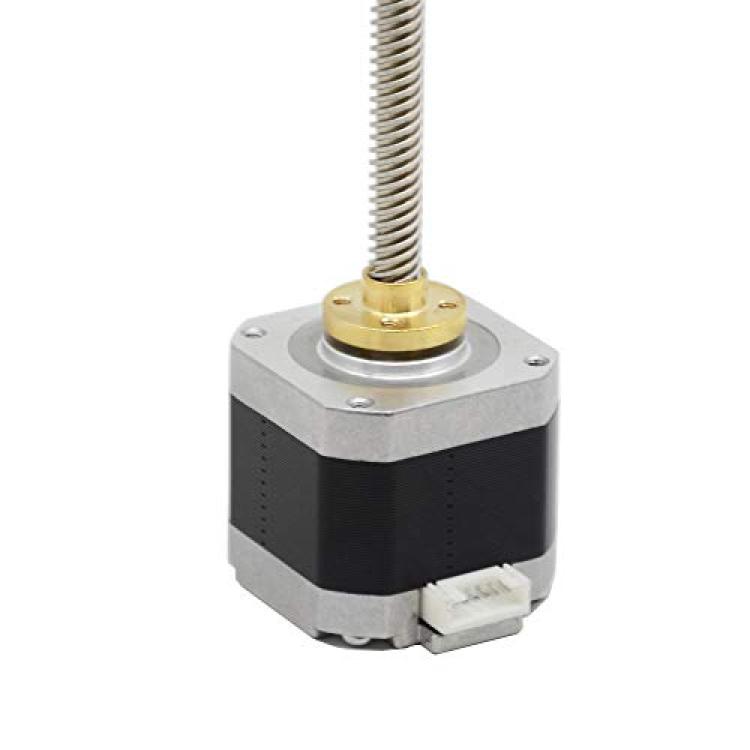

*NEMA 17 Stepper Motor with Integrated 310mm Tr8x8 Lead Screw, much stable than shaft coupling connecting
*Great replacement for the Z axis of prusa i3 3d printers or CNC Machine
Description

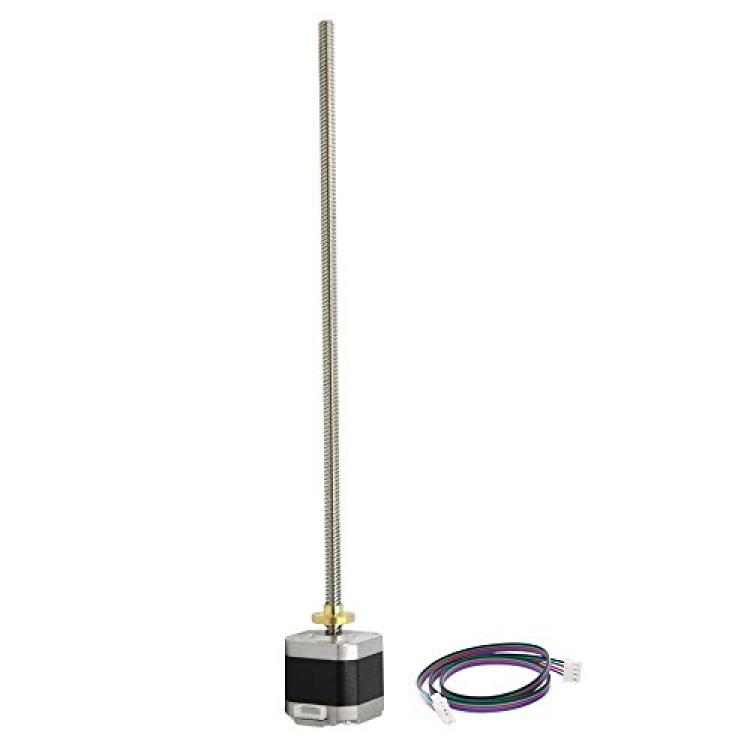

Iverntech 310mm Tr8x8 Lead Screw with Integrated NEMA 17 Stepper Motor Specifications: Lead screw diameter: 8mm Lead screw length: 310mm (±1mm) Motor size: 42 x 42 x 40 mm(L W H) Step angle : 1.8 degree Nut material: Brass Holding Torque: 400mN*m Thrust(full step): 12.5kg Rated Current/Phase: 1.5A Rate Voltage: 3.3v Rated Resistance/Phase: 2.2ohms ± 10% Item Weight: 500g Packing List: 1 x NEMA 17 stepper motor with Integrated 310mm lead screw 1 x 1M motor wire 1 x Brass nut
