Iverntech NEMA 17 Stepper Motor with Integrated 350mm T8 Lead Screw for RepRap Prusa i3 3D Printers Z Axis or CNC Machine…
Availability: Pre-Order, Inquiry Price
About this product
*Package Dimensions : 17.25 x 3.25 x 2.5 inches; 1.05 Pounds
*Date First Available : October 4, 2019
*Manufacturer : Iverntech
Description

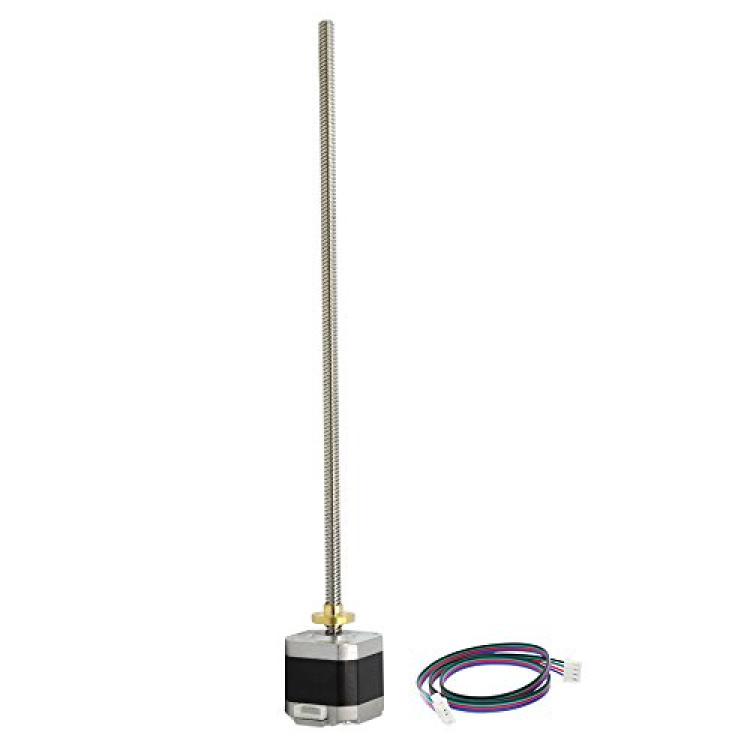

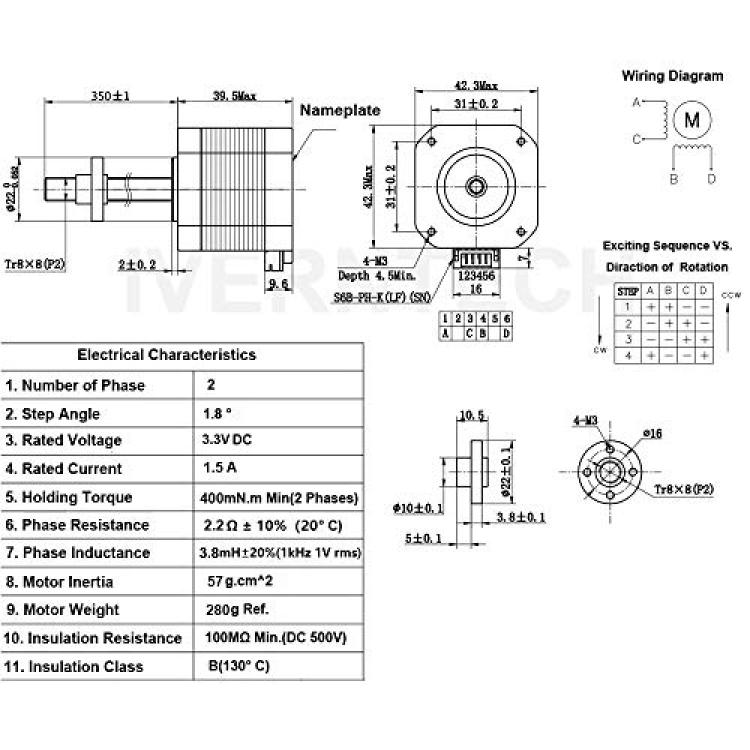

Iverntech NEMA 17 Stepper Motor with Integrated 350mm Tr8x8 Lead Screw Specifications: Lead screw diameter: 8mm Lead screw length: 350mm (±1mm) Motor size: 42 x 42 x 40 mm(L W H) Step angle : 1.8 degree Nut material: Brass Holding Torque: 400mN*m Thrust(full step): 12.5kg Rated Current/Phase: 1.5A Rate Voltage: 3.3v Rated Resistance/Phase: 2.2ohms ± 10% Item Weight: 500g Packing List: 1 x NEMA 17 stepper motor with Integrated 350mm lead screw 1 x 1M motor wire 1 x Brass nut
