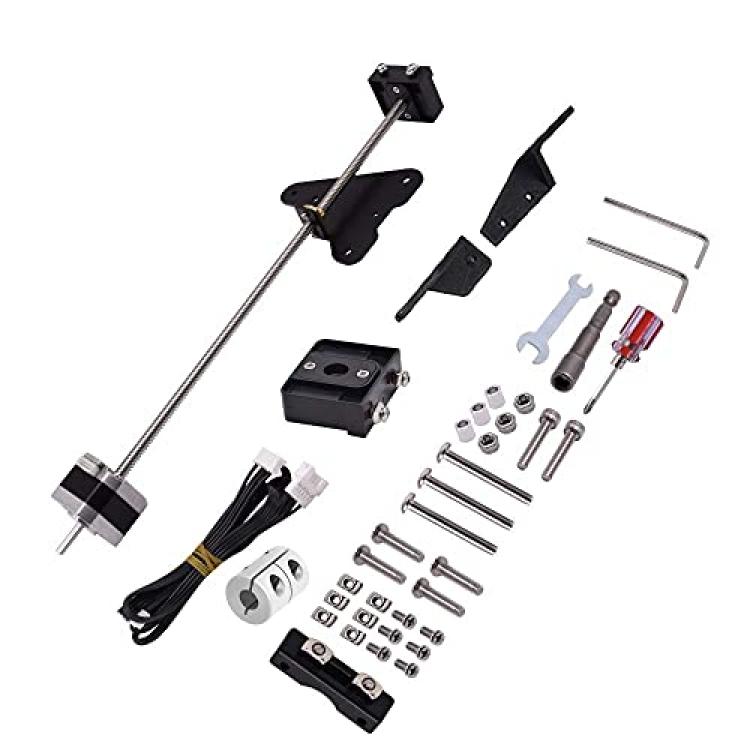

CHPOWER Ender 3 Dual z-axis Upgrade Kit, Aluminium Lead Screw Dual Z Stepper Motor Upgrade Kit for Creality Ender 3, Ender 3 Pro, Ender 3 V2 3D Printers
Availability: Pre-Order, Inquiry Price
About this product
*Perfect upgrades for your CREALITY Ender 3, Ender 3 Pro, Ender 3 V2 3D Printers. Absolutely Essential E3P mod: Your 3D printer accuracy cant be beat by anything else youve made before this.
*High quality materials and meticulous workmanship enable this upgrade kit’s long service life. Perfect simple upgrade. Easy to install just switch the middle pins on the stepper motor harness that this kit come with.
*Made of high quality aluminium alloy, the timing belt tensioner can easily adjust the tension of belt.
*Double Z structure runs smoothly. Using the original T8 leads to 2MM screw. Use all-aluminum coupling and original 42 stepper motor, stable operation.
*Minimal cost upgrade and maximum optimization. Low upgrade cost, Cost-effective(high cost performance), technical guidance, mature solution.
Description
Feature:

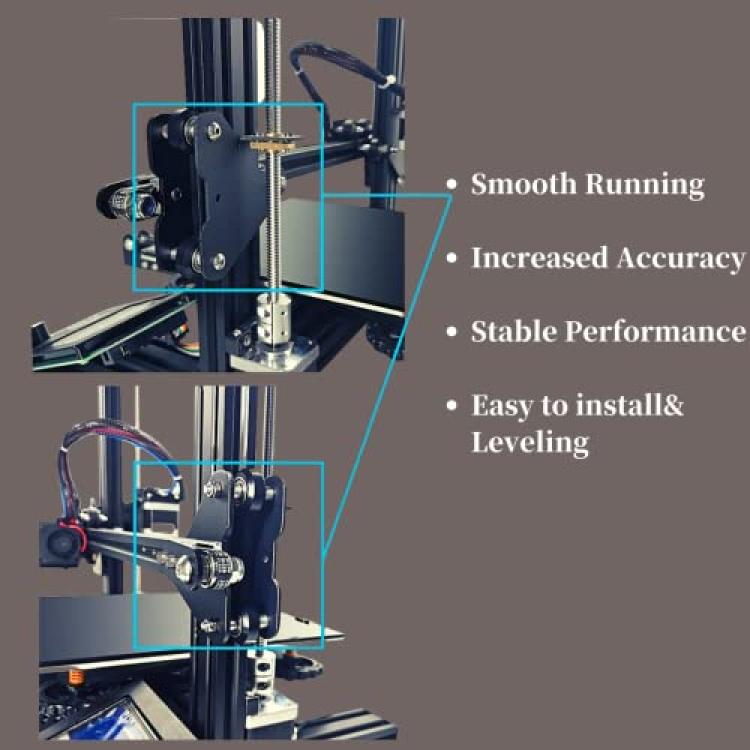

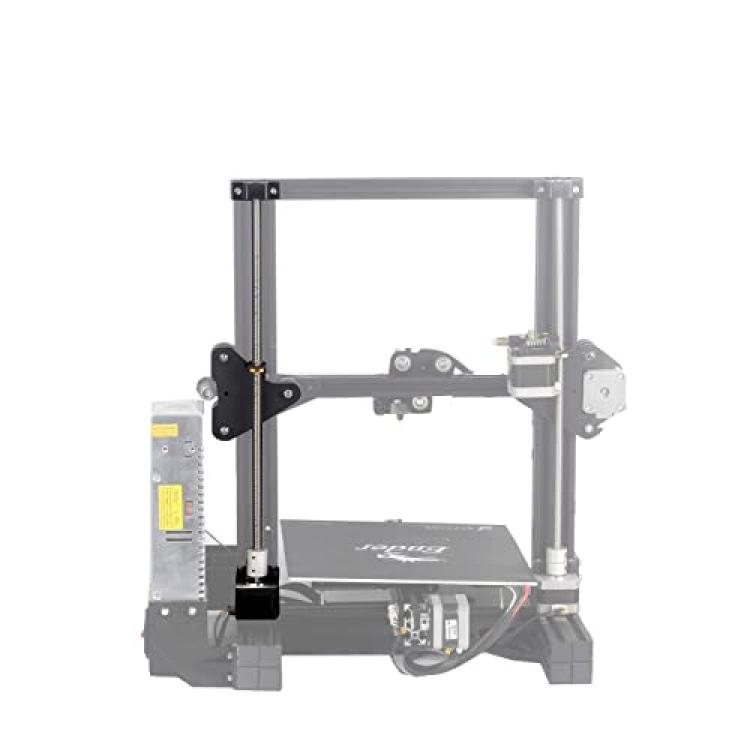

- Dual Z-axis Upgrade Kit is a great system that provides you a perfect solution to avoid shaking on the X-gantry. The original 42 stepper motor ensure stable operation and smooth move. Improve 3D printer accuracy.
- With this dual Z-axis updates, the X-axis rises steadily and runs smoothly, which completely avoids the stacking of the underlying consumables, reduces the layer pattern caused by the Z-axis vibration, and greatly reduces the difficulty and frequency of leveling.
How to set up:
1) Turn off the printer, unplug the power cord, and use a hex wrench to remove the two screws which are secure the power supply. Remove the power supply.

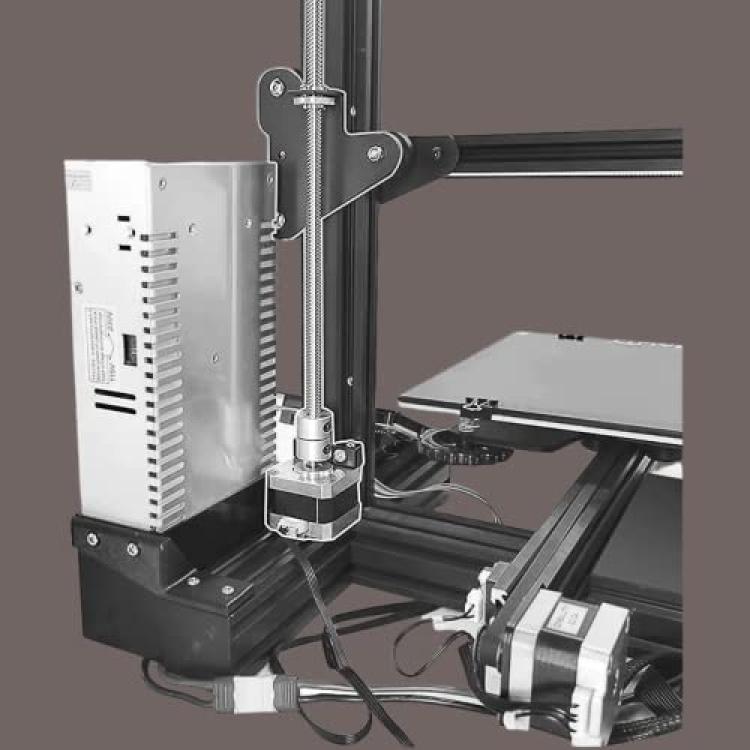

2) Install the Coupler on the stepper motor and tighten the screws. Use the hexagon socket screws and the Z AxisMotor Bracket to fix the motor on the aluminum profile.
3) Remove all the screws of sheet metal pulley on the right side of the X axis.
4) Use long screws to fix the Z-axis sheet metal and install it on the X-axis right sheet metal. Screw the T8 screw into the screw nut to the coupler, and tighten the screw of coupler.

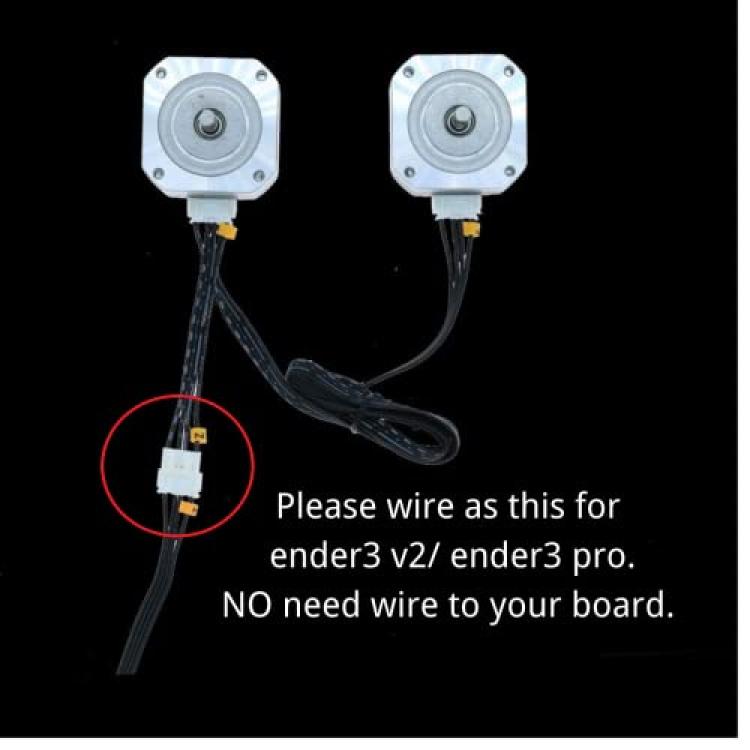

5) Install dual Z stepper cable to the motherboard, and connect two Z motors.
6) Install the Phillips screw and the boat nut on the power supply holder to install the power supply.
7) Place the lead screw bearing guide on the left and right sides of the X-axis aluminum profile and let the Z-axis rise to the highest position. If one side is uneven,turn the corresponding coupler clockwise.

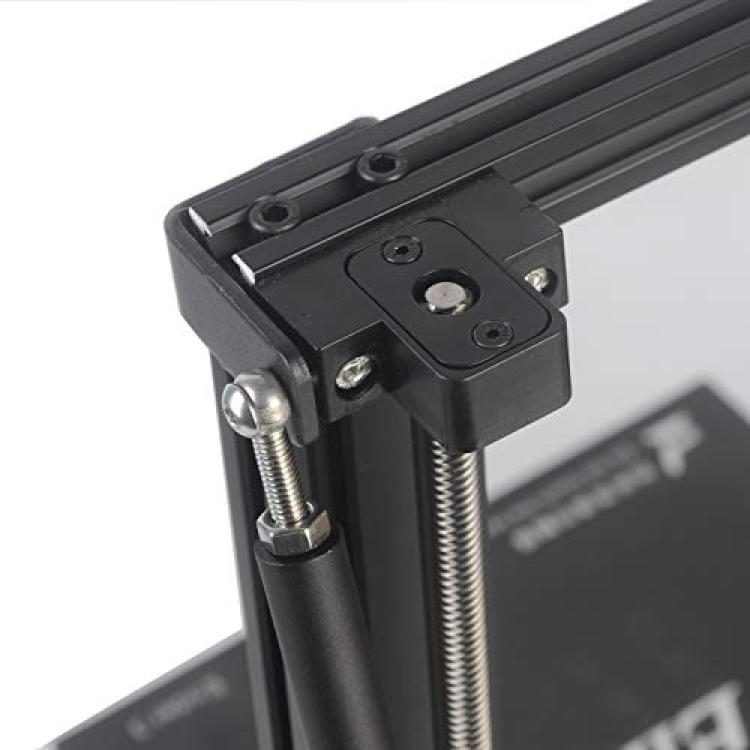

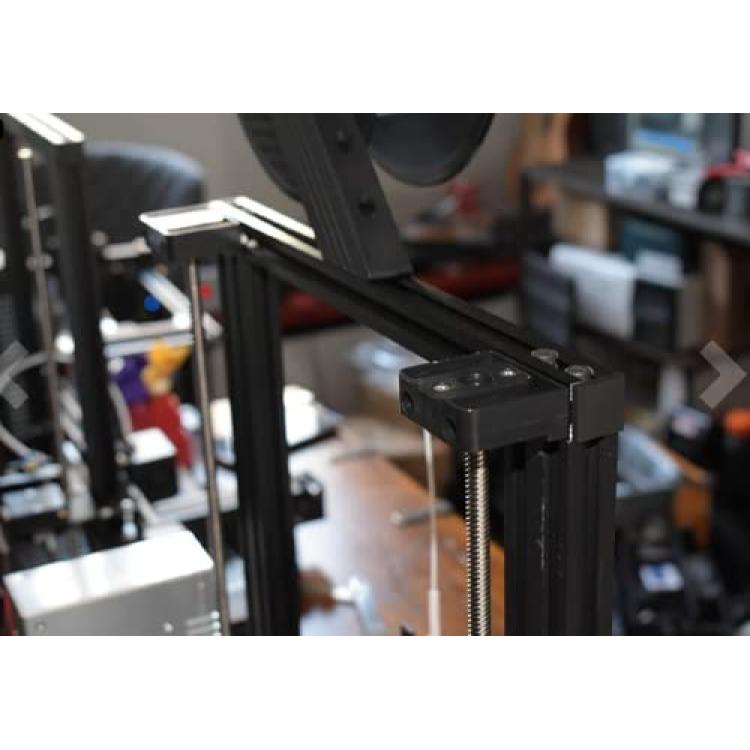

8) Install the lead screw bearing guide and tighten the screws. Pay attention to the alignment position of the mount.
