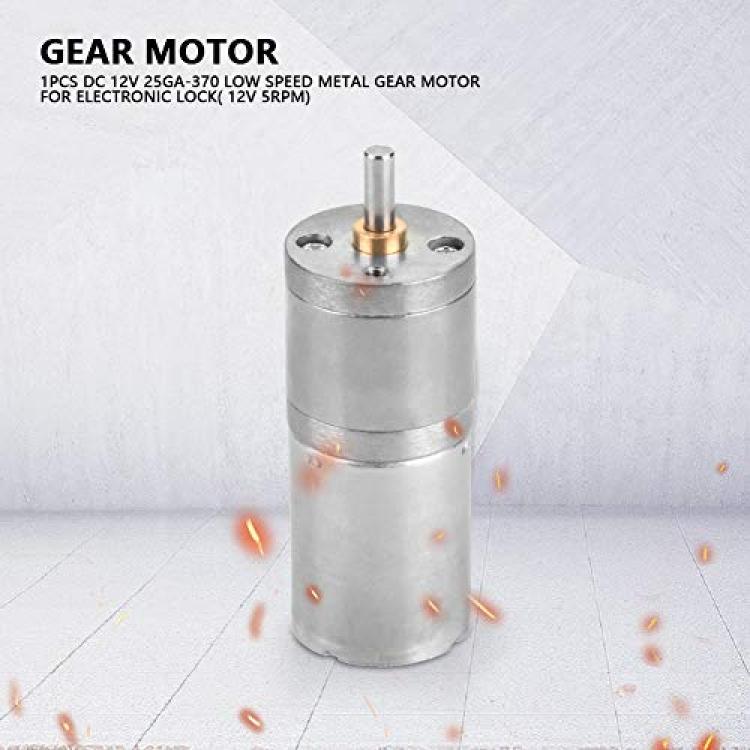

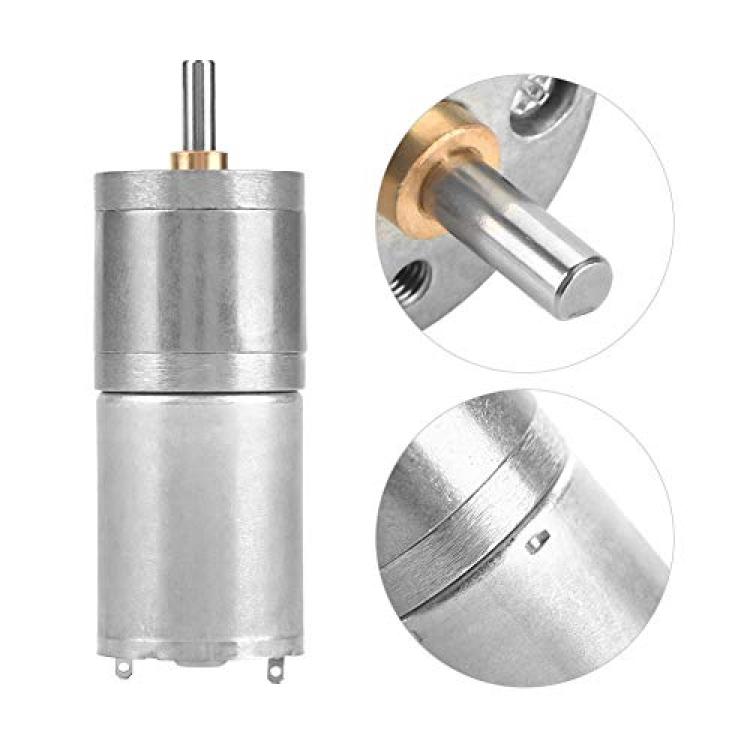

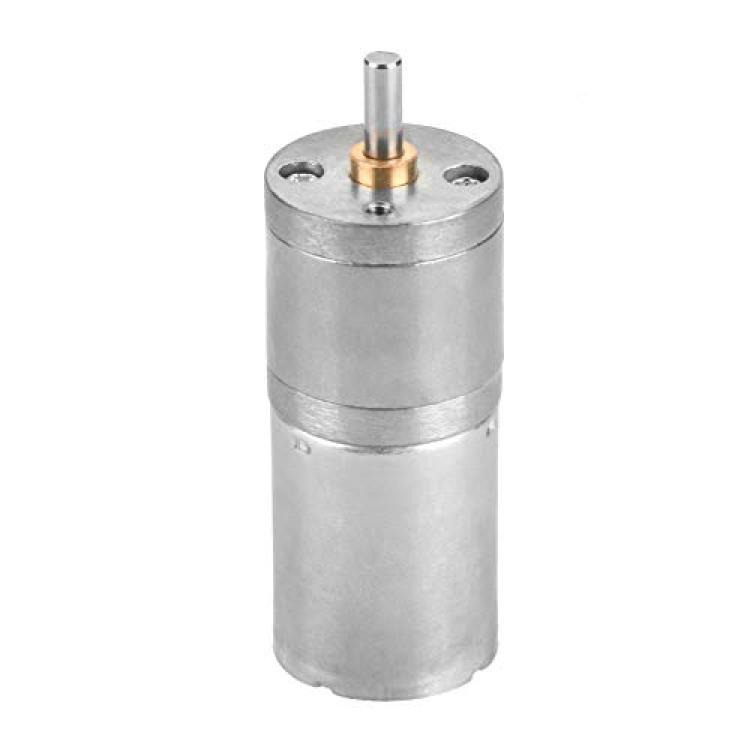

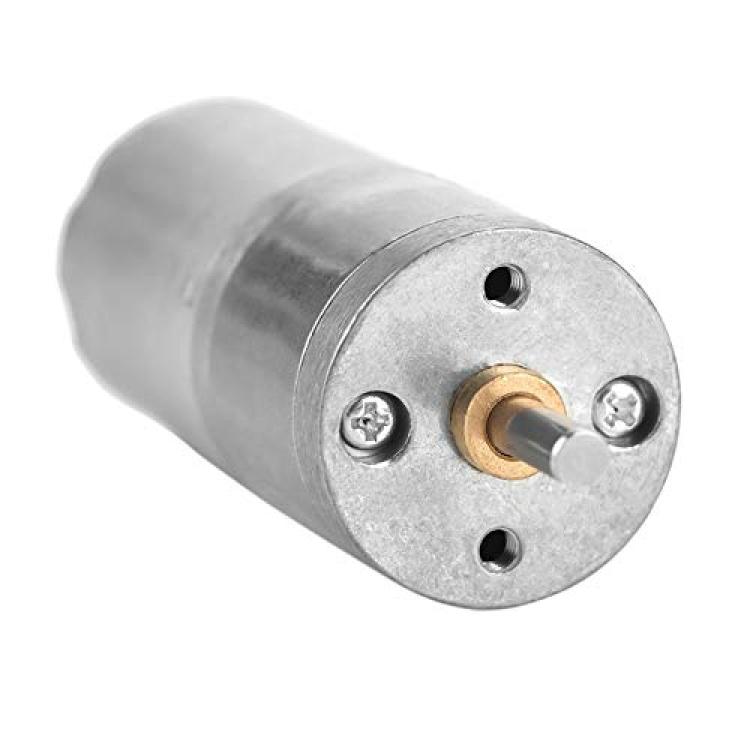

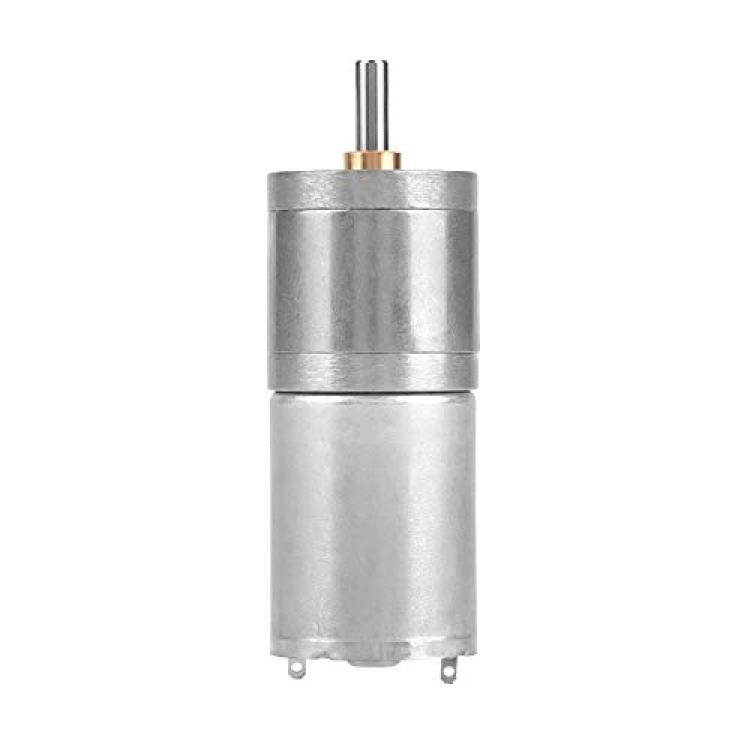

1Pcs 25mm DC 12V 25GA-370 Low Speed Metal Gear Motor for Electronic Lock Electric Toy Car Children Motorcycle(12V 1000RPM)
Availability: Pre-Order, Inquiry Price
About this product
*The motor is made of high-quality metal gear materials,wear-resisting, avoid tooth breaking, high strength, firm structure and long service life,
*This DC motor features large moment of force, small body, high-power and low noise, sturdy and durable.
*DC gear motor with high-precision gear, durable in use,it is a great accessory for long life using, effectively protect the gear box motor body.
*Widely used inelectronic lock, smart car, electronic locks, elevators, robotic arms, robots, Electronic toys and so on
*We strive to provide you with the highest quality product and the best customer experience, if youre not entirely satisfied, please just feel free to contact us at any time.
Description
Features:
This product is a DC gear motor with high precision metal gear, stable working  This DC motor features large moment of force, low speed, and low noise. The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life. This motor is adopted of pure copper wire coil, with low heat and low loss. Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine
Specification:
Model: GA25YN370
Rated power: 3.5 (W)
Product type: Brush dc motor
Rated voltage: 5-12 (V)
Rated current: 0.06 (A)
Type(Optional): 12V 5RPM, 12V 10RPM, 12V 30RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM, 12V 300RPM, 12V 400RPM, 12V 500RPM, 12V 1000RPM

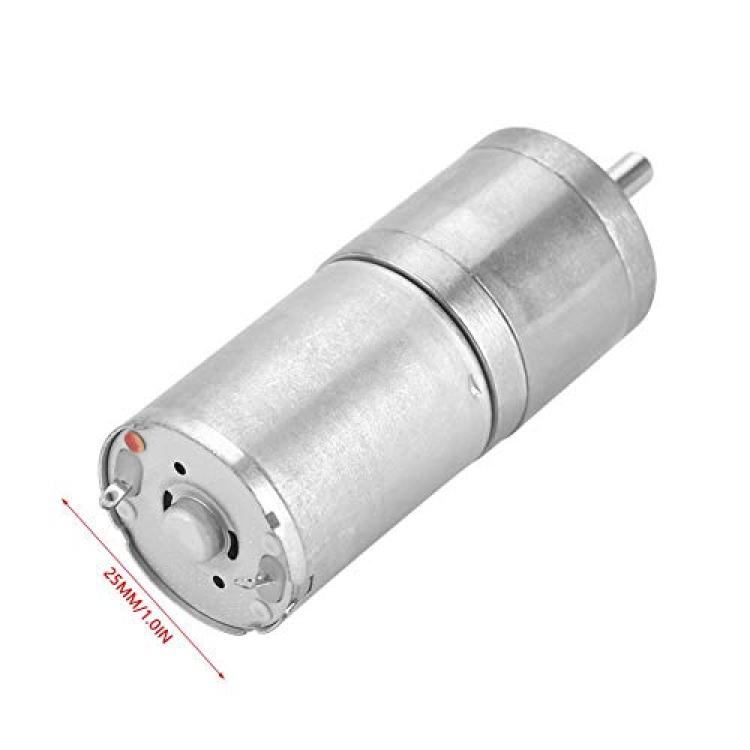

Outer diameter: 25 mm/1.0in
Shaft diameter: 3 mm /0.1in
Shaft length: 10 mm/0.4in
Weight: 96g/3.4oz Voltage Gear ratio    no load load Stall speed Current speed Current toqure Current toqure 12V 1:650 5RPM 150MA 3RPM 70MA 1150gf.cm 2.1A 15.4kgf.cm 12V 1:150 10RPM 170MA 7RPM 100MA 980gf.cm 2.1A 14.8kgf.cm 12V 1:150 30RPM 170MA 25RPM 100MA 770gf.cm 2.1A 12.0kgf.cm 12V 1:200 60RPM 170MA 51RPM 100MA 750gf.cm 2.1A 11.8kgf.cm 12V 1:100 100RPM 150MA 73RPM 185MA 660gf.cm 2.1A 10.5kgf.cm 12V 1:50 200RPM 180MA 165RPM  105MA 580gf.cm 2.1A 8.8kgf.cm 12V 1:30 300RPM 190MA 254RPM 145MA 180gf.cm 2.1A 7.8kgf.cm 12V 1:25 400RPM 190MA 344RPM  145MA 170gf.cm 2.1A 7.7kgf.cm 12V 1:20 500RPM 190MA 460RPM  145MA 150gf.cm 2.1A 7.5kgf.cm 12V 1:10 1000RPM 190MA 820RPM  145MA 88gf.cm 2.1A 7.2kgf.cm
Package list:
1 x gear motor
