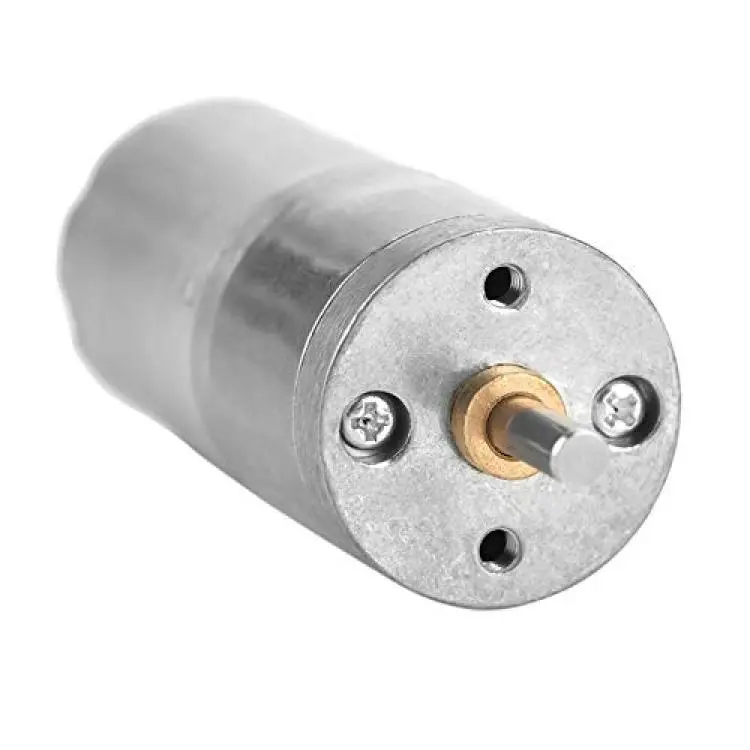

Metal Gear Box Motor,DC 12V 25GA-370 25mm Large Torque, Low Speed and Noise for Electronic Lock, Robot, Electric Curtain, Electric Door, Micro Mixer,etc(12V 300RPM)
Availability: Pre-Order, Inquiry Price
About this product
*Product Dimensions : 2.76 x 1.57 x 1.57 inches; 5.29 Ounces
*Date First Available : June 20, 2019
*Manufacturer : Yanmis
Description
Specification: Model: GA25YN370
Rated power: 3.5 (W)
Product type: Brush dc motor
Rated voltage: 5-12 (V)
Rated current: 0.06 (A)

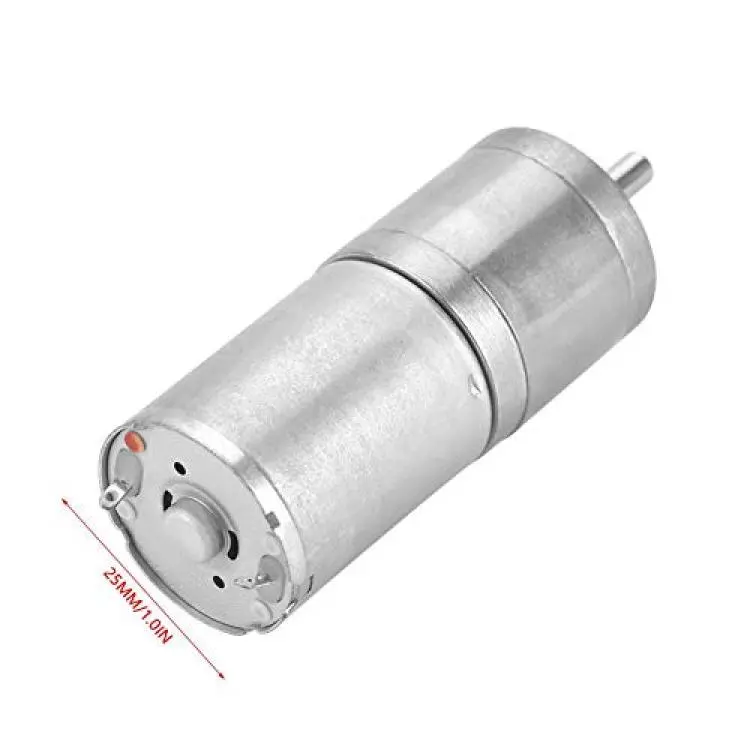

Type(Optional): 12VÂ 5RPM, 12VÂ 10RPM, 12VÂ 30RPM, 12VÂ 60RPM, 12VÂ 100RPM, 12VÂ 200RPM, 12VÂ 300RPM, 12VÂ 400RPM, 12VÂ 500RPM, 12VÂ 1000RPM Outer diameter: 25 mm/1.0in
Shaft diameter: 3 mm /0.1in
Shaft length: 10 mm/0.4in
Weight: 96g/3.4oz Voltage Gear ratio no load load Stall speed Current speed Current toqure Current toqure 12V 1:650 5RPM 150MA 3RPM 70MA 1150gf.cm 2.1A 15.4kgf.cm 12V 1:150 10RPM 170MA 7RPM 100MA 980gf.cm 2.1A 14.8kgf.cm 12V 1:150 30RPM 170MA 25RPM 100MA 770gf.cm 2.1A 12.0kgf.cm 12V 1:200 60RPM 170MA 51RPM 100MA 750gf.cm 2.1A 11.8kgf.cm 12V 1:100 100RPM 150MA 73RPM 185MA 660gf.cm 2.1A 10.5kgf.cm 12V 1:50 200RPM 180MA 165RPM 105MA 580gf.cm 2.1A 8.8kgf.cm 12V 1:30 300RPM 190MA 254RPM 145MA 180gf.cm 2.1A 7.8kgf.cm 12V 1:25 400RPM 190MA 344RPM 145MA 170gf.cm 2.1A 7.7kgf.cm 12V 1:20 500RPM 190MA 460RPM 145MA 150gf.cm 2.1A 7.5kgf.cm 12V 1:10 1000RPM 190MA 820RPM 145MA 88gf.cm 2.1A 7.2kgf.cm
Package list:
1 x gear motor
