25GA-370 DC 12V Micro Gear Box Motor Speed Reduction Geared Motor for Electronic Lock(1000RPM)

25GA-370 DC 12V Micro Gear Box Motor Speed Reduction Geared Motor for Electronic Lock(1000RPM)

Name: 25GA-370 DC 12V Micro Gear Box Motor Speed Reduction Geared Motor for Electronic Lock(1000RPM)
SKU: MM389
Availability: InStock

Product Code: MM389
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Product parameter: Rated voltage: 5-12 (V), Rated current: 0.06 (A), Shaft length: 10 mm/0.4in.

*This DC motor features large moment of force, low speed, and low noise.

*The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.

*This motor is adopted of pure copper wire coil, with low heat and low loss.

*Widely used in electronic lock, robot, electric curtain, electric door, micro mixer, monitoring equipment, pet feeding machine

Description

Specification:
Model: GA25YN370
Rated power: 3.5 (W)
Product type: Brush dc motor
Rated voltage: 5-12 (V)
Rated current: 0.06 (A)

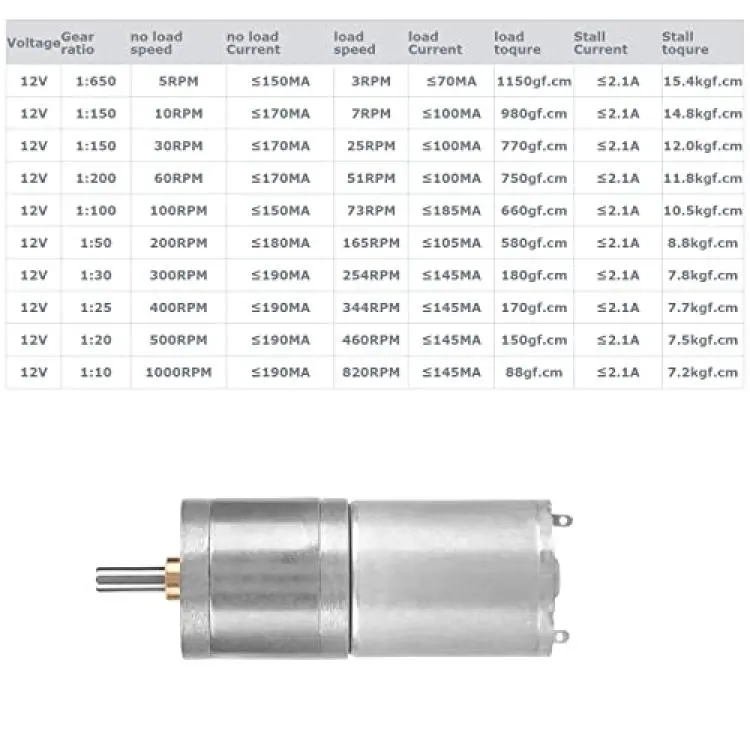

Type(Optional): 12V 5RPM, 12V 10RPM, 12V 30RPM, 12V 60RPM, 12V 100RPM, 12V 200RPM, 12V 300RPM, 12V 400RPM, 12V 500RPM, 12V 1000RPM

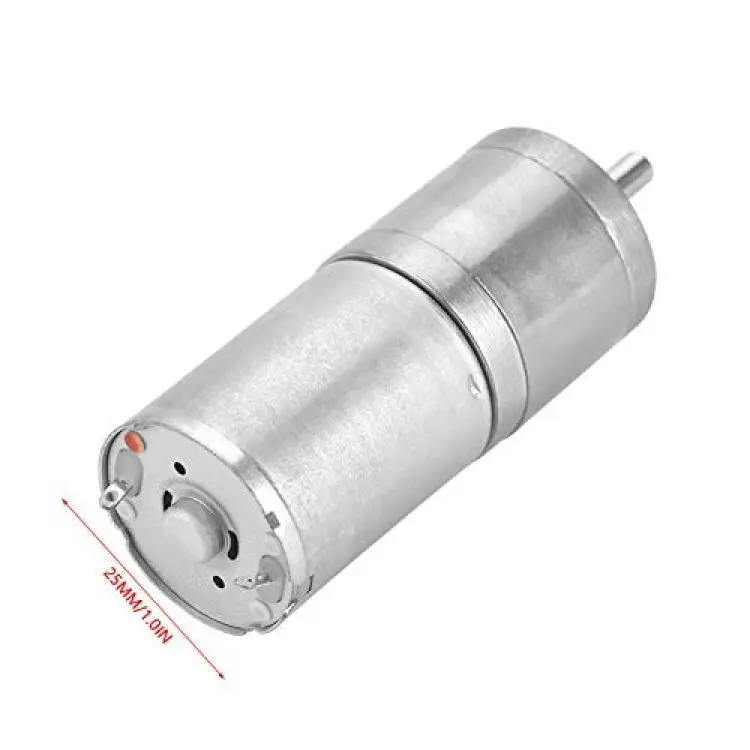

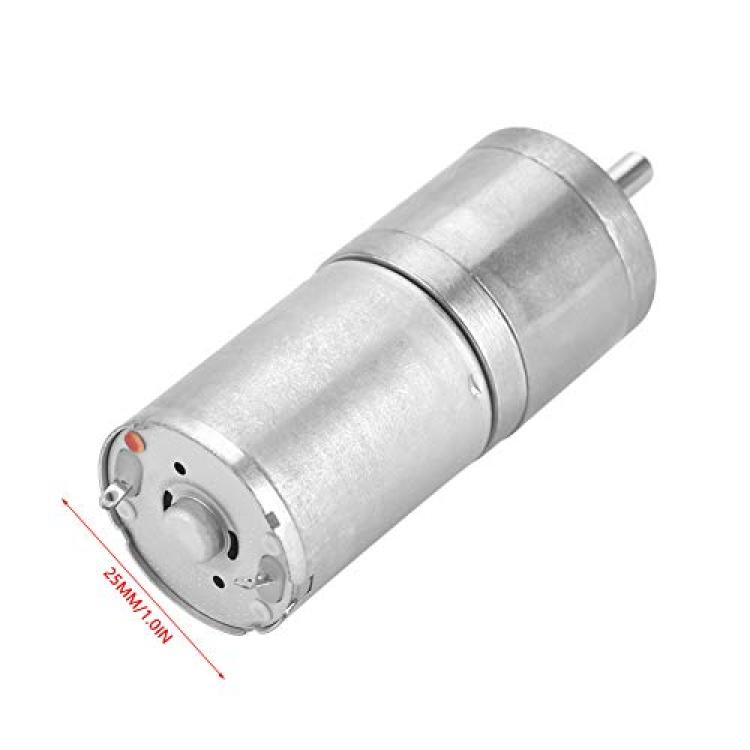

Outer diameter: 25 mm/1.0in
Shaft diameter: 3 mm /0.1in
Shaft length: 10 mm/0.4in
Weight: 96g/3.4oz

Package list:
1 x gear motor

Tags: DC Gear Motor, Micro Gear Box, Speed Reduction Motor, Electronic Lock Motor, 12V Motor, GA25YN370, Robot Motor, Small Gear Motor, Low Noise Motor, 1000RPM Motor
