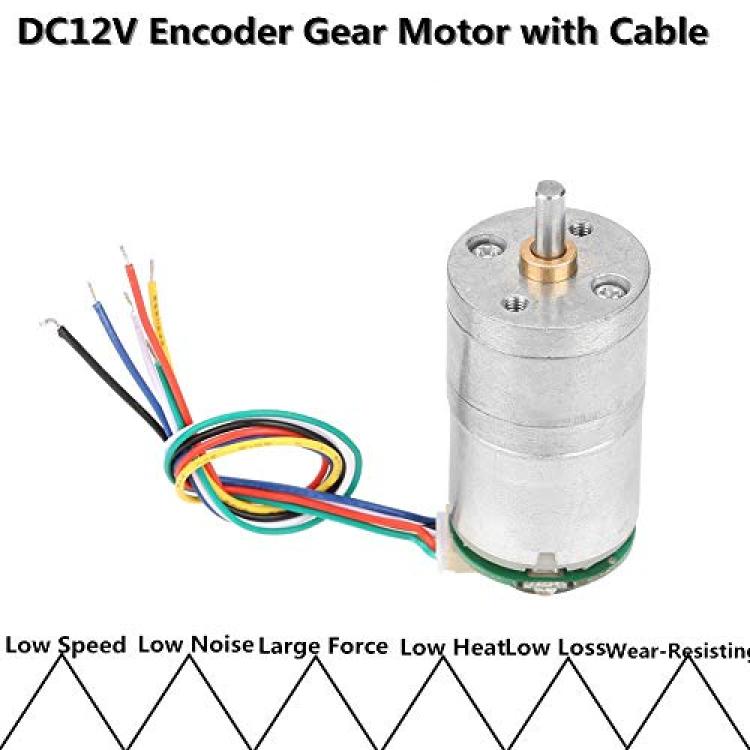

GM25-310 DC Gear Motor, 30 RPM /70 RPM /100 RPM /500 RPM 12V Metal Encoder Reduction Motor Low Speed Low Noise(DC12V 70RMP)

Features:
This DC motor features large moment of force, low speed, and low noise. The gear motor is primarily designed to reduce speed in a series of gears, which in turn creates more moment of force. Applications: perfect for window opener, door opener, mini windlass etc. This motor is adopted of pure copper wire coil, with low heat and low loss.The motor is made of metal gear, wear-resisting, avoid tooth breaking, so with long serving life.


Specification:
Material: metal
Model: GM25-310
Product type: brush dc motor
Rated voltage:12 (V)
Rated power: 2 (W)
Speed:30/70/100/500RMP(Optional)

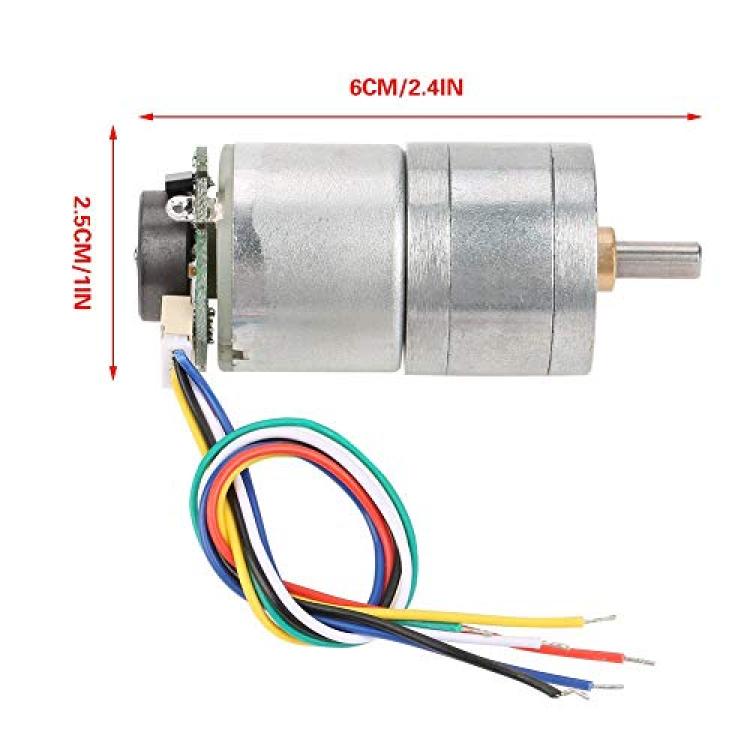

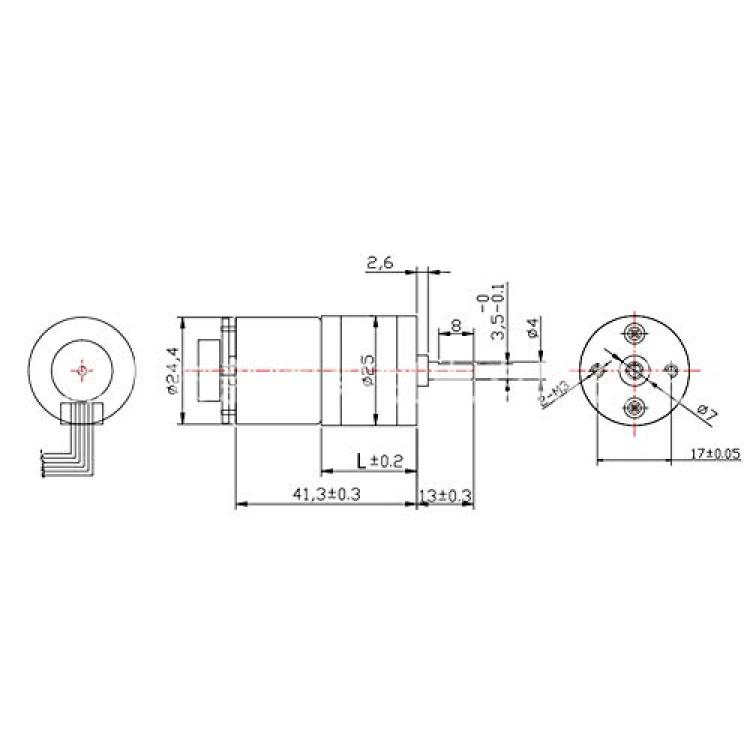

Size: 6*2.5cm/2.4*1in
Weight: Approx.73g/2.6oz
Voltage
Gearratio
No load
Load
Stall
Speed(Optional)
Current Speed Current Momentofforce Current Momentofforce 12V 1:300 30RPM 150mA 28RPM 17mA 850g.cm 2.1A 6.4kg.cm 12V 1:150 70RPM 170mA 65RPM 155mA 680g.cm 2.1A 5.8kg.cm 12V 1:90 100RPM 170mA 91RPM 150mA 550g.cm 2.1A 4.8kg.cm 12V 1:18 500RPM 180mA 455RPM 185mA 380g.cm 2.1A 4.8kg.cm

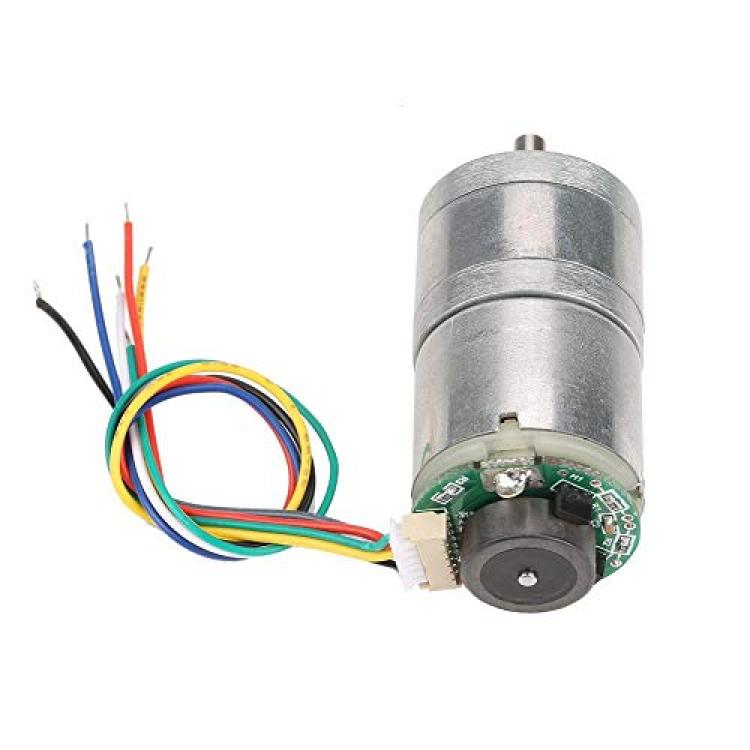

Wire method:
Green:motor wire-
Red:Encoder power supply
Yellow: encoder output A phase
White: encoder output B phase
Black:encoder ground wire
Blue: motor wire +




Package list:
1 x DC Encoder Gear Motorwith cable
