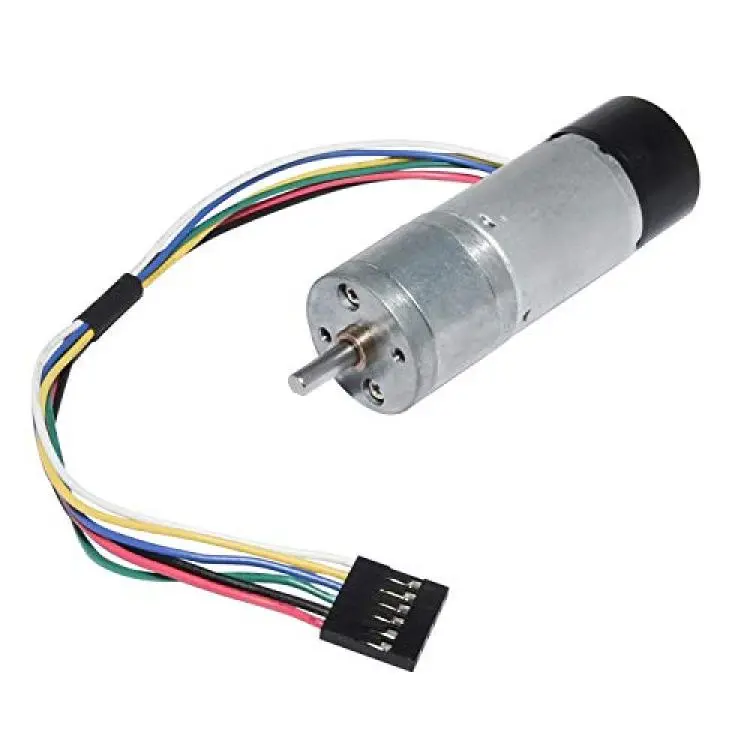

Encoder Metal Gearmotor 12V DC High Speed 600RPM Gear Motor with Encoder for Robotics

About this product

*✔Product type: DC Gear motor with two-channel Hall effect encoder;Rated Voltage: 12V; No-Load Speed: 600RPM; No-Load Current: ≤ 0.15A;Rated Torque: 0.25kg.cm;

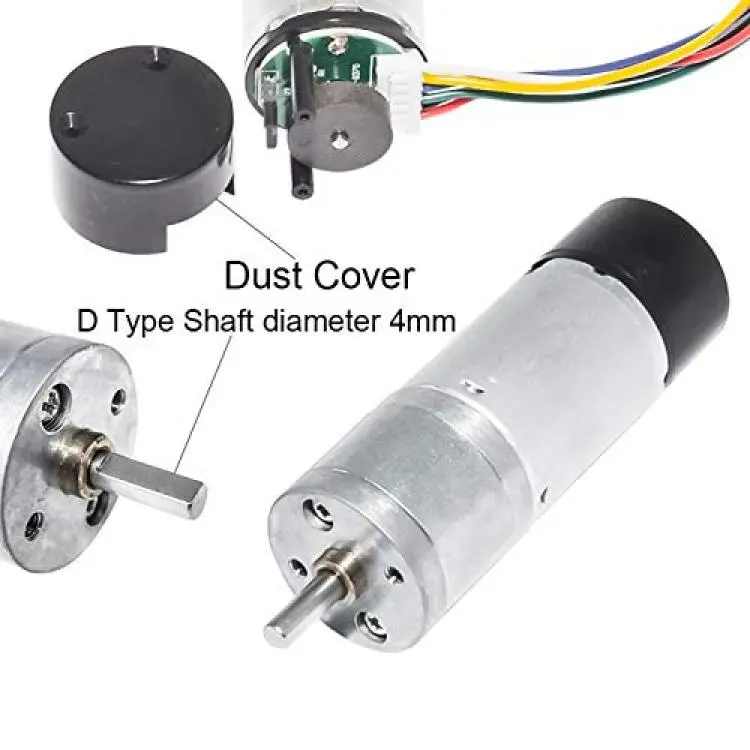

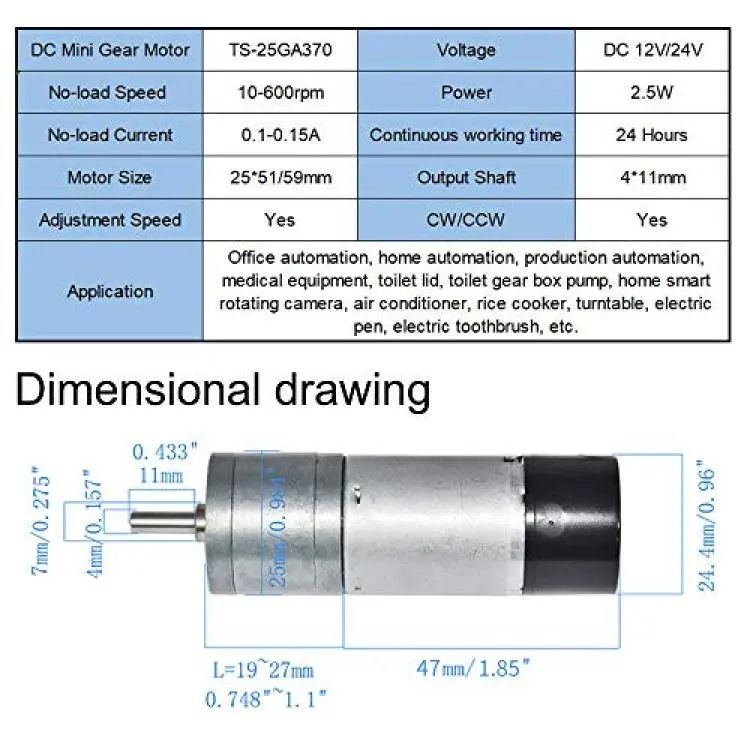

*✔Main Body Dimensions:74.8 x 25mm / 2.95in x 0.99in (L*D); Out Shaft Dimensions: 11 x 4mm / 0.433 x 0.1575in (L*D) with 10 x 0.5mm / 0.39 * 0.017inches flat cut off;

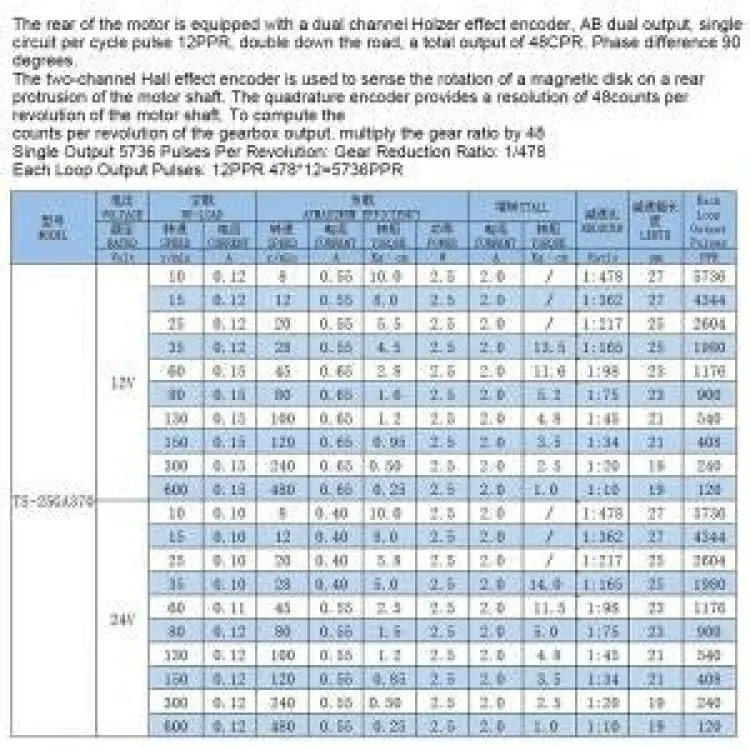

*✔Single Output 120 Pulses Per Revolution: Gear Reduction Ratio: 1/10, Each Loop Output Pulses: 12PPR 10*12=120PPR;

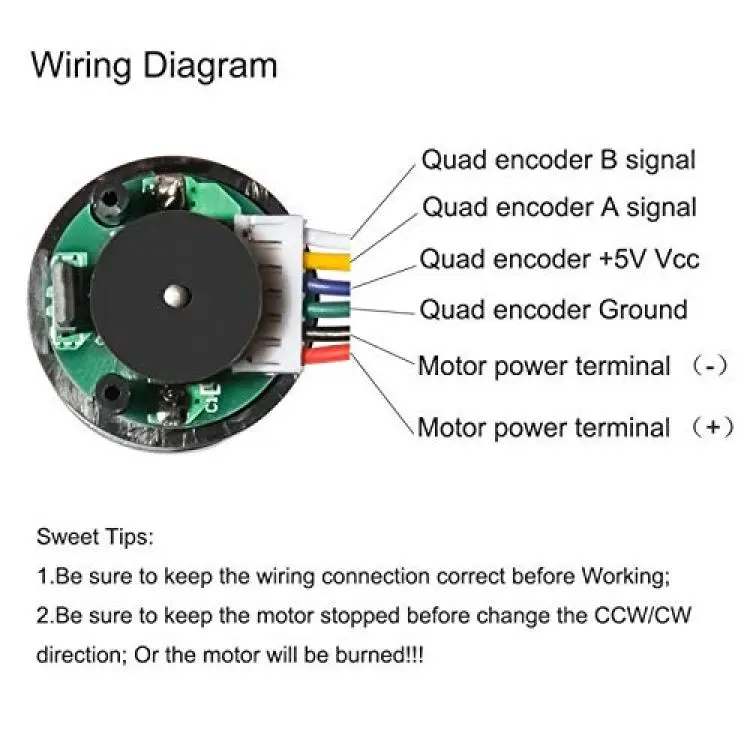

*✔Wiring Diagram: Red - Motor power terminal (+);Black - Motor power terminal(-);Green - Quad encoder Ground;Blue - Quad encoder +5V Vcc;Yellow - Quad encoder A signal;White - Quad encoder B signal;

*✔Application:Suit for Projects Such as Robotics,RC Car Model,Custom Servo, Arduino and 3D Printers,DIY Engine Toy.
