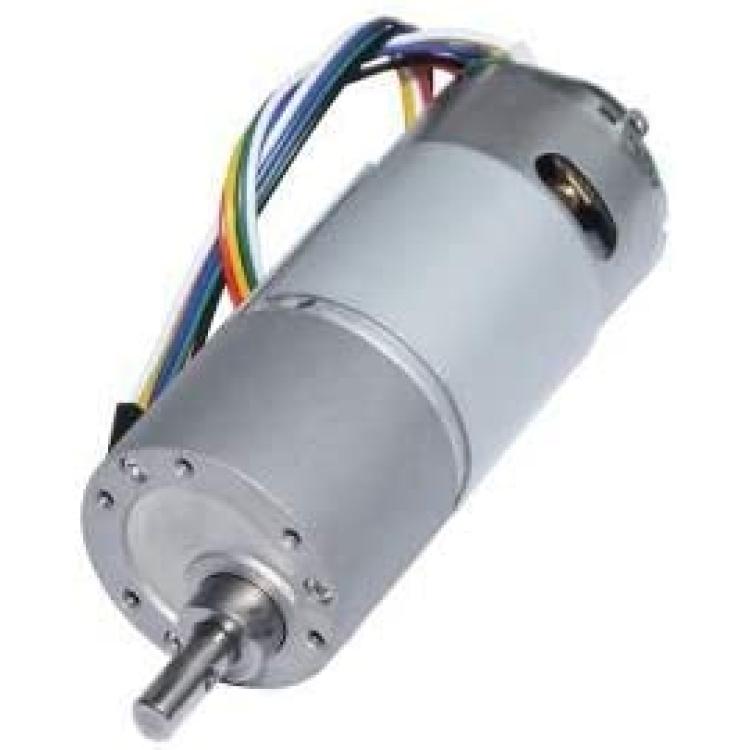

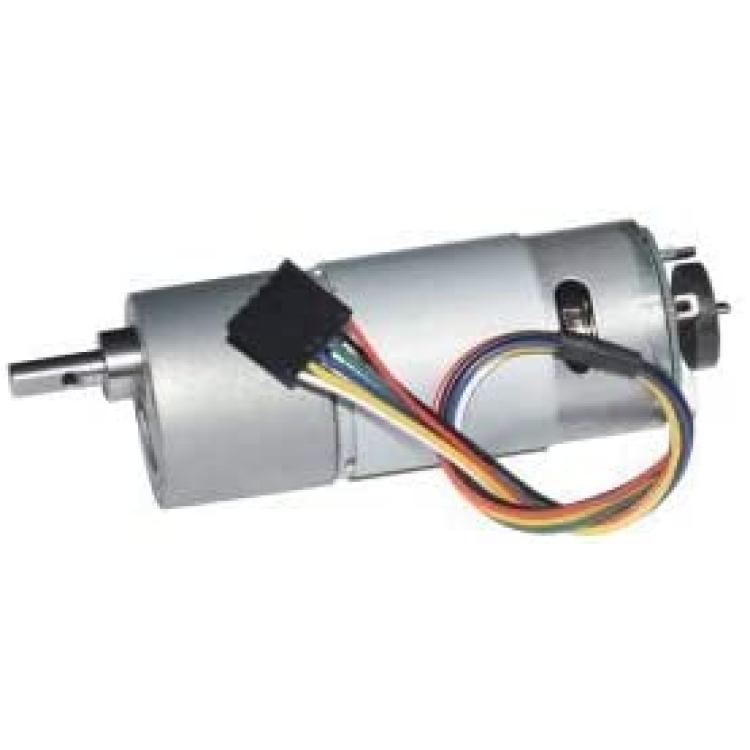

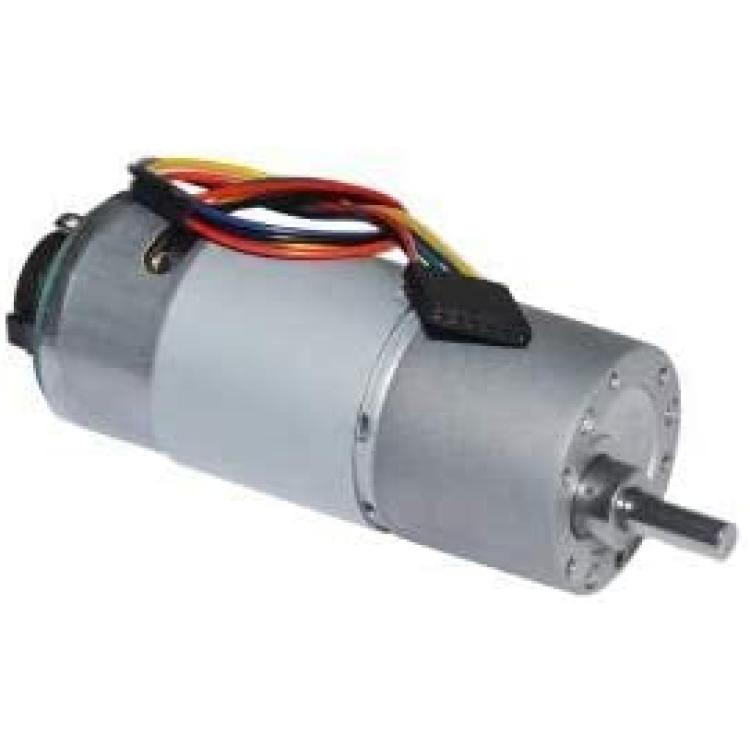

Bemonoc Encoder Metal Gearmotor 12V DC High Speed 120RPM Gear Motor with Encoder for Robotics

About this product

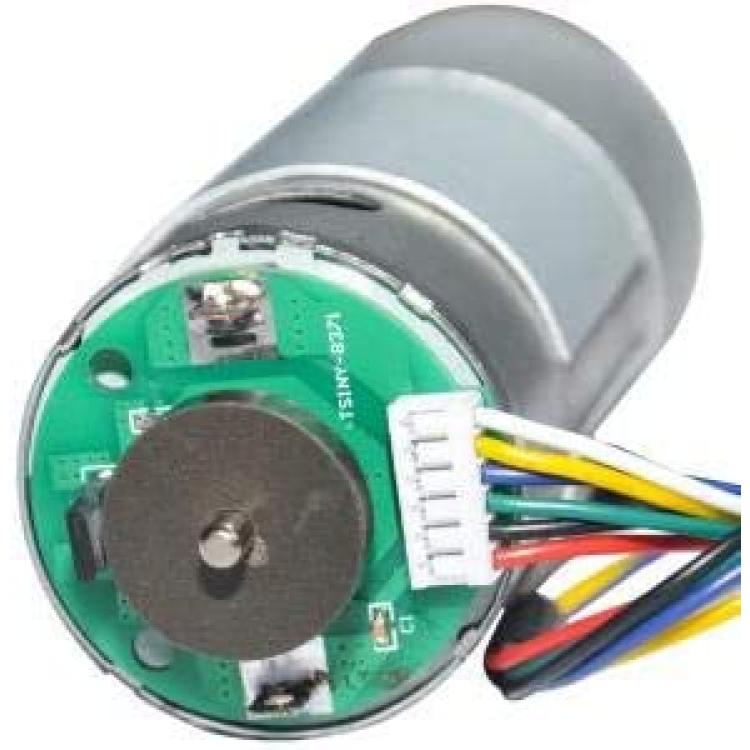

*✔Product type: DC Gear motor with two-channel Hall effect encoder;Rated Voltage: 12V; No-Load Speed: 120RPM; No-Load Current: ≤ 0.38A;Rated Torque: 12.6kg.cm;

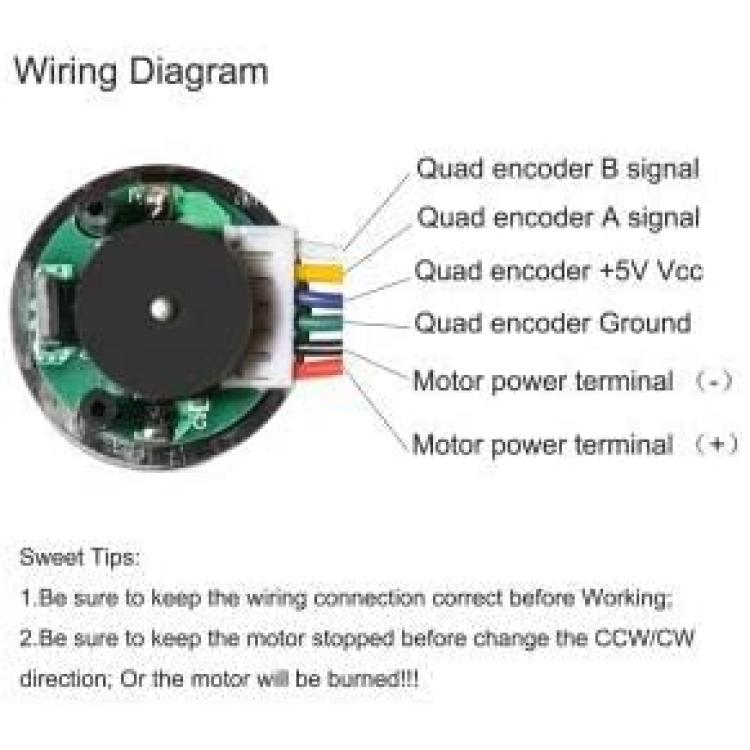

*✔Wiring Diagram: Red - Motor power terminal (+);Black - Motor power terminal(-);Green - Quad encoder Ground;Blue - Quad encoder +5V Vcc;Yellow - Quad encoder A signal;White - Quad encoder B signal.

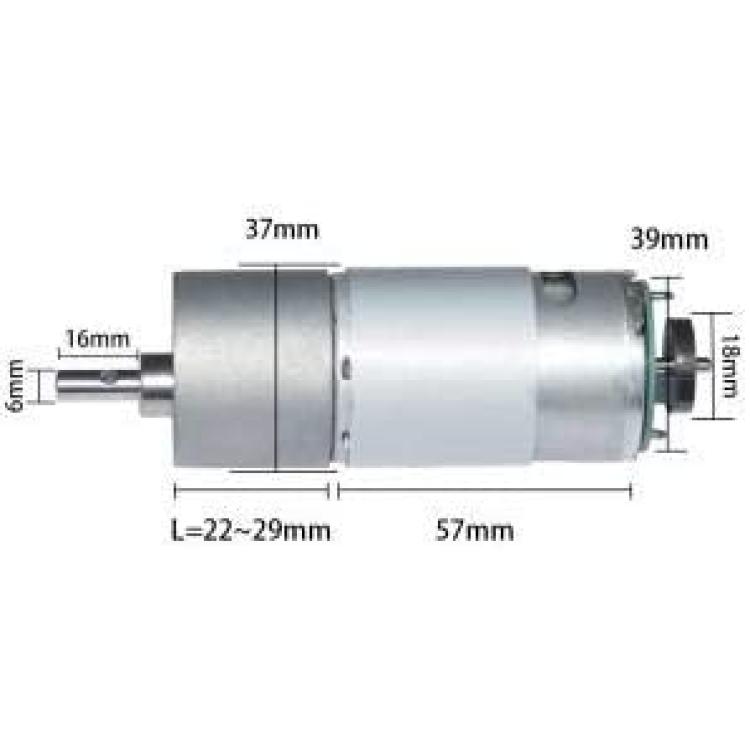

*✔Notice: Before you purchase it, pls confirm dimensions and rated torque in the picture!

*✔Application:Suit for Projects Such as Robotics,RC Car Model,Custom Servo, Arduino and 3D Printers,DIY Engine Toy.

*✔Product type: DC Gear motor with two-channel Hall effect encoder;Rated Voltage: 12V; No-Load Speed: 120RPM; No-Load Current: ≤ 0.38A;Rated Torque: 12.6kg.cm;
