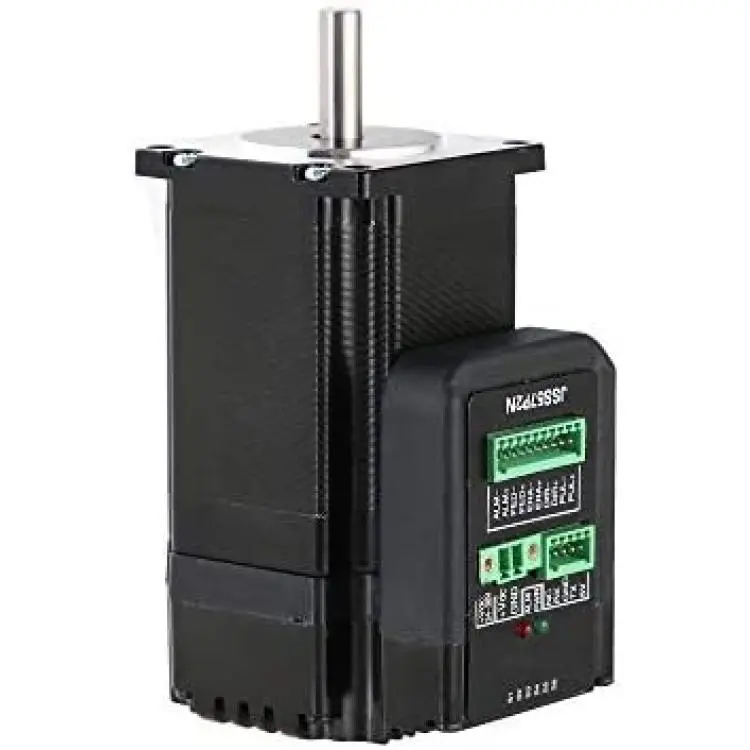

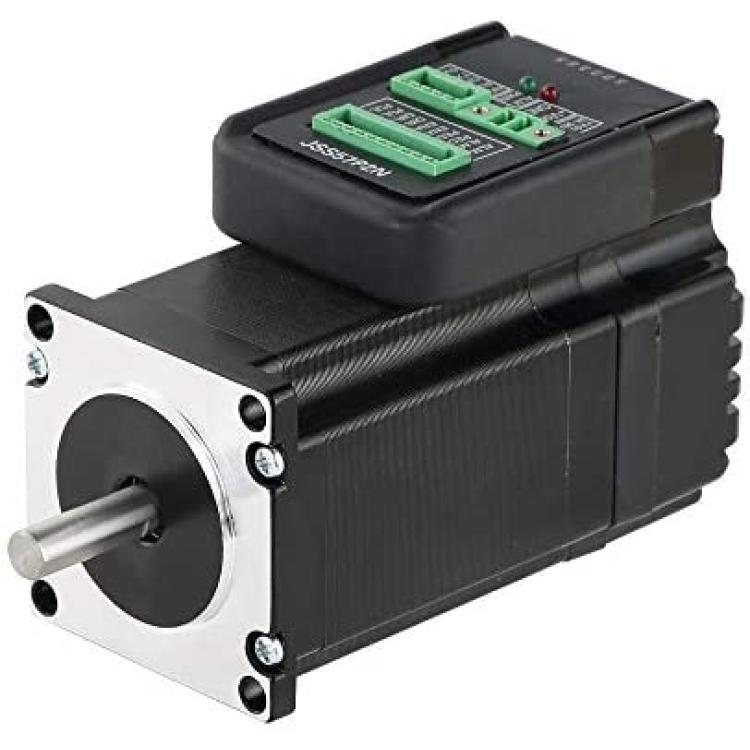

JSS57P2N Nema23 2N.m Closed Loop Stepper Motor Integrated Digital Hybrid Servo Drive System 24-36VDC RS232 with 1000 encoder line for Robots,Cutting,Marking,CNC Router Engraving Machine
About this product
*Model:JSS57P2N,it is a new motor-driven integrated hybrid servo drive system with communication function.Using a new generation of 32-bit DSP control and closed-loop control, it can prevent out-of-step and ensure the accuracy of the product;
*Support DC Power Supply:DC24~48V, recommended DC36V;Current:4.2A

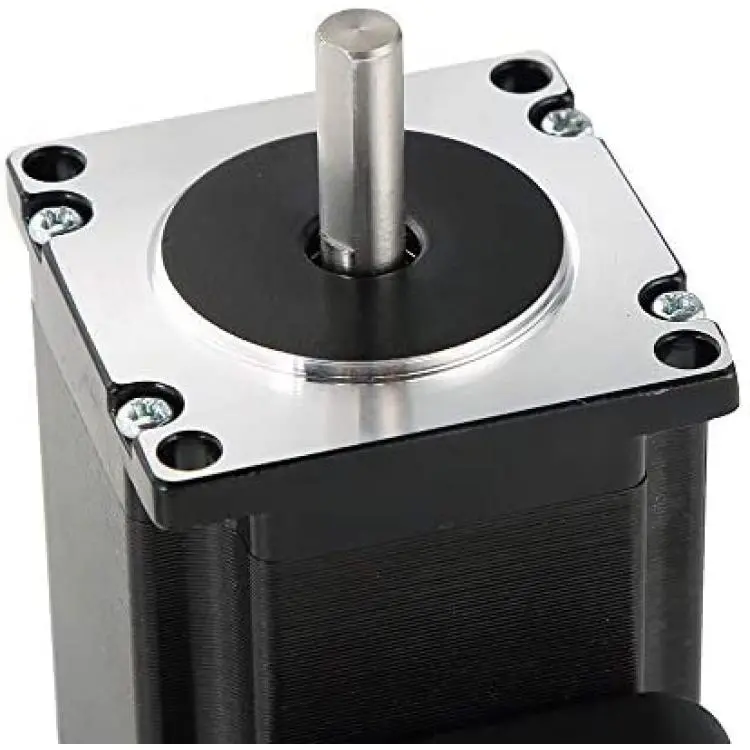

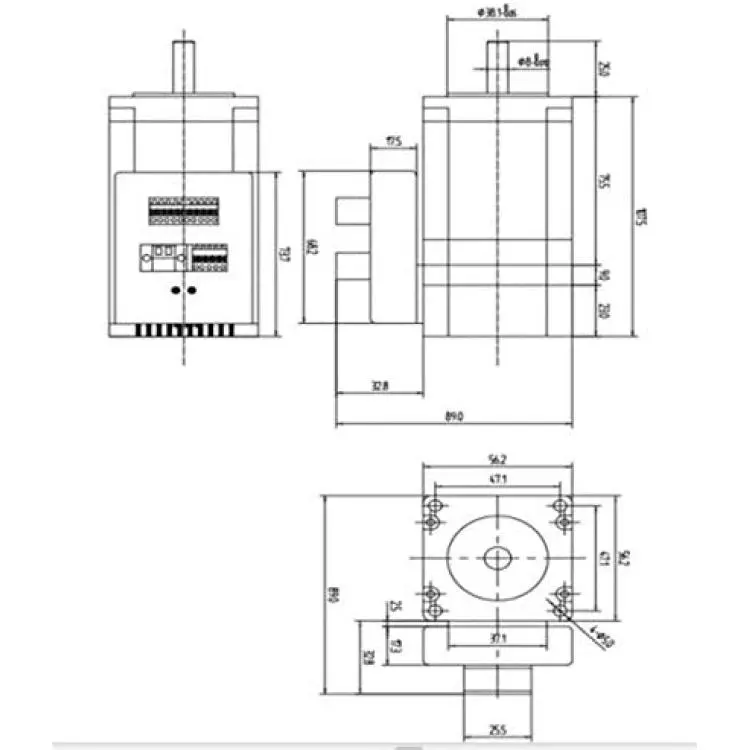

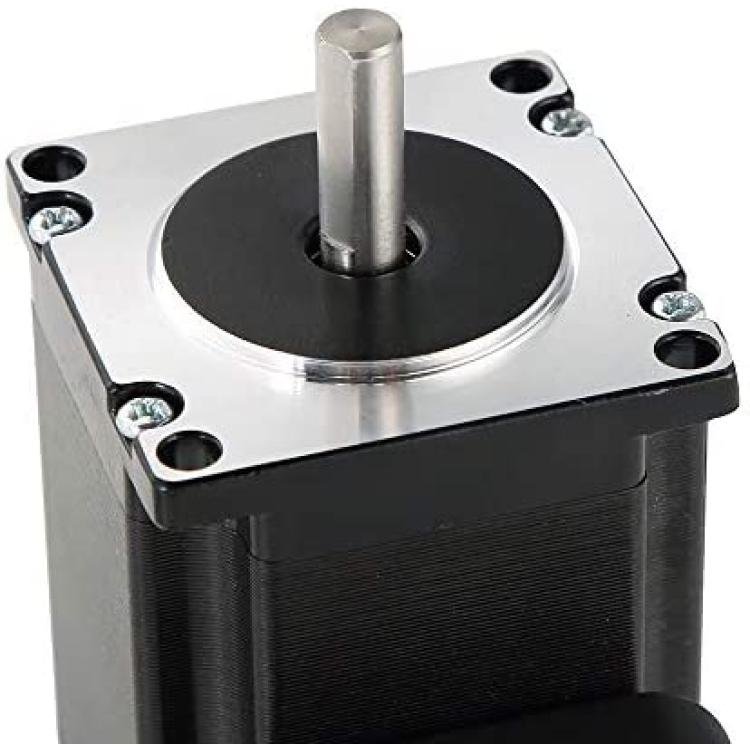

*Type:Hybrid;Encoder line number:1000;Motor length:76mm;Shaft Diameter:8mm;Total length:107mm;Lead wire:4pcs;
*Suitable for robots, textile machinery, special industrial sewing machines, wire stripping machines, marking machines, cutting machines, laser phototypesetting, plotters, CNC machine tools, engraving machines etc
*The default work is in closed loop mode, no loss of step, and it also supports working in open loop mode.；Support modbus RTU protocol on RS232, position and speed control controlled by communication；
Description
Package include

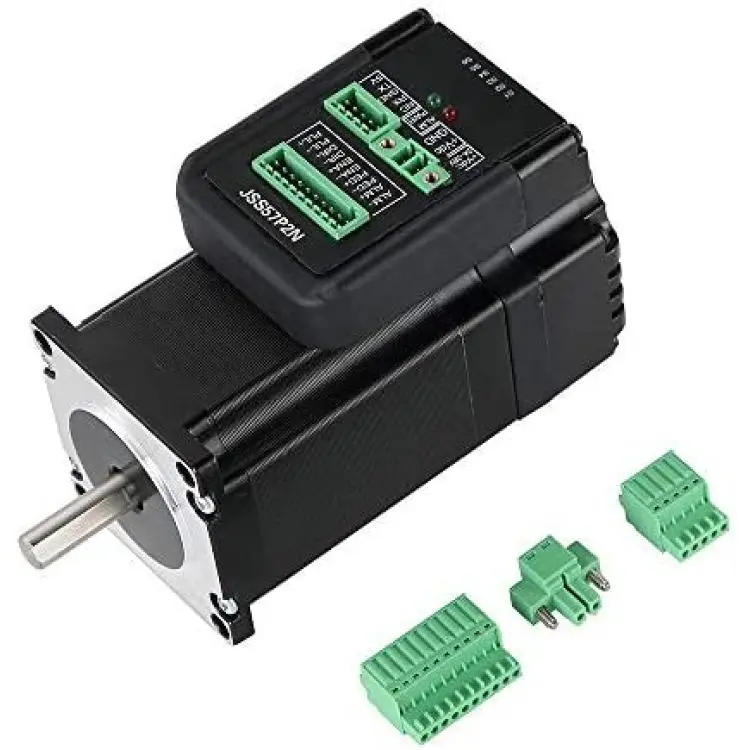

Package include1 x JSS57P2N Integrated Closed loop Stepper Motor
1 x JSS57P2N Integrated Closed loop Stepper MotorEnglish user manual
English user manualControl signal port
Characteristics

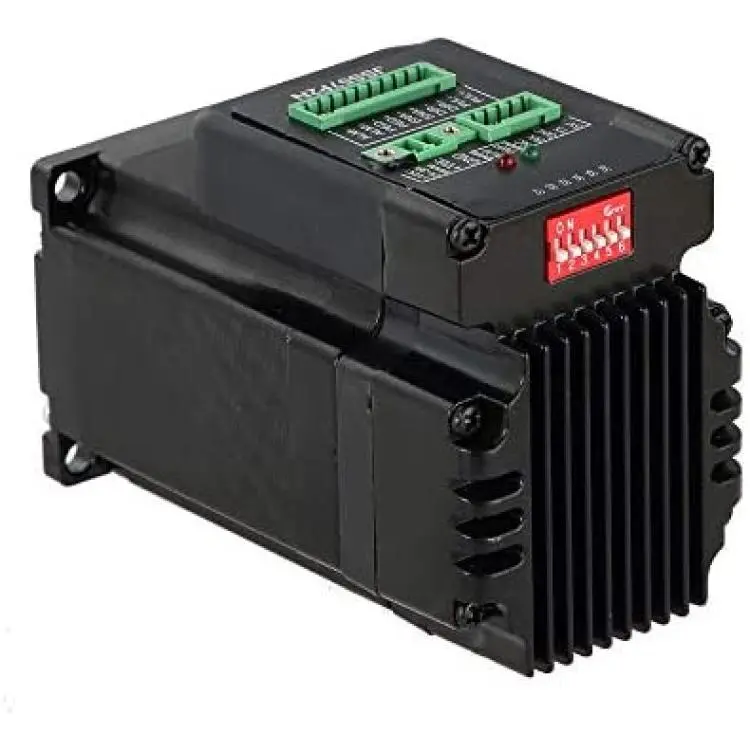

JSS57 uses a six-digit dial switch to set the filter time, motor rotation direction and subdivision accuracy. SW1, filter time setting. The default on=3ms, off=25ms, the larger the filtering time, the smoother the motor runs and the lower the noise. Moreover, in the on state, the filtering time can be flexibly set by the upper computer software setting. SW2, motor rotation direction setting. On=CW,off=CCW. SW3?SW4?SW5?SW6?Subdivision setting Adopt advanced 32-bit motor control dedicated DSP chip and vector closed-loop control technology; The default work is in closed loop mode, no loss of step, and it also supports working in open loop mode. Increase the output torque and running speed of the motor The current level is intelligently adjusted according to the load, reducing the temperature rise of the motor, locking the current, and adjusting the closed-loop peak current. Adapt to various mechanical load conditions (including low-rigidity loads such as pulleys and pulleys) without adjusting the gain parameters; The position command smoothing filter can be set, the motor runs smoother, the vibration is lighter, and the acceleration and deceleration dynamic performance is improved. Zero-speed static capability without vibration after positioning? Support single and double pulse input, pulse response frequency up to 200KHZ? Support 15 fixed subdivisions, and support software to set any subdivision (200~65535)? Support modbus RTU protocol on RS232, position and speed control controlled by communication? Support monitoring of motor operating conditions, including speed, position deviation, bus voltage, operating current, etc. Voltage range: DC+24V~48V? With overcurrent, overvoltage, positional tolerance and other protection?
