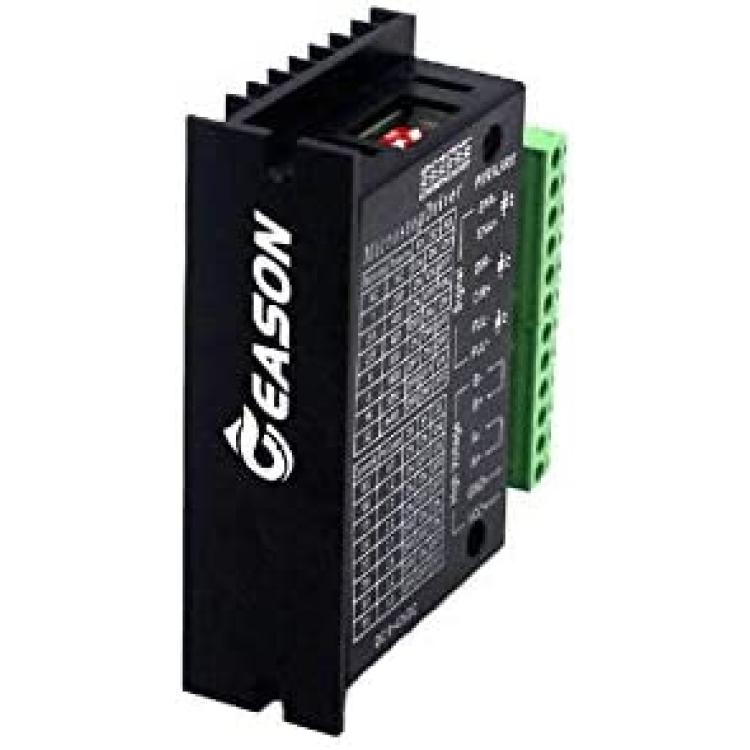

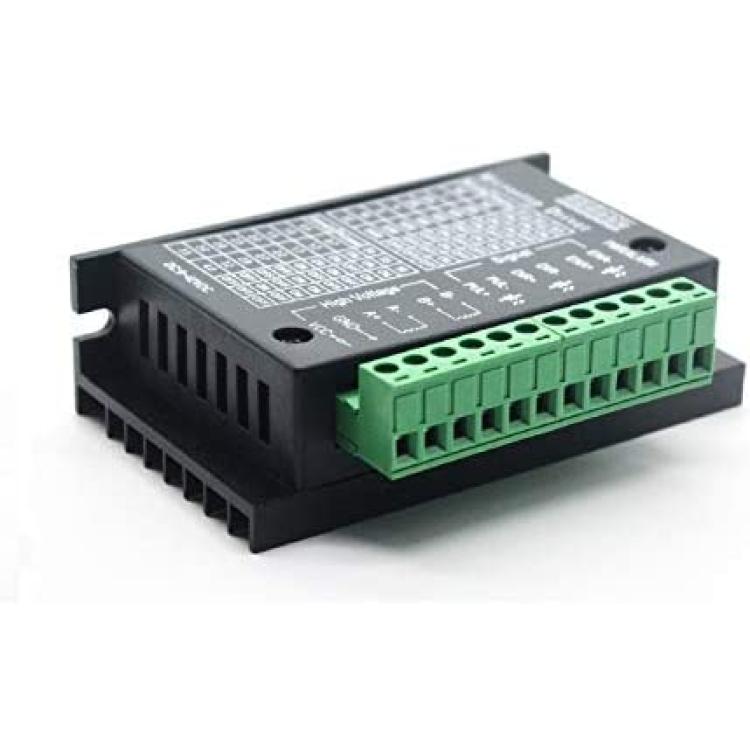

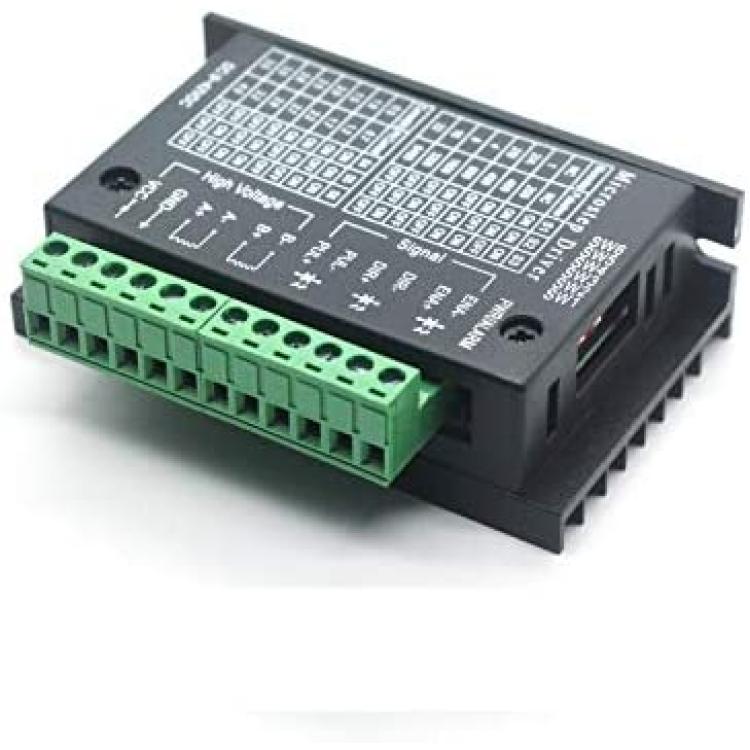

EASON Stepper Motor Driver TB6600 4A DC9-42V 32 Subdivision for Nema 17, 23 Series Stepper Motor CNC Controller single Axis Hybrid MicroStepping
About this product
*This driver is an upgraded version of TB6600 and with plastic cover.
*The subdivision is increased to 32 subdivision, which is suitable for high subdivision.
*Suitable for drive Two-phase stepping motor dynamic voltage 9V to 42V, the maximum drive current is less than 4A.
*Suitable for step motor:NEMA(17,23) 42, 57 type 2 phase 4 phase (4 / 6 / 8 wires)
*Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, and pick-place devices.
Description
TB6600 4A 9-42V 32 Subdivision Stepper Motor Driver CNC:

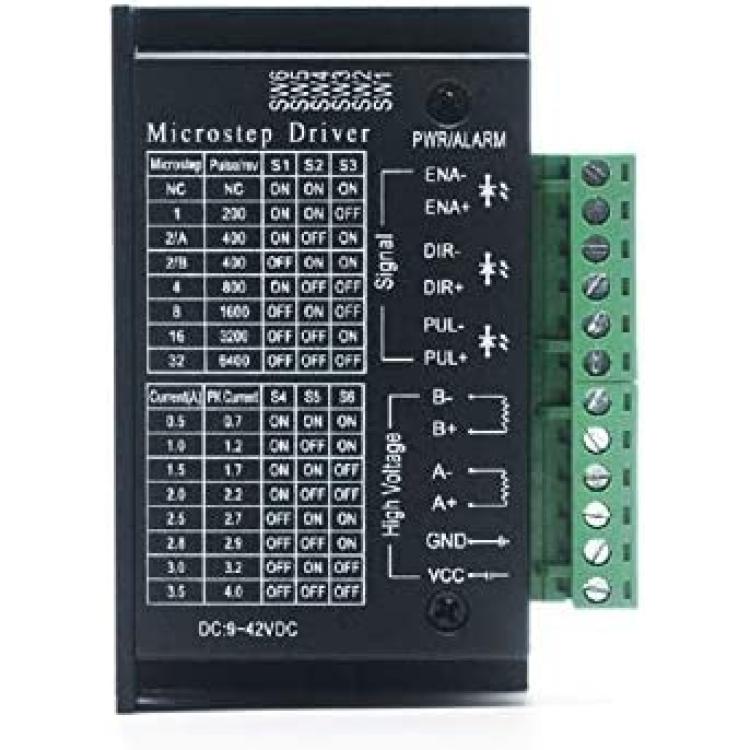

This driver uses a 6-bit dial switch, the subdivision of this version is increased to 32 subdivision. PRECISION!
This driver is an upgraded version of TB6600 and with plastic cover. SMALLER!

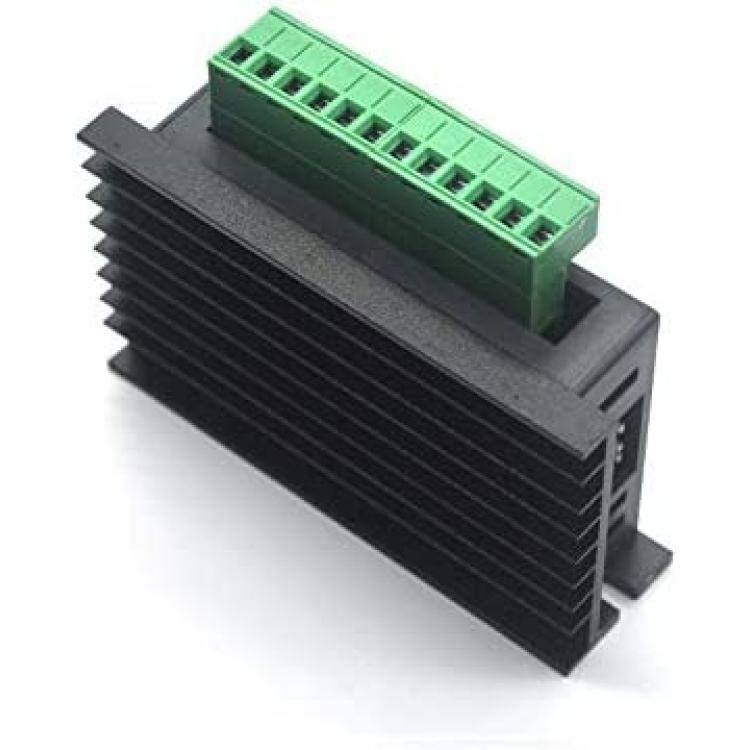

This driver uses an alumium alloy base. GOOD HEAT DISSIPATION!
The TB6600 is a two-phase bipolar stepping motor driver using a PWM chopper.The clock in decoder is built in. Fabricated with the BiCD process, rating is 30Vmax / 4.0 A .
FEATURES
Description

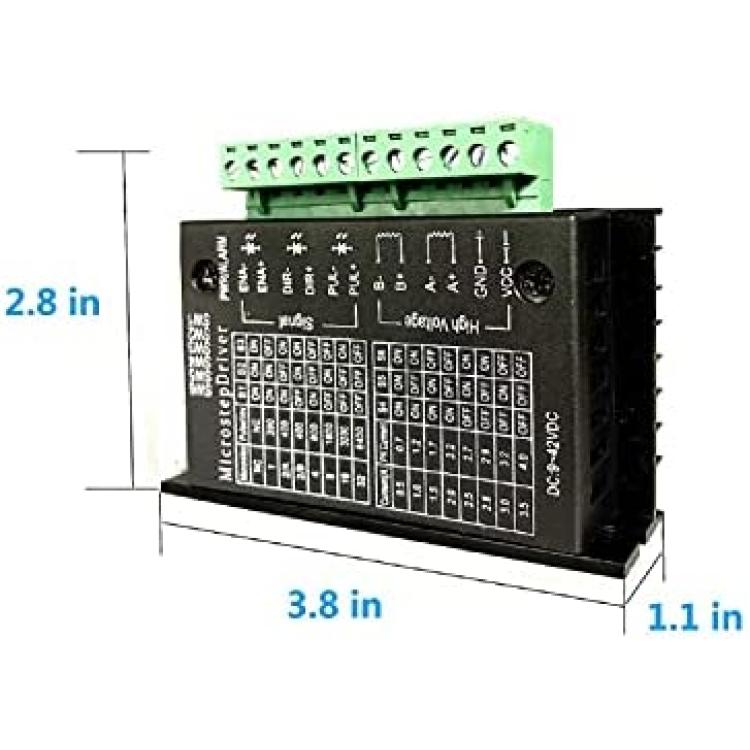

This driver is an upgraded version of TB6600 and with plastic cover.The subdivision is increased to 32 subdivision, which is suitable for high subdivision.Suitable for step motor:NEMA(17,23) 42, 57 type 2 phase 4 phase (4 / 6 / 8 wires).Black Rugged All metalic Enclosure and Large Black Aluminium Heat SinkMounting Holes on Heat Sink for Mounting the Drive in Machine PanelsHigh efficiency motor current control mechanism ADMD (Advanced Dynamic Mixed Decay)Weight 122g5.75 x 3.86 x 1.18 inchesPWM constant current drive single-chip bipolar sinusoidal micro-step stepping motor driverSelectable excitation mode (1/1, 1/2, 1/4, 1/8, 1/16 and 1/32 step)Single power supplyAverage current control (in 8 steps from 0.5A to 3.5A), two-phase sinusoidal current drive outputOptically isolated inputsOver voltage, under-voltage, over-current, and short-circuit protectionWith auto standby function (low motor heat in standby)LED indicator for Power ON / Alarm (error)High starting speedHigh-speed torque
