Usongshine Stepper Motor Driver TB6600 4A 9-42V Nema 17 Stepper Motor Driver CNC Controller +17HS4401 Motor Single Axes Phase Hybrid Stepper Motor for CNC/42 57 86 Stepper Motor

About this product

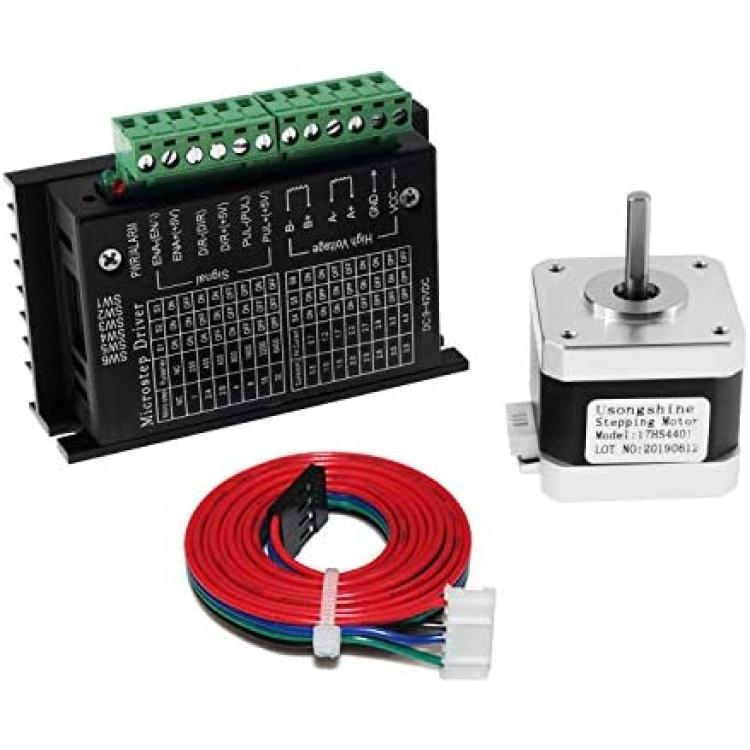

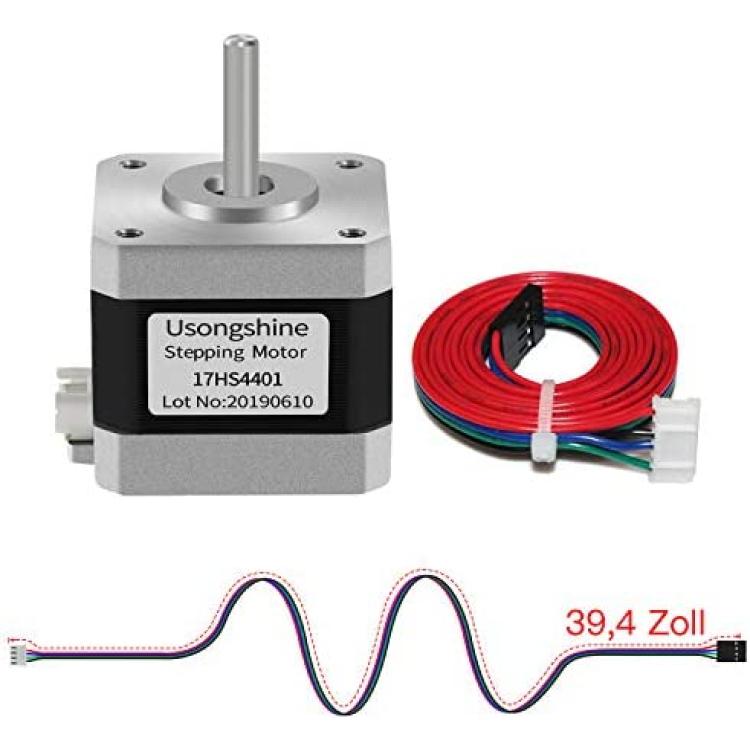

*✿Package included✿: 1 x Stepper Motor Driver,1 x Stepper Motor, 1 Wire.

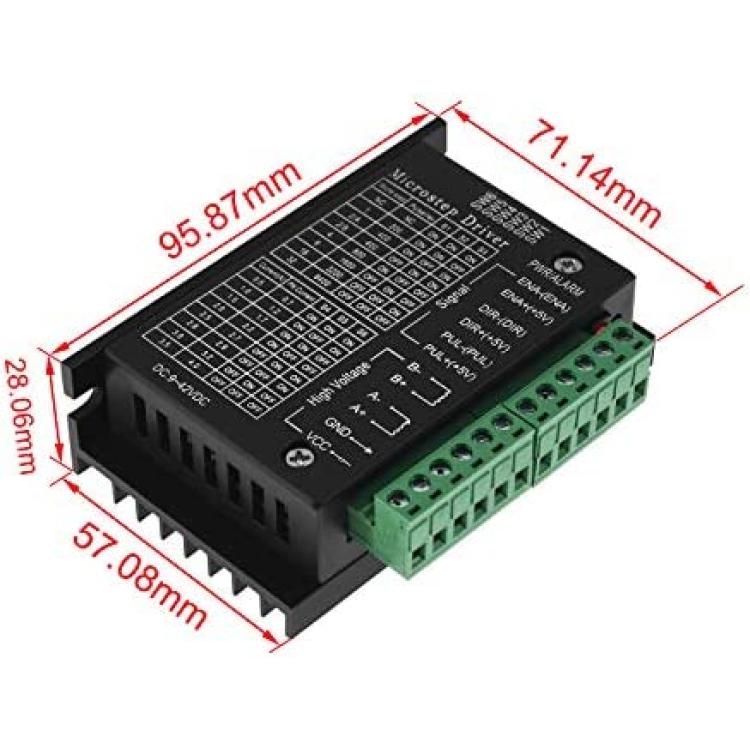

*✿Stepper Motor Driver✿: 9V-42V DC power supply, H bridge bipolar constant phase flow drive. The maximum 4.0A of the eight kinds of output current.

*✿The largest 32 subdivision of the 6 models are optional; Suitable for 4Wires, 6 wires and 8 wires stepper motor. it can control 2 phase stepper motor forward and reverse rotation, With 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode.

*✿Protect form✿: Energy-saving semi-automatic current lock function, built-in temperature protection and over current protection, under voltage protection, Preventing reverse.

*✿Suitable for a wide range of stepping motors of Nema 17, 23 and 24 can used in various kinds of machines, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, pick-place devices and so on.
