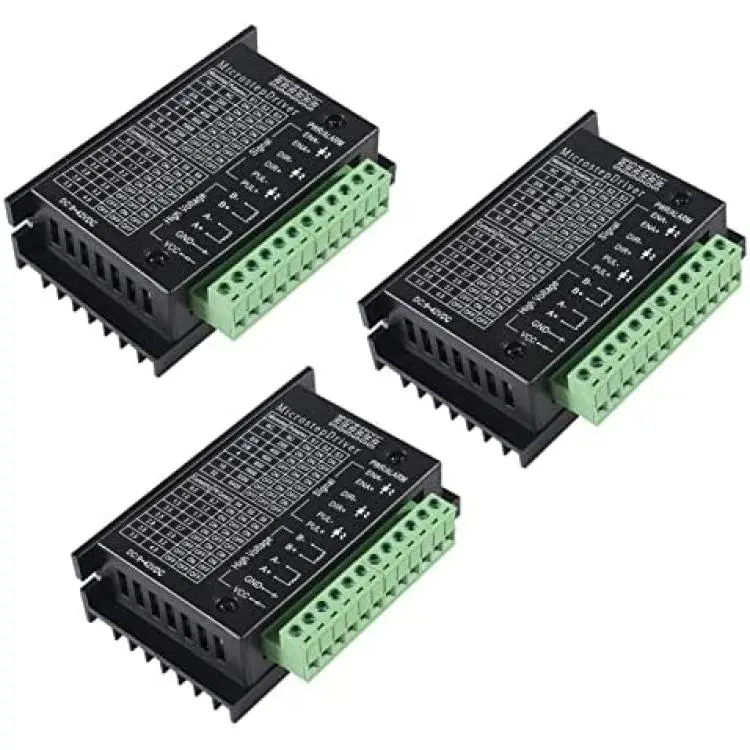

3Pcs TB6600 4A Stepper Motor Driver 9-42V Stepper Motor Driver CNC Controller Nema tb6600 Single Axes Hybrid Stepper Motor for CNC Engraving Machine
About this product
*Stepper motor driver TB6600 current and voltage: output current: 0.5A-4.0A, the maximum output current is 4.0A; input voltage: 9-42VDC, external signal 3.3-24V can be connected directly without series resistor
*TB6600 support set 7 kinds of subdivisions (1/2A/2B/4/8/16/32) through 6-bit DIP switch, and 8 gear output current (0.5A/1.0A/1.5A/2.0A/2.5A/2.8A/3.0A/3.5A)
*Stepper motor driver not only with large area heat sink and automatic semi-flow to reduce heat but also with overheat circuit protection
*TB6600 suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, and pick-place devices.
*TB6600 CNC Controller support interface adopts high-speed optocoupler isolation also protection for overheat, overcurrent, undervoltage lockout, input voltage protection against reversal, etc. Safer.
Description
Input Current: 0~5A
Output Current: 0.5~4.0A
Control Signal: 3.3~24V (no string resistance required)
Power (MAX): 160W
Micro Step: 1, 2/A, 2/B, 4, 8, 16, 32
Temperature: -10?45?
Humidity: No condensation
Bipolar phase-driven phase-driven phase-flow bridge H
The maximum output current of 4.0A, eight optional
Subdivision accuracy 1-32 subdivision optional, six sub-mode types available
The input signal is high-speed optical insulation
Single anode pattern common wrist interface
Offline, perform function
Semi-closed chassis can accommodate more demanding environment
Provide current semi-automatic energy lock function
Built in thermal protection and overhead protection
Package include
3 x TB6600 stepper motor driver
