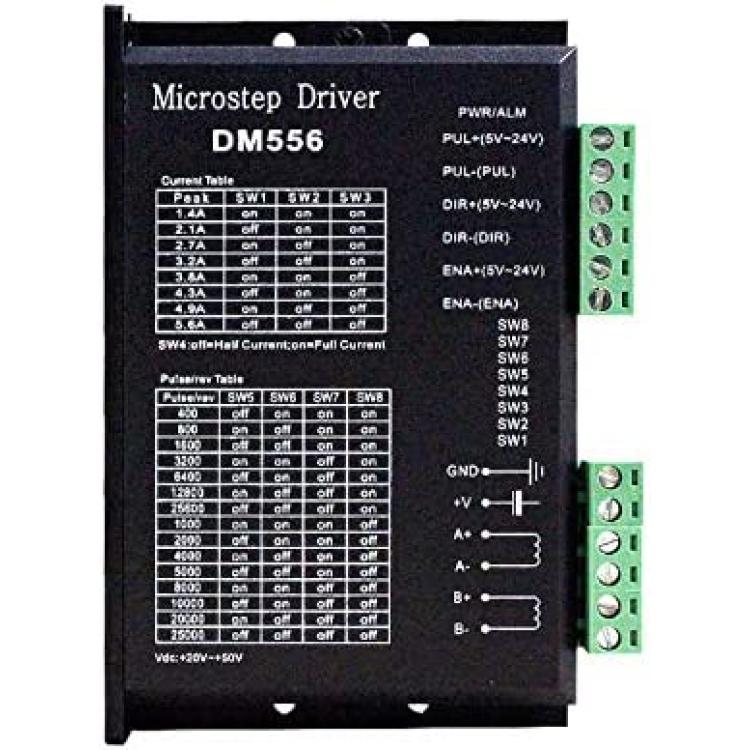

EASON CNC Stepper Motor Driver DM556 DC20-50V 2-Phase 128 Subdivision for Nema 17, 23, 42 Series Stepper Motor CNC Controller single Axis Hybrid MicroStepping
About this product
*Suitable for Nema 17, Nema 23 and Nema34 Stepper Motor，2-phase hybrid stepper motors(Outer diameter: 42,57,86mm).
*Suitable for drive Two-phase stepping motor dynamic voltage 20V to 50V, the maximum drive current is less than 5.6A.
*The maximum drive subdivision is 128, more accurate.
*Suitable for any small-and-medium automatic equipment with CNC controller, such as X-Y-Z tables, labeling machines, laser cutters, engraving machines, and pick-place devices.
*PLEASE NOTE: if there is any problem, please feel free to contact us, each defect items could be refunded or reshipped, we will try out utmost to support you.
Description
Features
- High performance, cost-effective
- Supply voltage up to +50 VDC
- Output current up to 4.2A
- Self-adjustment technology
- Pure-sinusoidal current control technology
- Pulse input frequency up to 300 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- 15 selectable resolutions in decimal and binary, up to 25,600 steps/rev
- Suitable for 2-phase and 4-phase motors
- Support PUL/DIR and CW/CCW modes
- Short-voltage, over-voltage, over-current protections
Applications
Suitable for a wide range of stepping motors, from NEMA size 17 to 34. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Particularly adapt to the applications desired with low noise, low heating, high speed and high precision.
