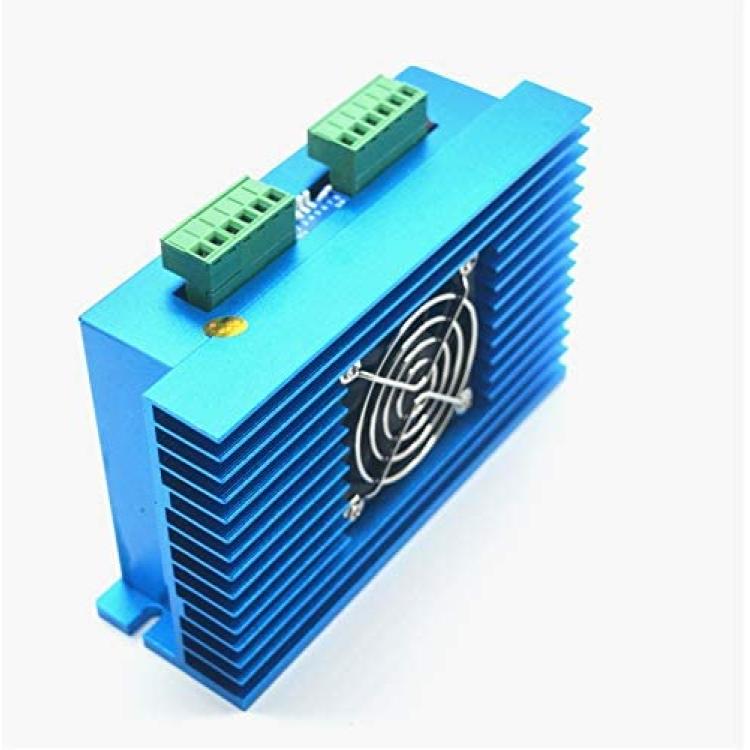

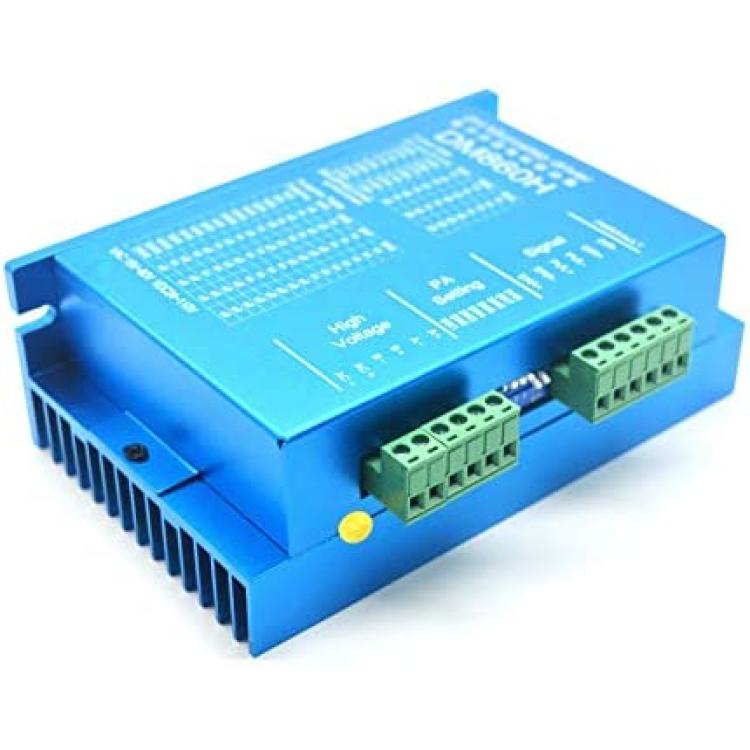

EASON Digital Stepper Motor Driver DM860H 128 Subdivision DC24-110V 6.0A for CNC Cutting Driver for Nema 23 to 42 Stepping Motors (Blue)
About this product
*A fully digital stepper drive,top-level quality, affordable price.
*It can drive a stepper motor at much lower noise, lower heating, and smoother movement.
*The subdivision is increased to 128 subdivision, which is suitable for high subdivision.
*Suitable for drive Two-phase stepping motor dynamic VDC:24V to 110V or VAC:18V to 80V, the maximum drive current is less than 7.2A.
*Suitable for step motor:NEMA23 to 42, type 2 phase 4 phase (4 / 6 / 8 wires).
Description
Features
Anti-Resonance provides optimal torque and nulls mid-range instability.
Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
15 selectable microstep resolutions
Soft-start with no “jump” when powered on
Input voltage 18-80VAC or 24V—110VDC
8 selectable peak current including 2.40A, 3.08A, 3.77A, 4.45A, 5.14A, 5.83A, 6.52A, 7.20A
Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
Automatic idle-current reduction
Suitable for 2-phase and 4-phase motors
Over-voltage, over-current protections
Applications
Suitable for a wide range of stepping motors, from NEMA size 23 to 42.
It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on.
Particularly adapt to the applications desired with low noise, low heating, high speed and high precision.
