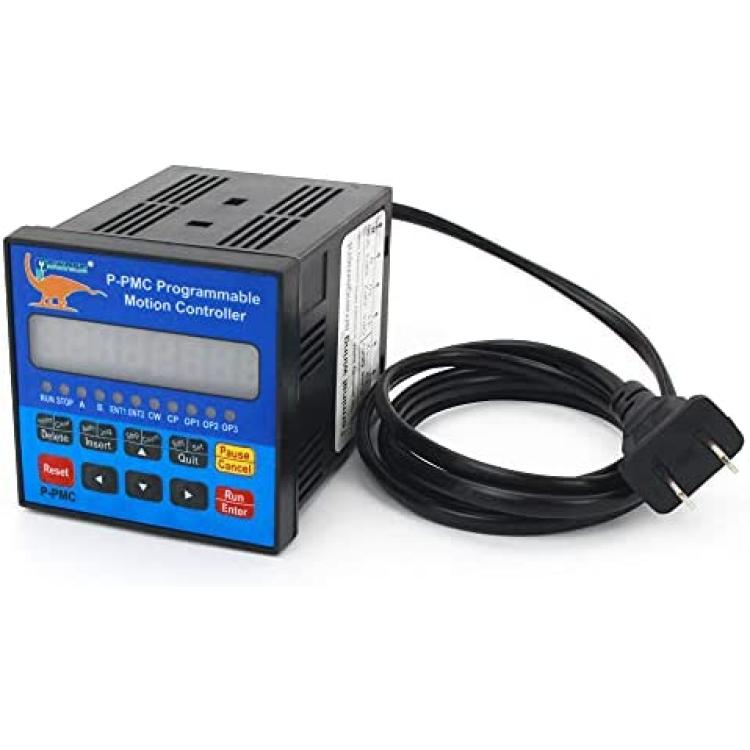

Single Axis CNC Motion Programmable Controller 40KHz 1 axis CNC System P-PMC Manual Control Operation Parameter Setting Function for Stepper Motor Servo Motor 3 output 6 input

Single Axis CNC Motion Programmable Controller 40KHz 1 axis CNC System P-PMC Manual Control Operation Parameter Setting Function for Stepper Motor Servo Motor 3 output 6 input

Brand: ‎Changzhou Rattm Motor Co.,Ltd
Product Code: MM895
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*【P-PMC Single axis motion controller】It can achieve a variety of complex operation: positioning control and non-positioning control;The maximum output frequency: 40KHz;Output frequency resolution: 1Hz;Display digits: 8 digital display.

*【Signal input/output】Programmable maximum number of rows: 99;Signal input: 6 (optical isolation);Signal output: 3 (optical isolation);A continuous displacement range: -7,999,999 ~ 7,999,999; Operating state: Auto-run mode, manual operation, the program edit mode, parameter setting status;Lifting speed curve: 2 (optimization);

*【Program editing functions】You can insert, delete, modify the program. The controller can identify the error Instruction; Return to Zero features: It can return to zero from the positive and negative directions automatically The number of programming instructions: 14;

*【Parameter setting functions】 Starting frequency, acceleration and deceleration curve, reverse clearance, manually run length, manual speed, back to zero speed and interrupt jump the line all can be set;

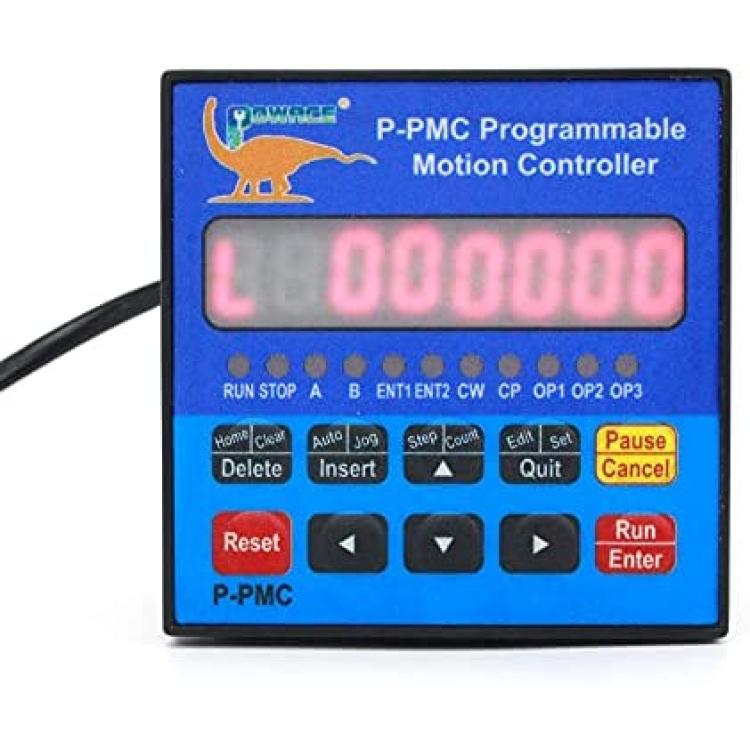

*【More Functions】 Manual/automatic status display, run/stop status display, the number of steps/counts / procedures display, edit the program, parameter display, input/output status display, pulse and direction display ;

Description

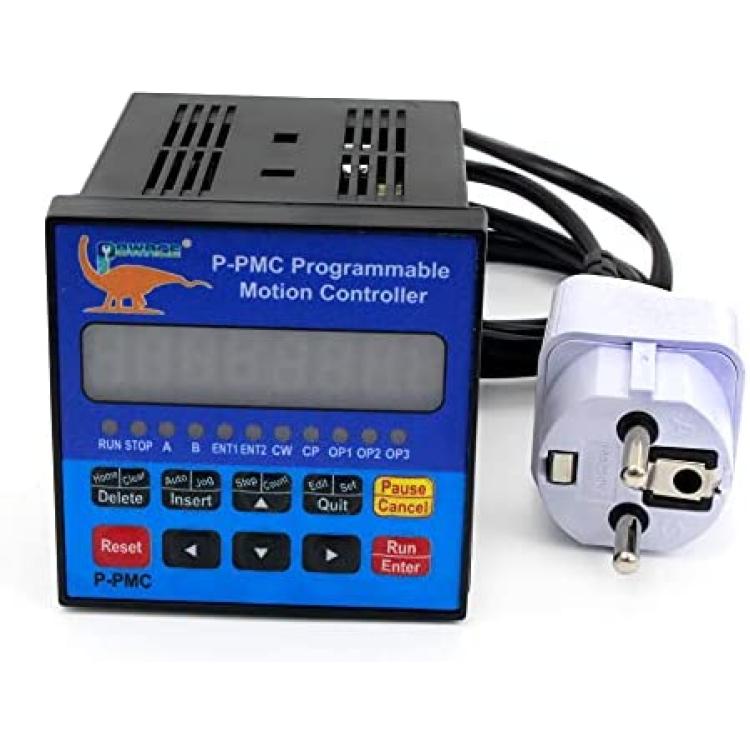

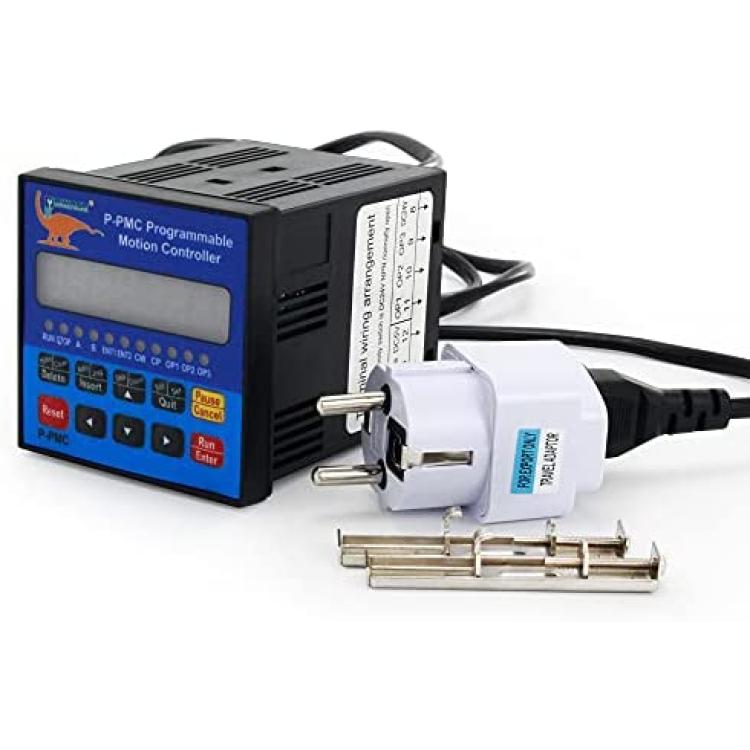

1x Single axis motion programmable controller1x Universal plug converterDisplay digits: 8 digital display, manual / automatic status display, run / stop status display, the number of steps / counts / procedures display, edit the program, parameter display, input / output status display, pulse and direction display ;Auto-run feature: You can edit, you can control the start and stop operation ect. automatically through the panel buttons and adding switches that connected to the back of the terminals;Manual operation functions: position adjustment (manual jog speed and jog the number of steps can be set);Parameter setting function: Starting frequency, acceleration and deceleration curve, reverse clearance, manually run length, manual speed, back to zero speed and interrupt jump the line all can be set;Program editing functions: You can insert, delete, modify the program. The controller can identify the error Instruction;Return to Zero features: It can return to zero from the positive and negative directions automaticallyThe number of programming instructions: 14;External operating functions: interrupt operation through parameter setting and add switches that connected to the terminals A and B;Power supply:AC220V±15%;This controller adopts embedded instrument shell,small size and light weight (500g),the front panel is 71mm×71mm square, and the length is 120mm. The specific dimensions are shown in the figure below.Number of controlled axis: Single axis;can achieve a variety of complex operation: positioning control and non-positioning control;The maximum output frequency: 40KHZ;Output frequency resolution: 1Hz;Programmable maximum number of rows: 99;Signal input: 6 (optical isolation);Signal output: 3 (optical isolation);A continuous displacement range: -7,999,999 ~ 7,999,999;Operating state: Auto-run mode, manual operation, the program edit mode, parameter setting status;Lifting speed curve: 2 (optimization);
