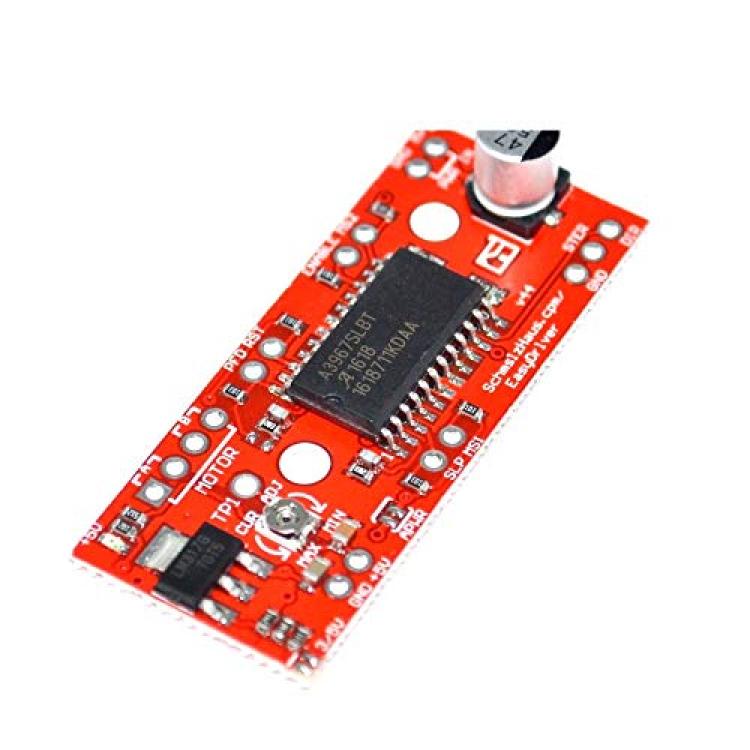

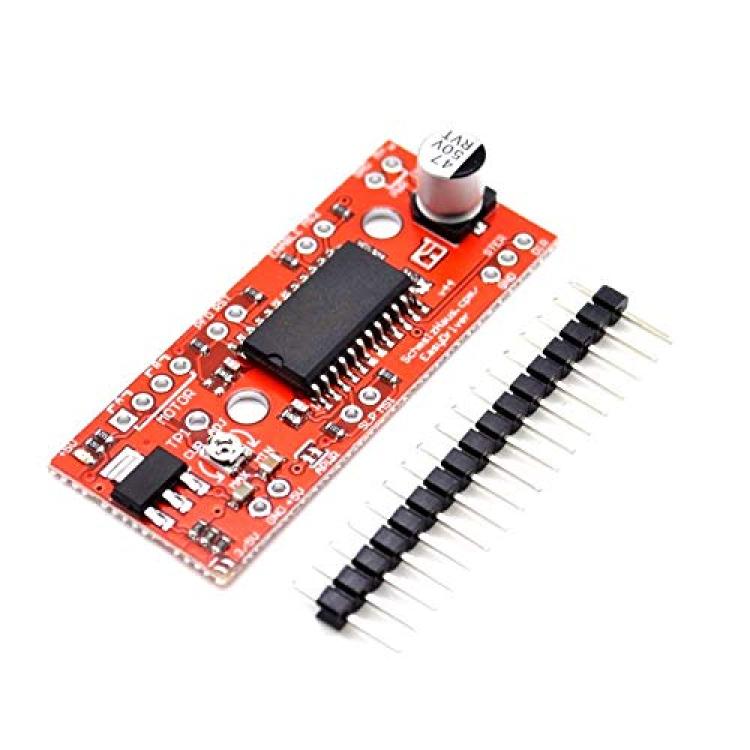

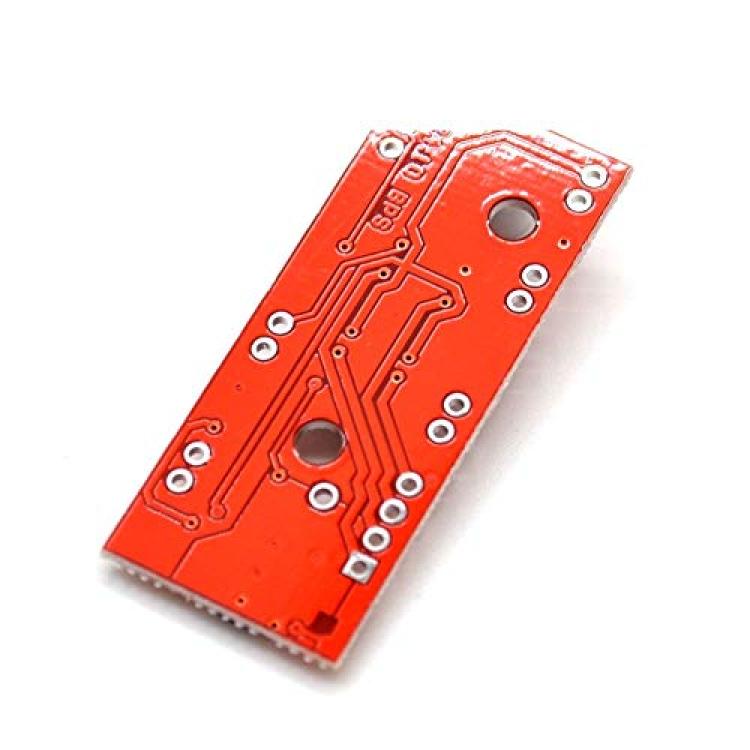

5pcs A3967 EasyDriver Stepper Motor Driver V44 for arduino Development Board 3D Printer A3967 Module
Availability: Pre-Order, Inquiry Price
About this product
*We are a professional supplier of integrated circuit products. Just search keywords in our store. I believe you can find the Product you need.
*Delivery time: 6-18 days by special line for USA , 8-30 days by regular post for Worldwide,If it is not received within the specified time, please contact us and we will refund you in full.
*If you need the product urgently, you can choose expedited service. We will use DHL to serve you. Delivery time: 3-7 days.
*any question,please feel free to contact me.I believe our sweet service will satisfy you.
*Please note that the products are only offered by the brand: DIYQuantum . Other sales people is not reliable.
Description
EasyDriver Shield Stepping Stepper Motor Driver V44 A3967 For Support 4/6/8 Wire Steppers 7V-30V
The EasyDriver is a simple to use stepper motor driver, compatible with anything that can output a digital 0 to 5V pulse (or 0 to 3.3V pulse if you solder SJ2 closed on the EasyDriver). EasyDriver requires a 7V to 30V supply to power the motor and can power any voltage of stepper motor. The EasyDriver has an on board voltage regulator for the digital interface that can be set to 5V or 3.3V. Connect a 4-wire stepper motor and a microcontroller and you've got precision motor control! EasyDriver drives bi-polar motors, and motors wired as bi-polar. I.e. 4,6, or 8 wire stepper motors. On this version (v4.4) we fixed the silk error on the min/max adjustment. This is the newest version of EasyDriver V4 co-designed withBrian Schmalz. It provides much more flexibility and control over your stepper motor, when compared to older versions. The microstep select (MS1 and MS2) pins of the A3967 are broken out allowing adjustments to the microstepping resolution. The sleep and enable pins are also broken out for further control.
Notes:
Do not connect or disconnect a motor while the driver is energized. This will cause permanent damage to the A3967 IC.
Notes:
This product is a collaboration with Brian Schmalz. A portion of each sales goes back to them for product support and continued development.
Features:
A3967 microstepping driver MS1 and MS2 pins broken out to change microstepping resolution to full, half, quarter and eighth steps (defaults to eighth) Compatible with 4, 6, and 8 wire stepper motors of any voltage Adjustable current control from 150mA/phase to 750mA/phase Power supply range from 7V to 30V. The higher the voltage, the higher the torque at high speeds
5Set EasyDriver Shield Stepping Stepper Motor Driver V44 A3967 For Support 4/6/8 Wire Steppers 7V-30V
