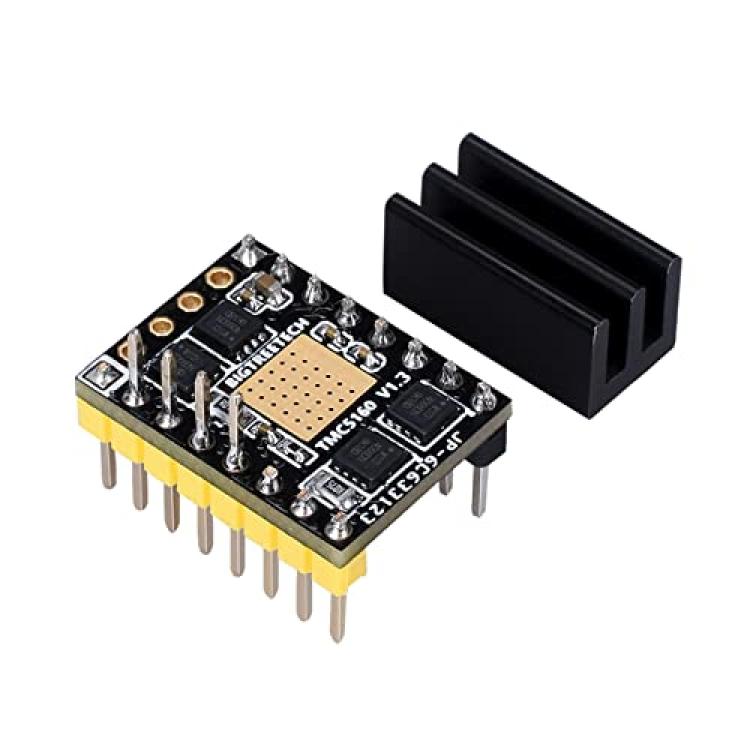

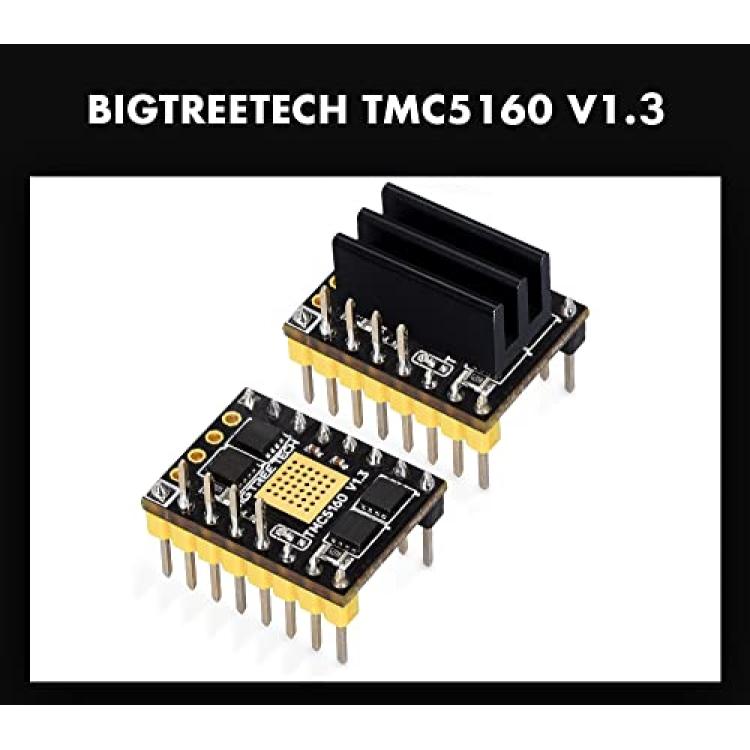

BIGTREETECH TMC5160 v1.3 Stepper Motor Driver Stepstick Mute 3D Printer Part with Heatsink for SKR 2/Octopus V1.2/SKR V1.4 Turbo/SKR V1.3 Control Board (1pcs)
Availability: Pre-Order, Inquiry Price
About this product
*Motion Controller with SixPointramp;Step/Dir Interface with microstep interpolation MicroPlyer
*SPI & Single Wire UART;Highest Resolution 256 microsteps per full step
*StealthChop2 for quiet operation and smooth motion;Resonance Dampening for mid-range resonances
*SpreadCycle highly dynamic motor control chopper;dcStep load dependent speed control;StallGuard2 high precision sensorless motor load detection
*CoolStep current control for energy savings up to 75%;External MOS, low heat generation, not easy to lose steps;Full Protection & Diagnostics.
Description

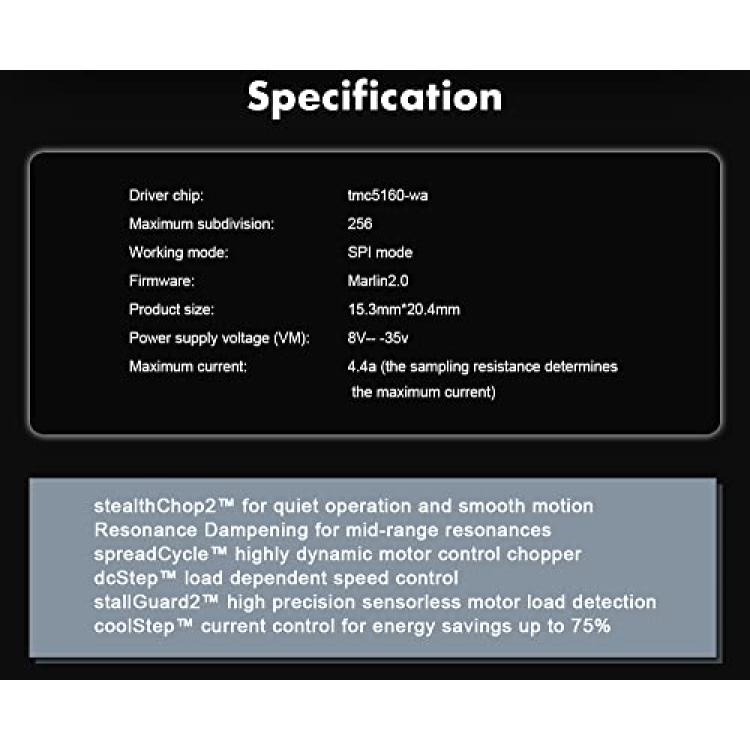

BIGTREETECH TMC5160 v1.3 Stepper Motor Driver Stepstick Mute 3D Printer Part with Heatsink for SKR 2/Octopus V1.2/SKR V1.4 Turbo/SKR V1.3 Control Board Product Parameters:
Product Size: 15.3 x 20.4mm
Chip: TMC5160WA 8x8mm² QFN Packaging
Supply Voltage: 8-35V
Drive Current: 3A Max (adjustable by changing the reference resistor.)BR>
Logic Voltage: 3.3V or 5V
External MOS Parameters: Withstand Voltage 40V, on-resistance RDSON=17m?, Withstand Current 14A
Optional Working Mode: Standalone Mode, UART, SPI
Drive Subdivision: 256 Microsteps
stallGuard2: high-accuracy sensorless load detection with adjustable sensitivity.BR>
Drive Current Setting: Default 0.075R
Packaging Information: Pack of 1
