3D Printer - StepStick MKS TMC2100 Stepper Motor Driver Module Board Ultra-Silent Controller Superior Protection
Availability: Pre-Order, Inquiry Price
About this product
*Package Includes: MKS TMC2100 Driver X 1 | Product
*1: ultra-silent excellent stability
*2: The calculation method of driver current: i=Vref*1.9/2.5
*3: Default Vref is 0.65v, Default Current is 0.5a max current is 1A.
*TMC2100 driver working temperature is more higher when working without the fan. current at around 0.5A working temperature is about 70 degrees, 1A working temperature over 150 degrees, is likely to lose step. advice to do a good job of cooling.suggest working current 0.5A.
Description

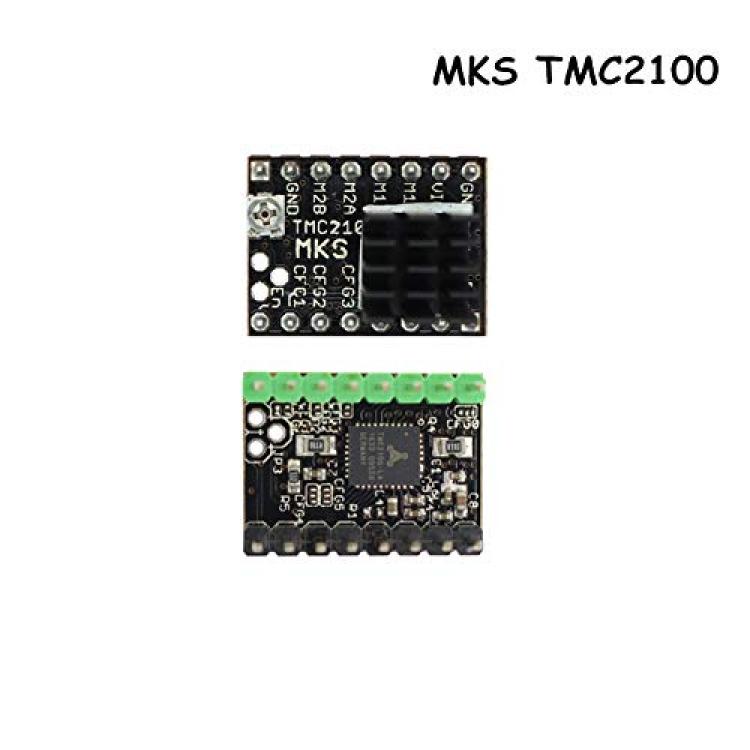

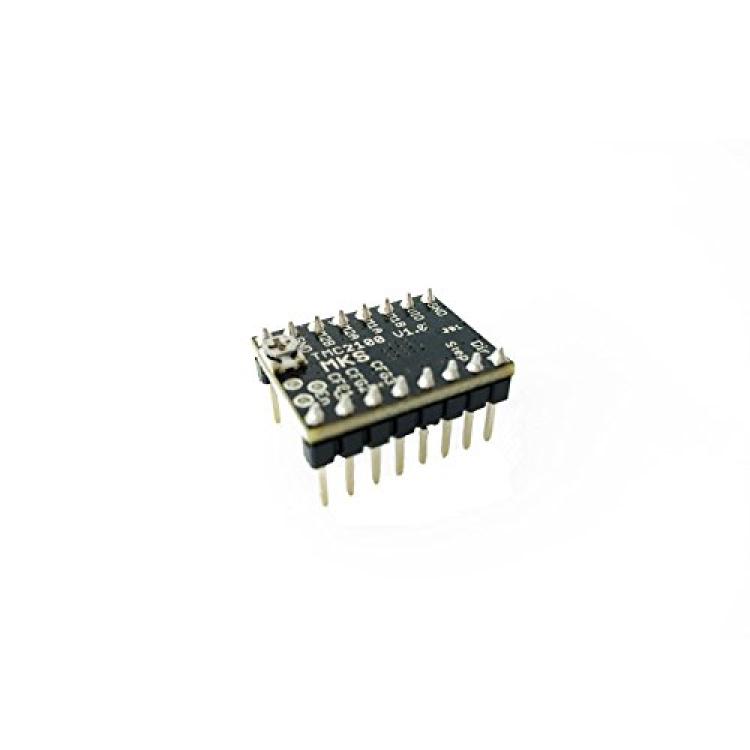

Product Name:Â MKS TMC2100 V1.3 Stepper Motor Driver ModuleÂ
Package includes:
MKS TMC2100 Driver    X      1Â
Product Descriptions:
1: ultra-silent excellent stability
2: The calculation method of driver current: i=Vref*1.9/2.5
3: Default Vref is 0.65v, Default Current is 0.5a max current is 1A.
TMC2100 driver working temperature is more higher when working without the fan. current at around 0.5A working temperature is about 70 degrees, 1A working temperature over 150 degrees, is likely to lose step. advice to do a good job of cooling.suggest working current 0.5A.
*Make sure do not to connect the motor when measuring voltage,otherwise it may burn driver.
*When measure the voltage shall be connected to the power supply, don't just connect the USB power supply.
*Please pay special attention to the direction, not againstï¼?otherwise it may burn driver even the mainboard
.
Item specifics:
Item type: Driver
Model number: MKS TMC2100
