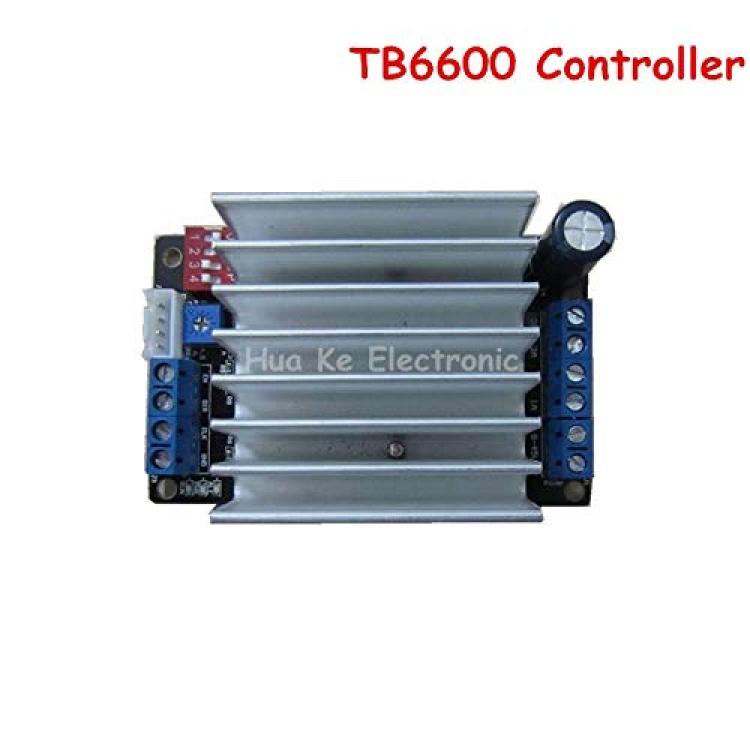

3D Printer - DC12-45V 0.2-5A CNC MKS TB6600 Stepper Motor Driver Controller for 3D Printer Parts Motors
Availability: Pre-Order, Inquiry Price
About this product
*PWM chopper-type single-chip bipolar sinusoidal micro-step stepping motor driver.
*BiCD 0.13 (50 V) process, Lower Ron: 0.4 ?(typ.).
*Output withstand voltage: VCC = 50 V.
*Output current: IOUT = 5.0 A (absolute maximum ratings, peak, within 100ms).IOUT = 4.5 A (operating range, maximal. value).More Stepper motors
Description
Package includes:
MKS TB6600 X 1
We provide one-stop 3D printer boards & partspurchasing.
Help you tobuilt your 3D Printingdream easily and conveniently.
Click to built your dream.
Features:
PWM chopper-type single-chip bipolar sinusoidal micro-step stepping motor driver.
BiCD 0.13 (50 V) process, Lower Ron: 0.4 ?(typ.).
Output withstand voltage: VCC = 50 V.
Output current: IOUT = 5.0 A (absolute maximum ratings, peak, within 100ms).IOUT = 4.5 A (operating range, maximal. value).More Stepper motors
Thermal shut down (TSD) protection.
Under voltage lock out (UVLO) protection.
Over-current detection (ISD) protection.
Double input port: Anti-reverse structure IDC haeder( 8pin symmetrical input) & HT-396-4pin input (suit for DIY).
Stepless adjustable reference voltage.
Compatible the CNC Stepper Motor.
Offer an solution to change your CNC to 3D Printer.
Board size: 50.5*50mm . Carry 50*50*23mm aluminum Heat sink which build-in fix hole and connection hole.
Auto half current, energy conservation.
Photoelectric-isolation used in the input port, compatible more drive Level.
Programmable micro step - 1/1, 1/2A, 1/2B, 1/4, 1/8, 1/16.
MKS TB6600 Connector
Item specifics:
Item type: Driver
Model number: TB6600 Stepper Motor Driver Controller
