CNLINKO Quick Electrical AC DC Power Connector 10A 500V, pin Socket Plug Connector Waterproof M16 3PIN, Professional Audio Panel Mount connectors for led Light, (3 PIN)

About this product

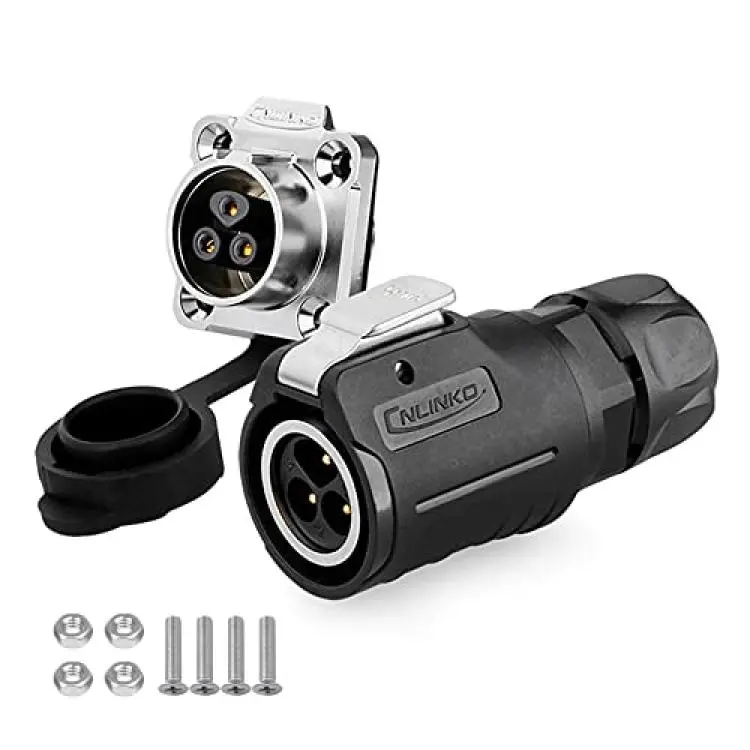

*LP-16-C03PE-01-001 + LP-16-J03SX-03-401 ; Male Plug + Female Socket ; Connecting Mode: Plug/Unplug ; Protection Level: IP67(Mated) ;

*【Standard】 Cable Specification: 1.0-1.5mm²/18-16AWG ; Cable Diameter Range: Ф3.0~Ф8.5mm ; Contact Diameter × Number: Φ1.5x3 ; Durability: ≥500 Mating/Unmating Cycle ; Temperature Rating: -40°C ~ 80°C ; Assembly Style:Solder ;

*【Specifications】 Rated Current: 10A ; Operating Voltage (AC.V.rms): 400V ; Withstanding Voltage (AC.V),1 Minute: 1500V ; Contact Resistance:

*【Material】 Shell & Insulated Parts: Metal & High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Gold Plated) ; Sealing: Silica Gel ;

*【Application】 Medical Equipment ; Server ; Electric Power Equipment ; Solar Energy Equipment ; The Smart Grid ; Communications Equipment ; Vehicle Equipment ; Ship Equipment ; Stage Equipment ; Heavy Machin ;
