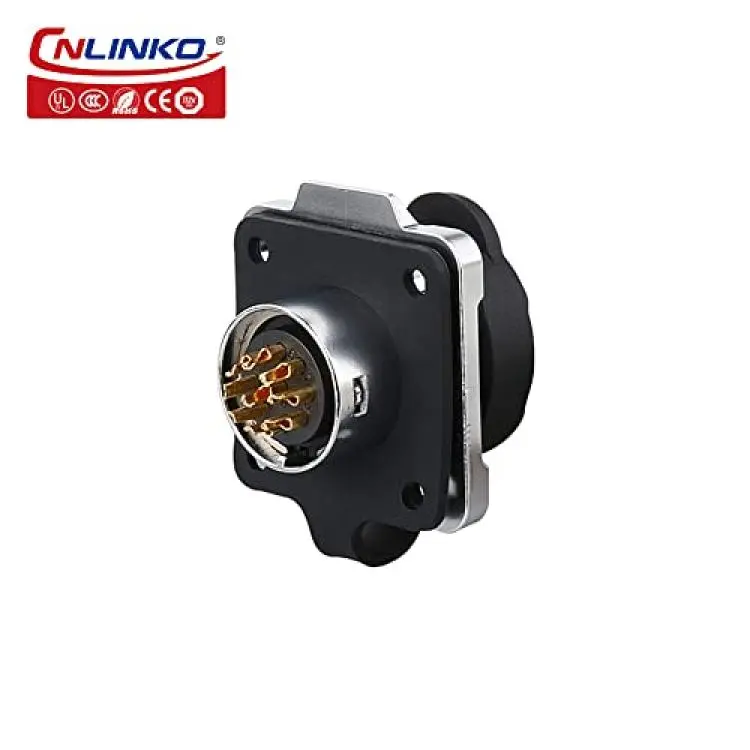

CNLINKO 5A Male Socket Plug M16 9PIN Audio Connector Waterproof, Panel Mount Ethernet Signal Connector, Solder Wire to Board Connector for Indoor Outdoor Automotive Electrical (9 PIN)

About this product

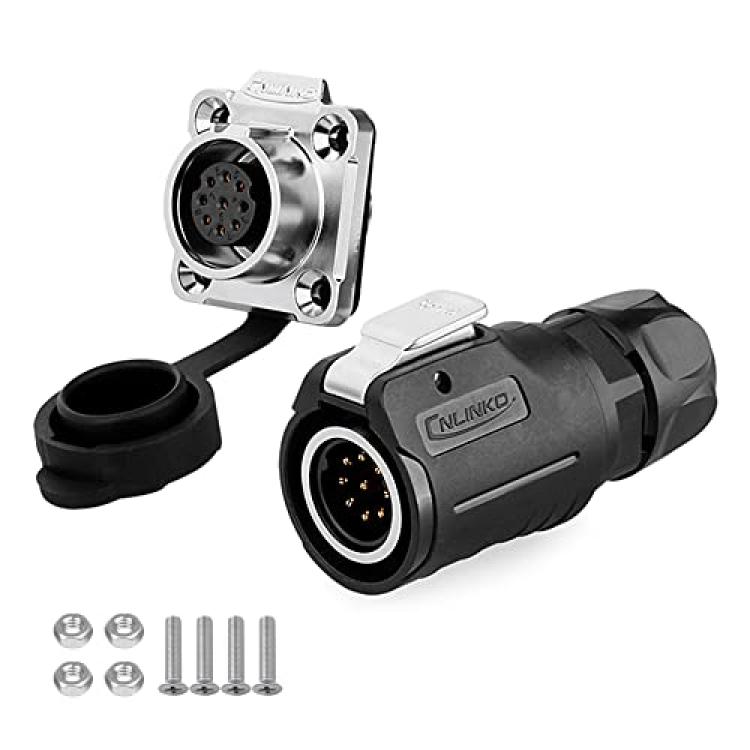

*LP-16-C09PE-01-001 + LP-16-J09SX-03-401 ; Male Plug + Female Socket ; Connecting Mode: Plug/Unplug ; Protection Level: IP67(Mated) ;

*【Standard】 Cable Specification: 0.34-0.75mm²/22-20AWG ; Cable Diameter Range: Ф3.0~Ф6.0mm ; Contact Diameter × Number: Φ1.0x9 ; Durability: ≥500 Mating/Unmating Cycle ; Temperature Rating: -40°C ~ 80°C ; Assembly Style:Solder ;

*【Specifications】 Rated Current: 5A ; Operating Voltage (AC.V.rms): 250V ; Withstanding Voltage (AC.V),1 Minute: 1000V ; Contact Resistance:

*【Material】 Shell & Insulated Parts: Metal & High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Gold Plated) ; Sealing: Silica Gel ;

*【Application】 Medical Equipment ; Server ; Electric Power Equipment ; Solar Energy Equipment ; The Smart Grid ; Communications Equipment ; Vehicle Equipment ; Ship Equipment ; Stage Equipment ; Heavy Machin ;
