CNLINKO M16 4 Pin Male Female Plug Socket Industrial IP67 Waterproof Power Panel Mount Ethernet Connector, 10A Power LED Strip Panel Connector (4Pin)

About this product

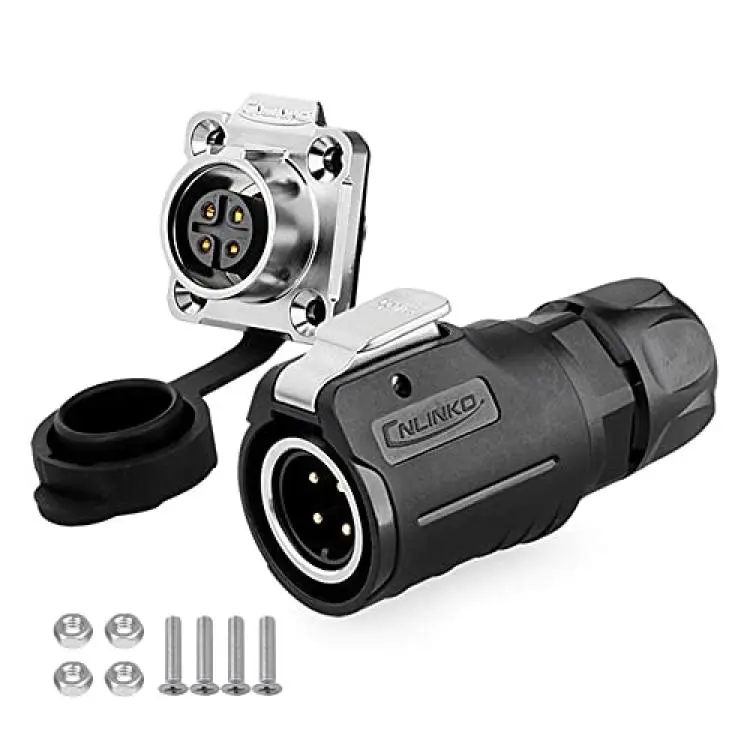

*LP-16-C04PE-01-001 + LP-16-J04SX-03-401 ; Male Plug + Female Socket ; Connecting Mode: Plug/Unplug ; Protection Level: IP67(Mated) ;

*【Standard】 Cable Specification: 1.0-1.5mm²/18-16AWG ; Cable Diameter Range: Ф3.0~Ф8.5mm ; Contact Diameter × Number: Φ1.5x4 ; Durability: ≥500 Mating/Unmating Cycle ; Temperature Rating: -40°C ~ 80°C ; Assembly Style:Solder ;

*【Specifications】 Rated Current: 10A ; Operating Voltage (AC.V.rms): 400V ; Withstanding Voltage (AC.V),1 Minute: 1500V ; Contact Resistance:

*【Material】 Shell & Insulated Parts: Metal & High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Gold Plated) ; Sealing: Silica Gel ;

*【Application】 Medical Equipment ; Server ; Electric Power Equipment ; Solar Energy Equipment ; The Smart Grid ; Communications Equipment ; Vehicle Equipment ; Ship Equipment ; Stage Equipment ; Heavy Machin ;
