Aviation Connector M20 Plastic Male Plug + Square Female Socket Φ20mm Outdoor Waterproof IP67 Connectors with Cap Panel Mount 3 Pin Gold Plated for Industrial Device Power
About this product
*Package list: 1 male plug + 1 female socket. Multi-core design styles(2-12 cores), signal and power compatible match.
*PBT material of the protective housing, with characters of fire safety, compression, anti-explosion and anti-deformation.

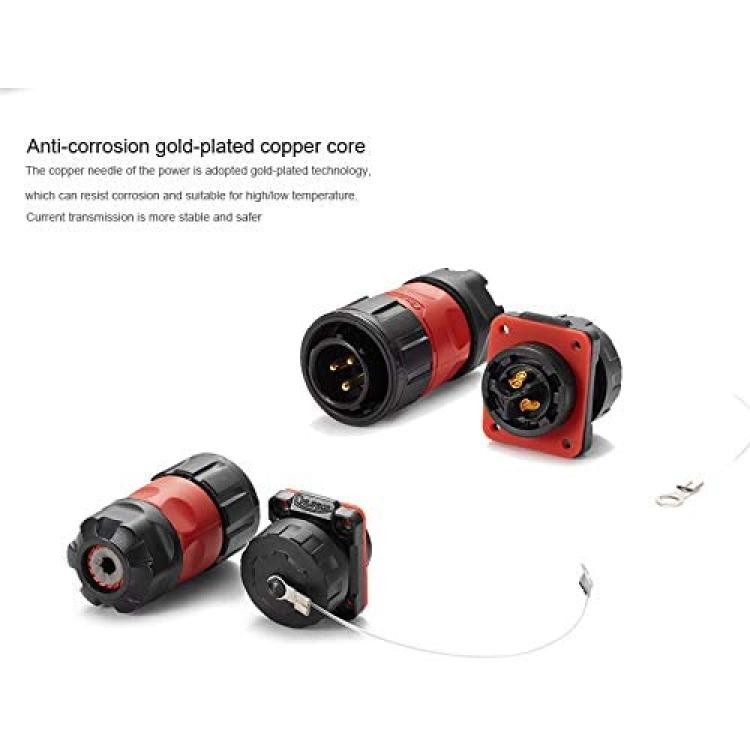

*Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, effective response to temperature changes in current.
*1/4 quick bayonet coupling, simple operation, easy installation. Dustproof cover design, protection level:IP67.
*Rated Current:20A. Operating voltage:500V. Withstanding Voltage 1 minute:2500V. Contact resistance:
Description
Specifications for 2pin, 3pin, 4pin:
Cable specification: 2.5m?-4m?/14-12AWG
Diameter range: ?8mm??12mm
Contact diameter × number: ?2.7x2 / ?2.7x3 / ?2.7x4
Rated Current (A): 20A
Operating voltage (AC.V.rms): 500V
Contact resistance: <5m?
Temperature rise: 20A contact temperature below 30?, 25A ......40??, 30A......50??
Withstanding Voltage (AC.V) 1 minute: 2500V
Specifications for 5pin, 7pin:
Cable specification: 1.0m?-1.5m?/18-16AWG
Diameter range: ?8mm??12mm
Contact diameter × number: ?1.8x5 / ?1.8x7
Rated Current (A): 12A
Operating voltage (AC.V.rms): 500V
Contact resistance: <2.5m?
Temperature rise: 12A contact temperature below 30?, 15A ......40??, 20A......50??
Withstanding Voltage (AC.V) 1 minute: 2500V
Specifications for 9pin, 12pin:
Cable specification: 0.15m?-0.2m?/26-24AWG
Diameter range: ?5.5mm??7mm
Contact diameter × number: ?1.0x9 / ?1.0x12
Rated Current (A): 5A
Operating voltage (AC.V.rms): 400V
Contact resistance: <5m?
Withstanding Voltage (AC.V) 1 minute: 1500V
Insulation resistance: ?500M?
Protection level: IP65/IP67
Durability: ?500 times
Working temperature: -40??80?
Connecting mode: 1/4 quick bayonet coupling
Assembly wire: Solder
Housing, the insulating parts: High-performance engineering plastics
Copper needles: Copper alloy (gold-plated )
Waterproof circle: Silica gel
Flammability rating: UL94-V0
Package list:
1 male plug +1 female socket
