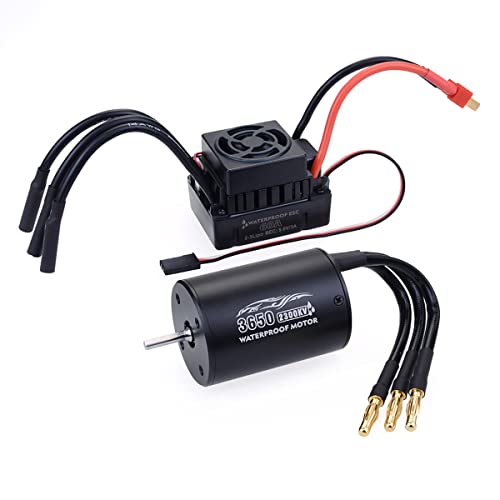

3650 2300KV Brushless Motor and 60A ESC Combo Set/Waterproof sensorless kit/Output 5.8V/3A/for 1/10 Remote Control car Truck Off-Road Vehicle
Availability: Pre-Order, Inquiry Price
About this product
*3650 motor adopts high-end materials, 6061-T6 aluminum heat sink, secondary oxidation treatment, 12-slot high-rotation motor design, high-end and fine appearance, waterproof and dustproof, suitable for all kinds of weather and climate
*The 3650 2300 kV brushless motor power is compatible with 1/10 most brands of cars, trucks and off-road vehicles on the market with good speed, sufficient power and strong acceleration
*The motor uses high purity copper coils, temperature resistance 180-200 °, high speed ABEC5 ultra-durable sealed bearings, low friction and low noise
*The motor adopts ultra-thin silicon steel sheet, which has good performance, high magnetic permeability, high silicon content, high quality insulation and heat resistance
*The 3650 2300KV motor and 60A ESC device are extremely waterproof and dustproof and have good heat dissipation. The use of excellent copper wires and protective rubber sleeves has a strong current resistance.
Description

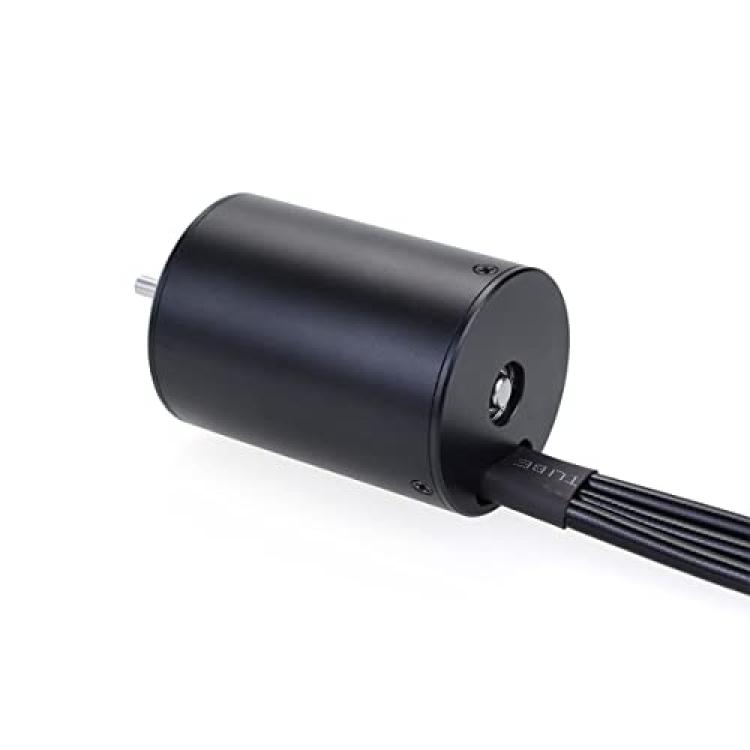

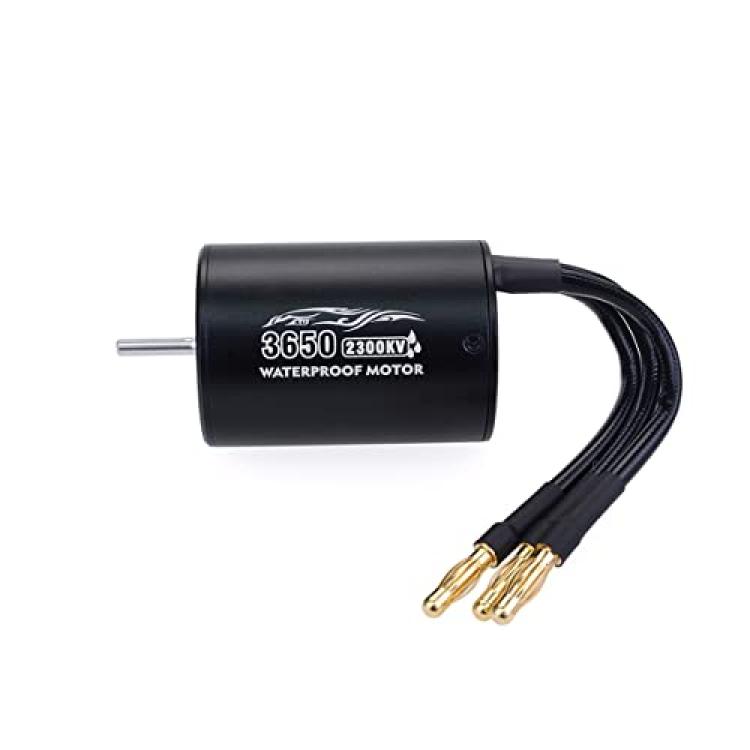

3650 2300KV motor unit:
Feature:
4-stage 12-slot high torque motor design, CNC billet machining
6061-T6 aluminum heat sink, secondary oxidation treatment, high-end and fine appearance
High purity copper coil, highest efficiency, temperature resistance 180-200 degrees
Motor adopts precise waterproof design, maximum power conversion
Suitable for 1/10 remote control car
High-speed Abec5 ultra-durable sealed bearings: low friction, low noise, high precision and long lasting use
Explosion-proof rotor with high balance: high smoothness, high accuracy and high speed, dynamic equilibrium control within 10 mg
Ultra-thin silicon steel sheet: excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistance

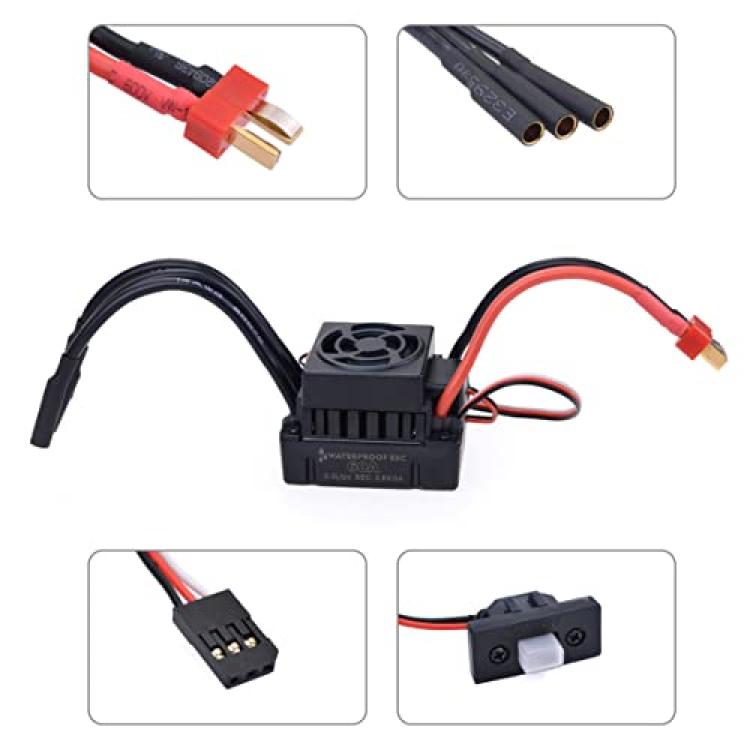

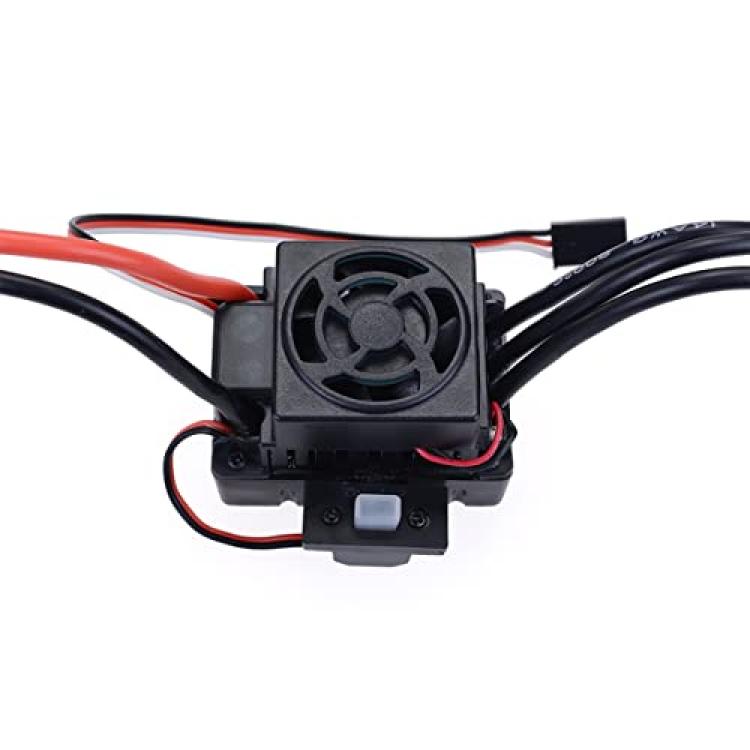

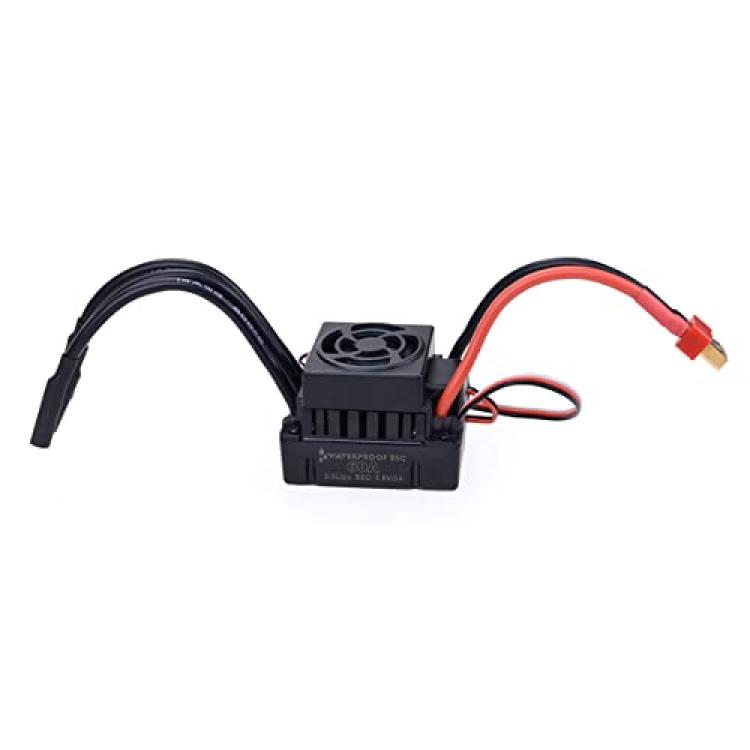

60AWater-proof ESC:
ESC is waterproof and dustproof all day long Suitable for all-weather competitions
The strong resistant current capability, excellent heat dissipation.
Multiple protection features, widely compatible with for 1/10 RC car
Built-in switch mode BEC 5.8V/3A, compatible with high torque

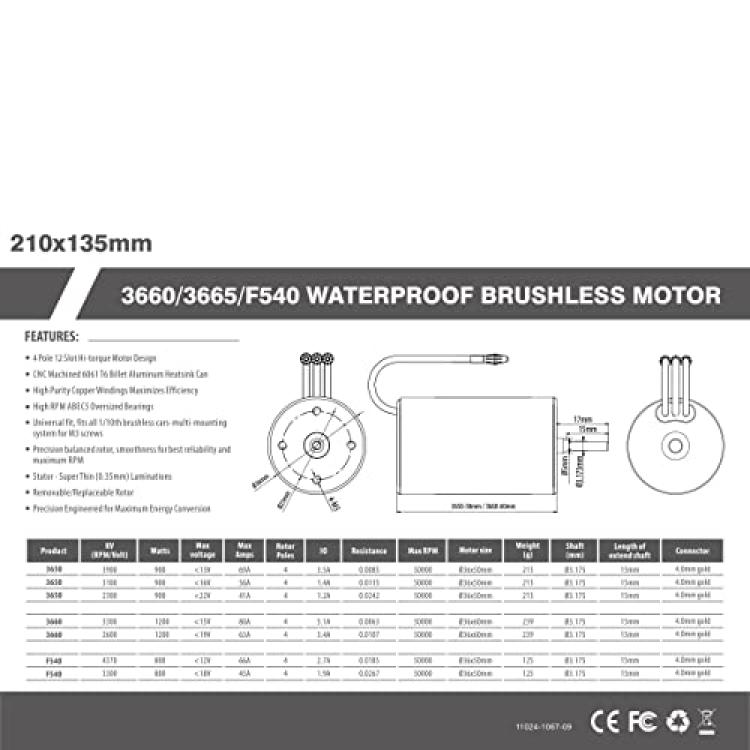

3650 2300KV motorspecifications:
Max RPM: 50000
Maximum current: 41A
Max voltage: <22V
Wattage: 900W.
IO :1.2A
Diameter: 36mm.
Length: 50mm.
Shaft length: 15mm
Shaft diameter: 3.175 mm
Plug type: 4mm golden banana plug
Weight: 180g
60A ESC specifications:
Continuous current: 60A
Burst current: 360A
Suitable brushless motor: ?9T
Battery: 2S Li-Po / 6S cells NIMH
Resistance: 0.0007Ohm.
Dimensions / weight: 51.5 × 38.5 × 38.5 mm / 76g
BEC OUTPYT: 5.8V / 3A (switch mode)
Package:
1 * 3650 2300kV brushless motor
1 *60A ESC
