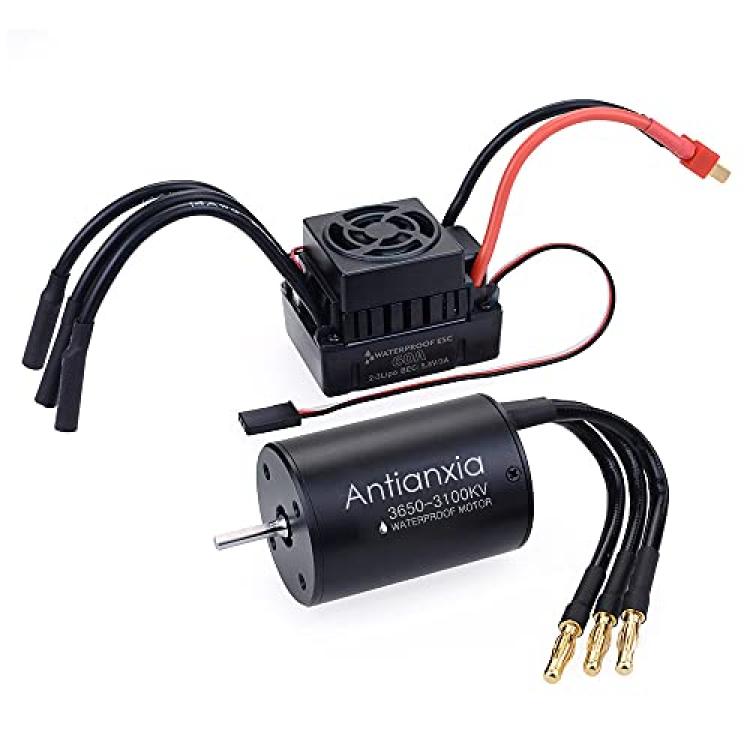

3650 3100KV Brushless Motor and 60A ESC Combo Set/Waterproof sensorless kit/Output 5.8V/3A/for 1/10 Remote Control car Truck Off-Road Vehicle
Availability: Pre-Order, Inquiry Price
About this product
*3650 motor adopts high-end materials, 6061-T6 aluminum heat sink, secondary oxidation treatment, 12-slot high-rotation motor design, high-end and fine appearance, waterproof and dustproof, suitable for all kinds of weather and climate
*The 3650 3100 kV brushless motor power is compatible with 1/10 most brands of cars, trucks and off-road vehicles on the market with good speed, sufficient power and strong acceleration
*The motor uses high purity copper coils, temperature resistance 180-200 °, high speed ABEC5 ultra-durable sealed bearings, low friction and low noise
*The motor adopts ultra-thin silicon steel sheet, which has good performance, high magnetic permeability, high silicon content, high quality insulation and heat resistance
*The 3650 3100KV motor and 60A ESC device are extremely waterproof and dustproof and have good heat dissipation. The use of excellent copper wires and protective rubber sleeves has a strong current resistance.
Description
3650 3100KV motor Feature:Â
1: 4-stage 12-slot high torque motor design, CNC billet machiningÂ
2:6061-T6 aluminum heat sink, secondary oxidation treatment, high-end and fine appearance
3:High purity copper coil,highestefficiency, temperature resistance 180-200 degreesÂ
4:Motor adopts precise waterproof design, maximum power conversionÂ
5:Suitable for 1/10 remote control carÂ
6:High-speed Abec5 ultra-durable sealed bearings: low friction, low noise, high precision and long lasting useÂ
7:Explosion-proof rotor with high balance: high smoothness, high accuracy and high speed, dynamic equilibrium control within 10 mgÂ
8:Ultra-thin silicon steel sheet: excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistanceÂ

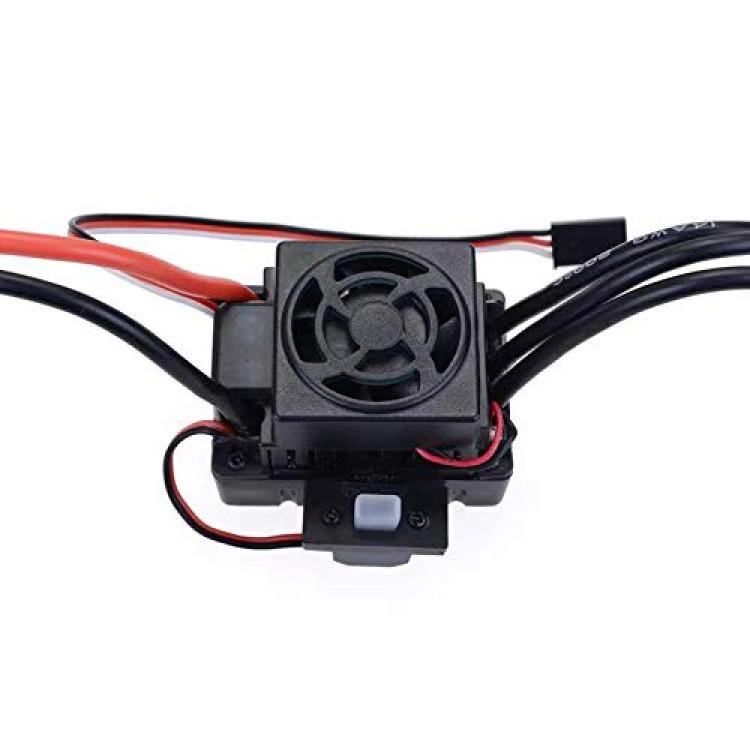

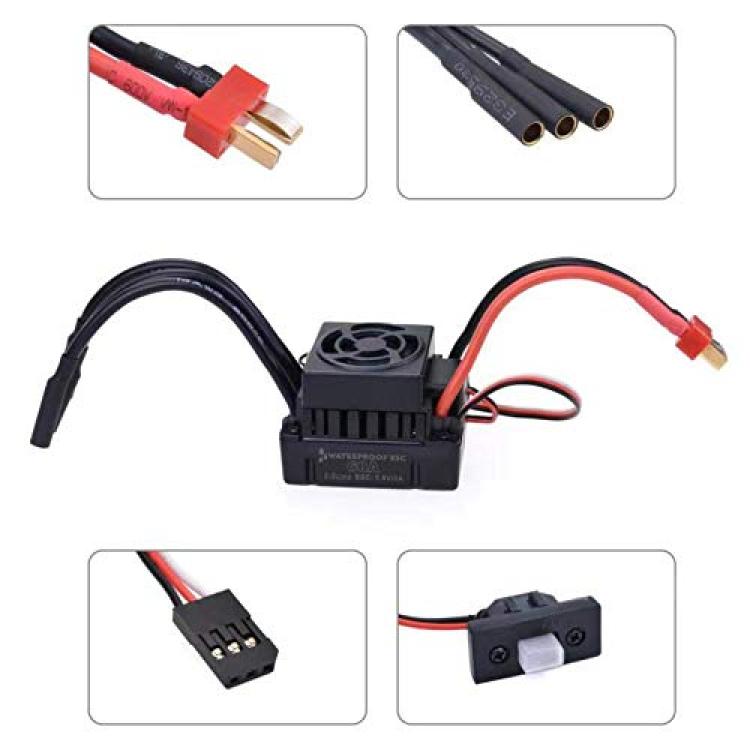

60AWater-proof ESC:
1:ESC is waterproof and dustproof all day long Suitable for all-weather competitionsÂ
2:The strong resistant current capability, excellent heat dissipation
3:Multiple protection features, widely compatible with for 1/10 RC carÂ
4:Built-in switch mode BEC 5.8V/3A, compatible with high torqueÂ

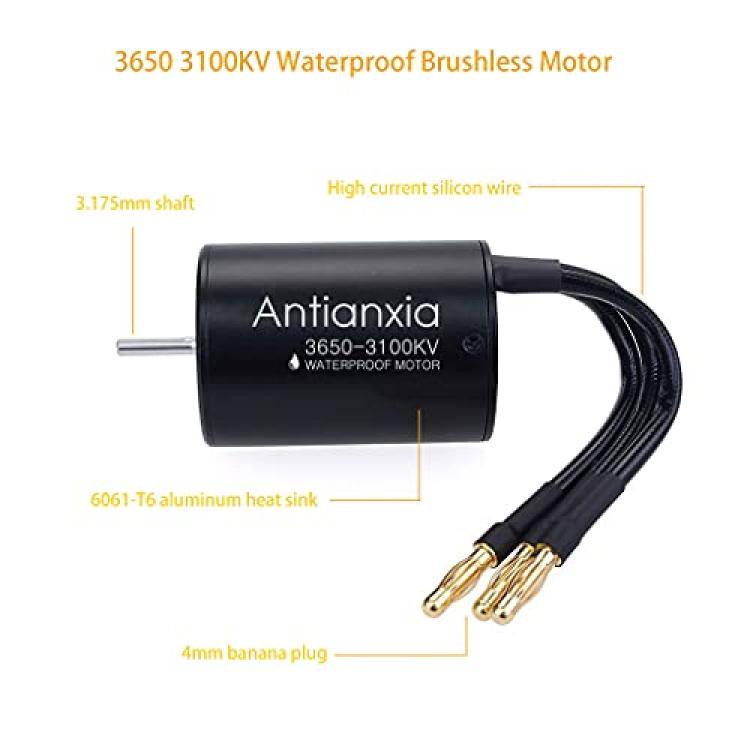

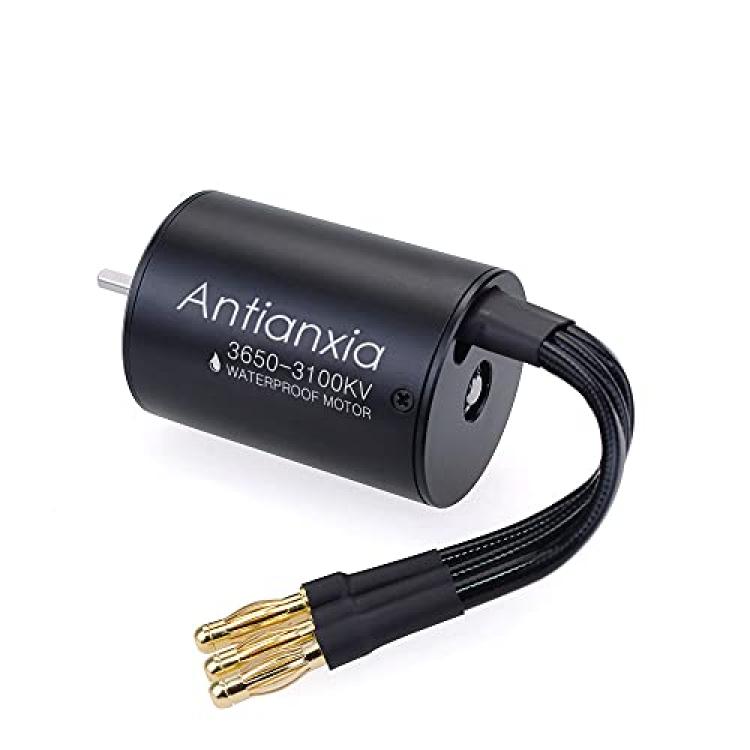

3100KV Motor specifications:
Max RPM: 50000Â
Maximum current: 56AÂ
Wattage: 900W
IO :1.4AÂ
Diameter: 36mm
Length: 50mm
Shaft length: 15mmÂ
Shaft diameter: 3.175 mmÂ
Weight: 180gÂ
Plug type: 4mm golden banana plugÂ

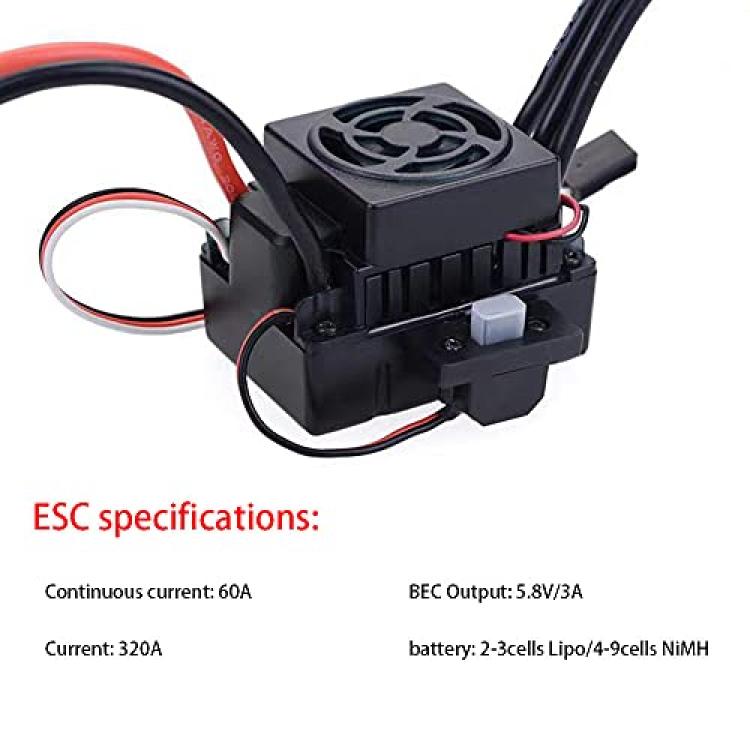

ESC specifications:Â
Continuous current: 60AÂ
Burst current: 360AÂ
Suitable brushless motor: ?9TÂ
Battery: 2S Li-Po / 6S cells NIMHÂ
Resistance: 0.0007Ohm.Â
Dimensions / weight: 51.5 × 38.5 × 38.5 mm / 76gÂ
BEC OUTPYT: 5.8V / 3A (switch mode)Â
Package:Â
1 * 3650 3100kV brushless motor Â
1 * 60A ESCÂ
