GoolRC 3650 3100KV 4P Sensorless Brushless Motor with 60A Brushless ESC(Electric Speed Controller) for 1/10 RC Car Truck

Brand: GoolRC
Product Code: MM3953
Availability: Pre-Order, Inquiry Price
US$0.00
- +

About this product

*4 poles 12 slot Hi-torque motor design.

*CNC machined 6061 T6 billet alumium heatsink can motor.

*High RPM ABEC5 oversized bearings.

*Universal fit all 1/10 brushless cars-multi-mounting system for M3 screws.

*Precision balanced rotor, smoothness for best reliability and maximum RPM.

Description

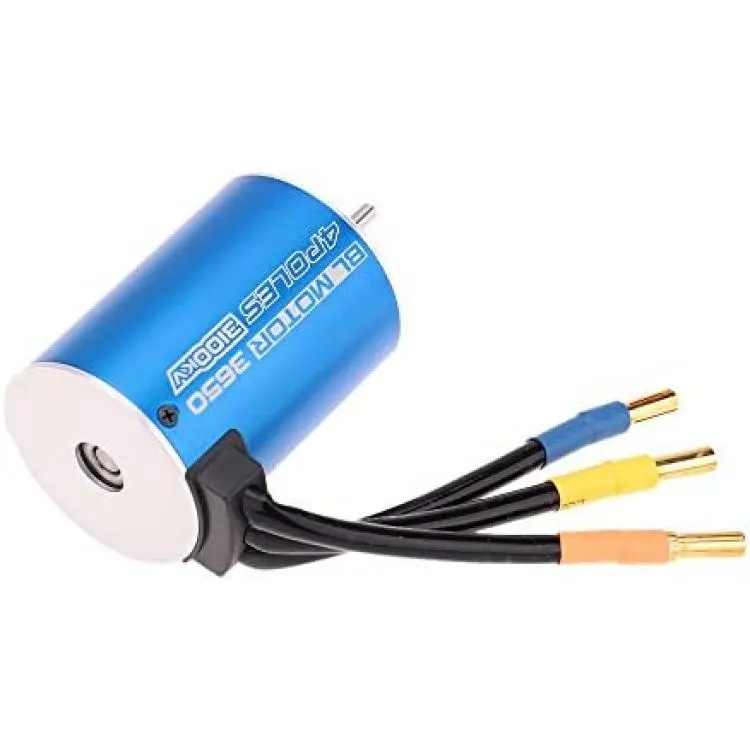

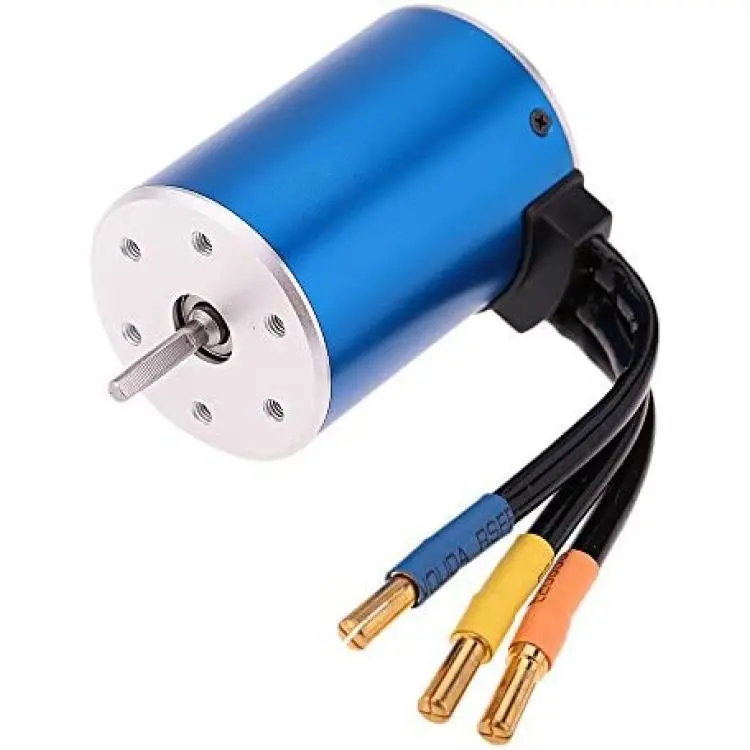

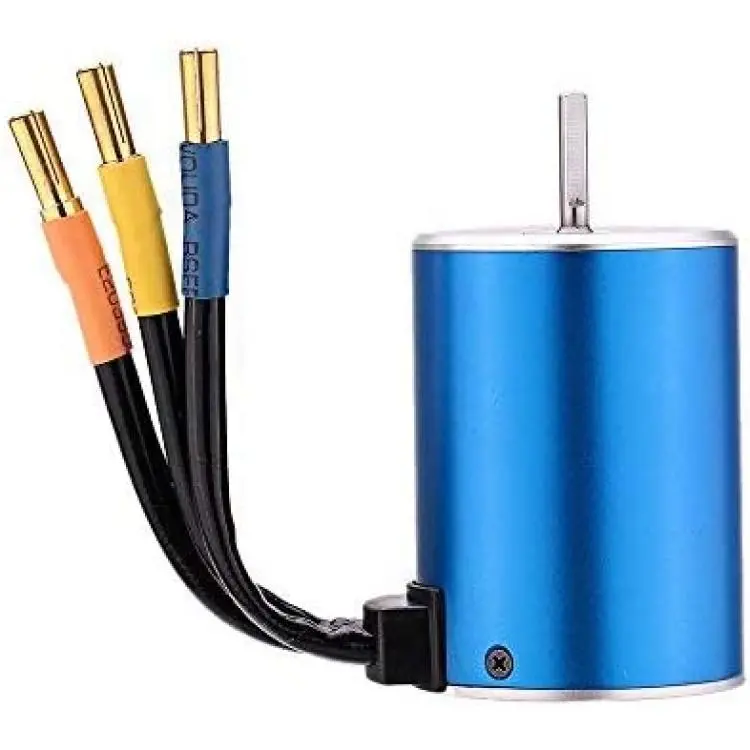

Motor
Features:

4 poles Hi-torque motor design.
CNC machined 6061 T6 billet alumium heatsink can.
High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings.
Universal fit all 1/10 brushless cars-multi-mounting system for M3 screws.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Stator - Super Thin (0.35mm) laminations.
Removable/replaceable.
Precision engineered for maximum energy conversion.
ROAR legal.

Specification:
RPM: 3100KV
Max Current: 56A
Max Watts: 900W

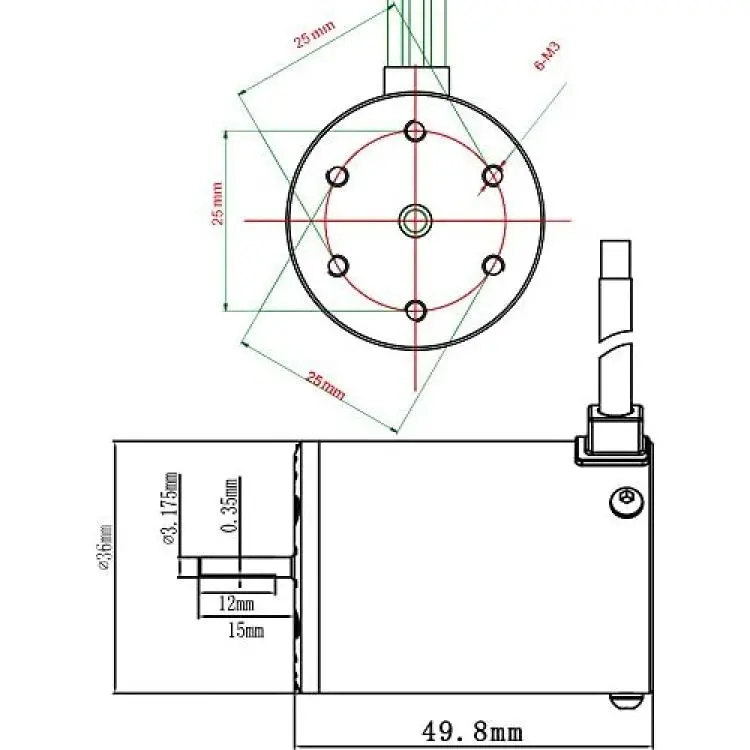

Can Size: 3650
Sensored: No
Can Diameter: 36mm
Can Length: 50mm
Shaft Diameter: 3.175mm
Shaft Length: 15mm
Bullet Connector: 4mm
Weight: 180.8g/6.4oz
Max voltage: 7.4V(2S)-14.8V(4S)

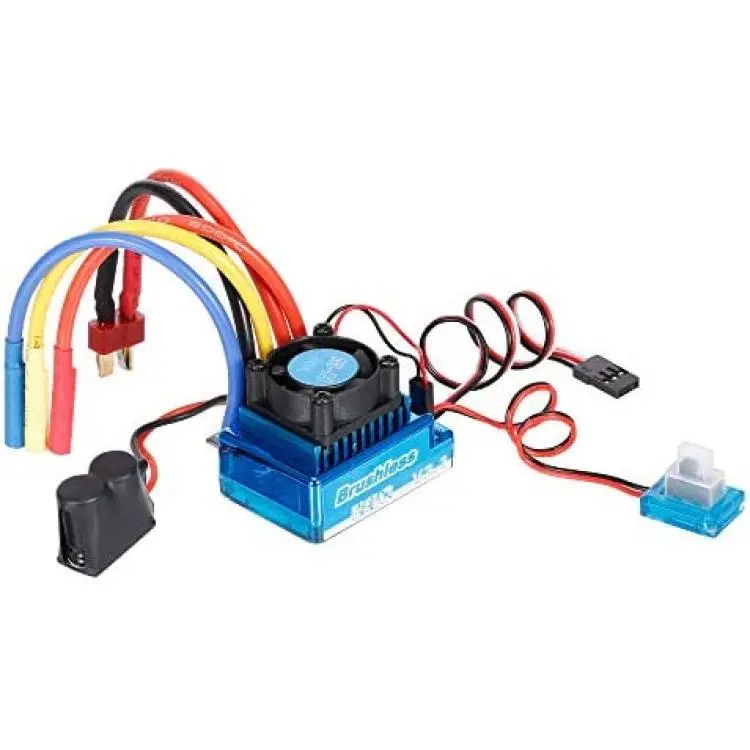

Electric Speed Controller
Features:

Compatible with sensorless brushless motors.
High anti-interference capability.
Using advanced software interface to set up or update the software.
Super smooth and accurate throttle linearity.
Fast response to throttle input.
Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.

Specifications:
Cont. Current: 60A
Burst Current: 320A/10sec
Battery: 2-3 Cell Lipo / 4-9 Cell NiMh
SBEC: Yes
SBEC Output: 5.8V/3A
Power Supply Plugs: T Male
Motor Plugs: Female 4mm Bullet Connector
Size: 45*35*35mm(with out fan)
Weight: 76.3g / 2.68oz

Package Information:
Package size: 10 * 8 * 6.5cm/ 3.9 * 3.1 * 2.5in
Package weight: 288g/10.1 oz

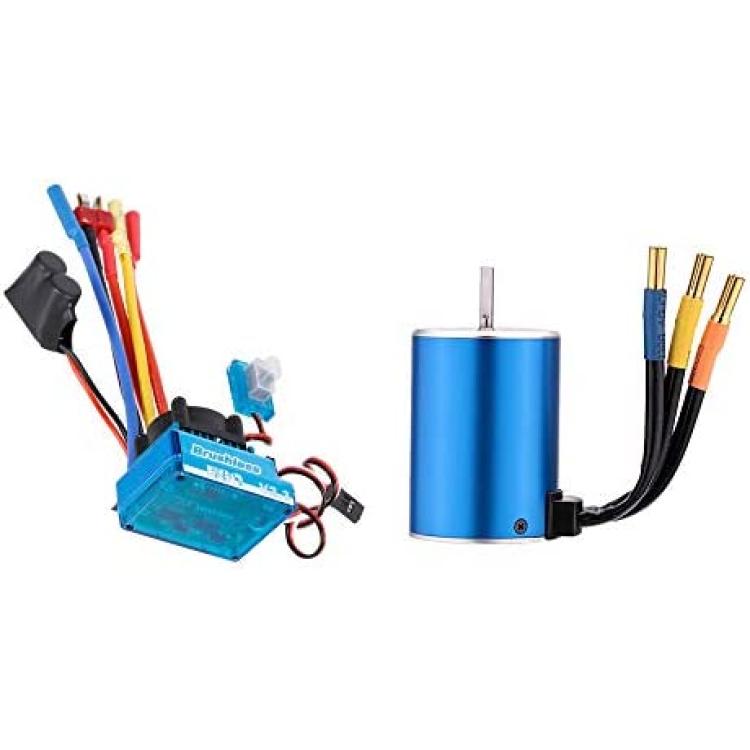

Package List:
1 * 3650 3100KV 4P Sensorless Brushless Motor
1 * 60A Brushless Electric Speed Controller
