3650 3250kv Brushless Motor ESC/Waterproof Sensorless Motor with 60A ESC & Programming Card Combo/Output 5.8V/5A/for 1/10 Remote Control car Truck Off-Road Vehicle
Availability: Pre-Order, Inquiry Price
About this product
*Motor ESC combination：Complete 3650 3250KV sensorless brushless motor with 60A ESC and programming card, no need for you to match different motors and ESCs anymore, save your time. help your RC truck quickly adjust different modes and speed
*Material: 4-pole 12-slot high-torque motor adopts 3.175mm alloy steel shaft, 6CNC processing 6061-T high hardness aluminum CNC shell heat sink, high temperature resistant copper wire, 0.2mm silicon steel sheet, with excellent starting and acceleration characteristics, and good insulation quality , Good heat resistance.
*Multiple protection functions: The upgraded 3250kv motor built-in temperature sensor and ESC can realize motor overheating protection, lithium or nickel battery low-voltage cut-off protection/ESC overheating protection/throttle signal loss protection/motor blocking protection, which can prevent your The remote control car is overheated and damaged
*Advantages: The motor adopts a 4-pole rotor design, with strong torque and stable output, high hardness aluminum CNC shell, high temperature resistant copper wire, 0.2mm silicon steel sheet, detachable structure for easy cleaning and maintenance. The ESC is waterproof and dustproof all day long, has strong anti-current capability, excellent heat dissipation, and has multiple protection functions. Built-in switch mode BEC 5.8V/5A, compatible with high torque
*Widely compatible: 3650 3250KV brushless motor + 60A ESC and programming card kit compatible with 1/10 cars, trucks, off-road vehicles, good speed, sufficient power supply, strong acceleration. Perfect match with 2-3S lithium battery
Description

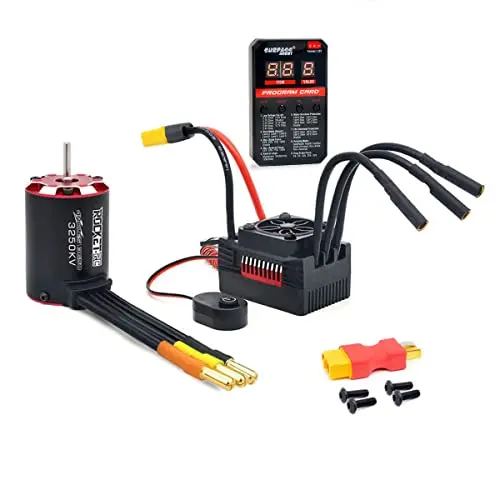

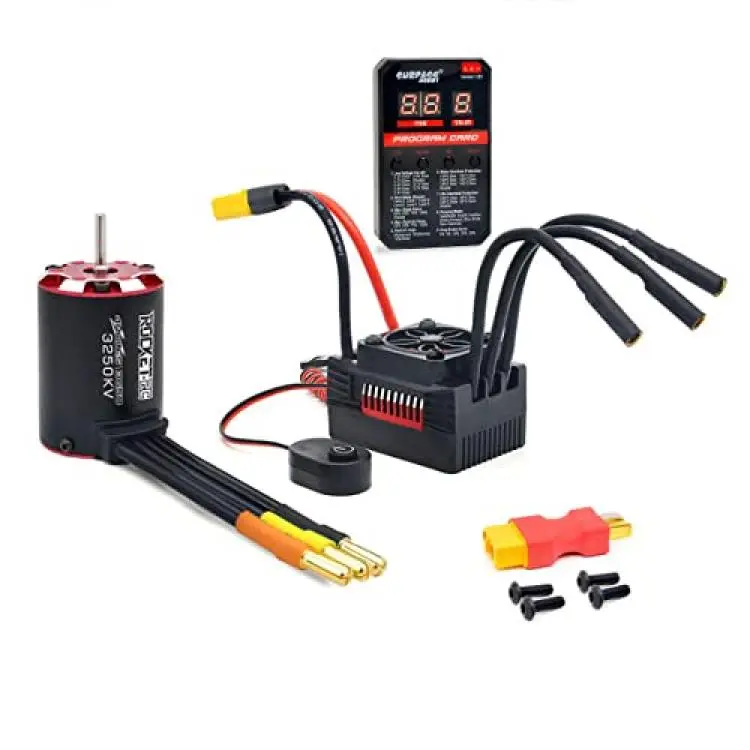

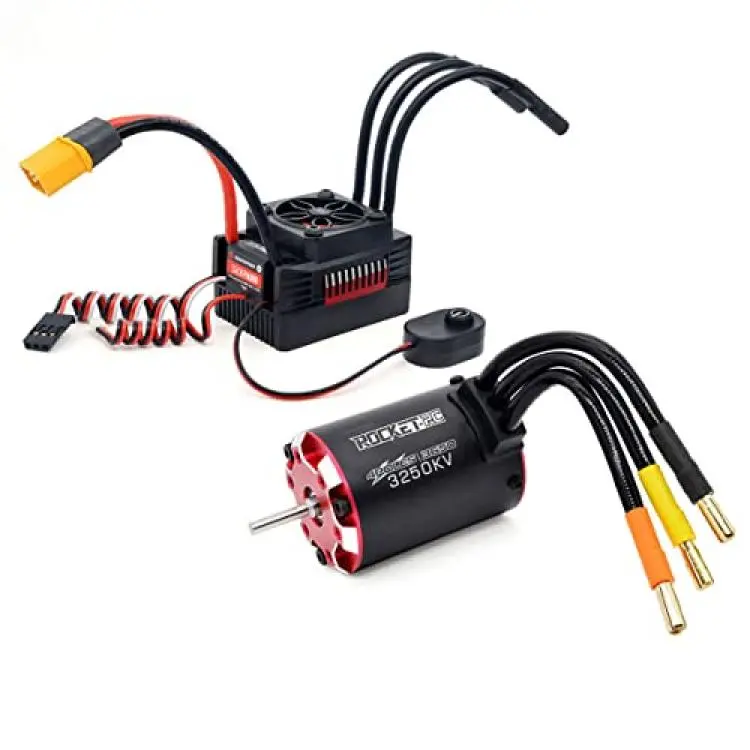

3650 3250KV Brushless Motor and 60A ESC Combo Set and Program CardÂ
1?4-level 12-slot high-torque motor design, CNC machining billet
2?6061-T6 aluminum heat sink, secondary oxidation treatment, high-end and fine appearance
3?High-purity copper coil, highest efficiency, temperature resistance 180-200 degrees
4?High-speed ABEC5 ultra-durable sealed bearings: low friction, low noise, high precision, and long-lasting use
5?Ultra-thin silicon steel sheet: excellent performance, high magnetic permeability, high silicon content, good insulation and heat resistancespecification
60A ESC:
1?ESC is waterproof and dustproof all day long Suitable for all-weather competitions
2?The strong resistant current capability, excellent heat dissipation.
3?Multiple protection features, widely compatible with for 1/10 RC car
4?Built-in switch mode BEC 5.8V/5A, compatible with high torque

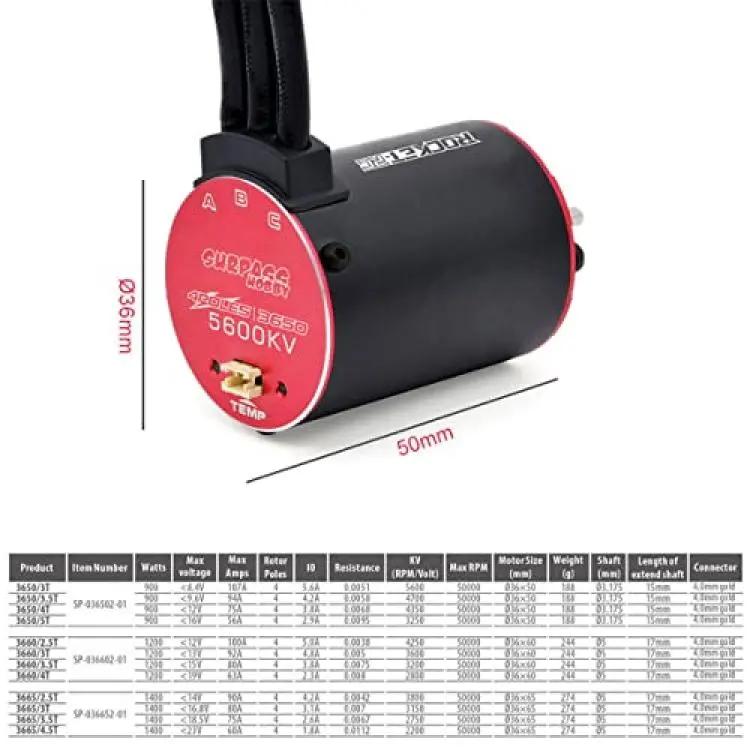

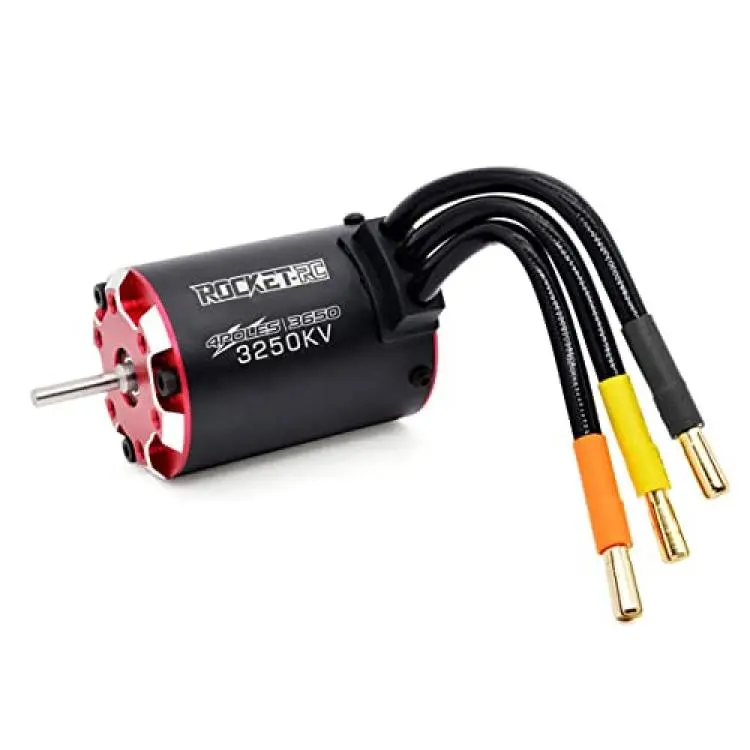

3250KV Motor Specifications:
Watts: 900W
Max voltage: <16V
IO :2.9A
Resistance:0.0095
Max RPM: 50000
Max Amps: 56A / KV(RPM/Volt): 3250KV
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Weight: 188g
Plug type: 4mm golden banana plug

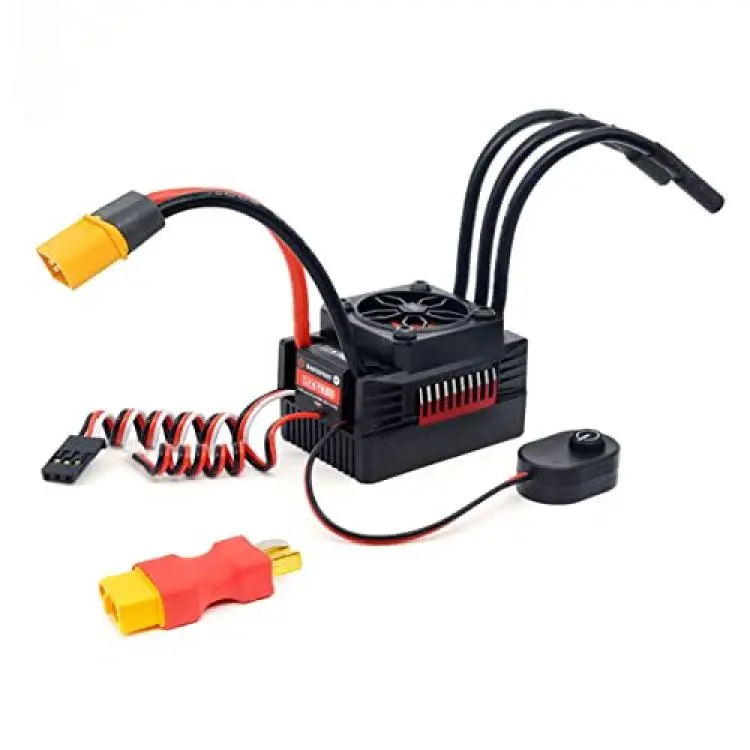

ESC specifications
Cont/Burst Current: 60A/360A
Motor Type: Sensorless brushless motor
BEC Output: 5.8V/5A(switch mode)
Battery: 2S -3S battery Lipo/ 4-9cells NiMH
Resistance: 0.0007ohm
Diamension:50 X 35 X 34mmÂ
Weight: 81g

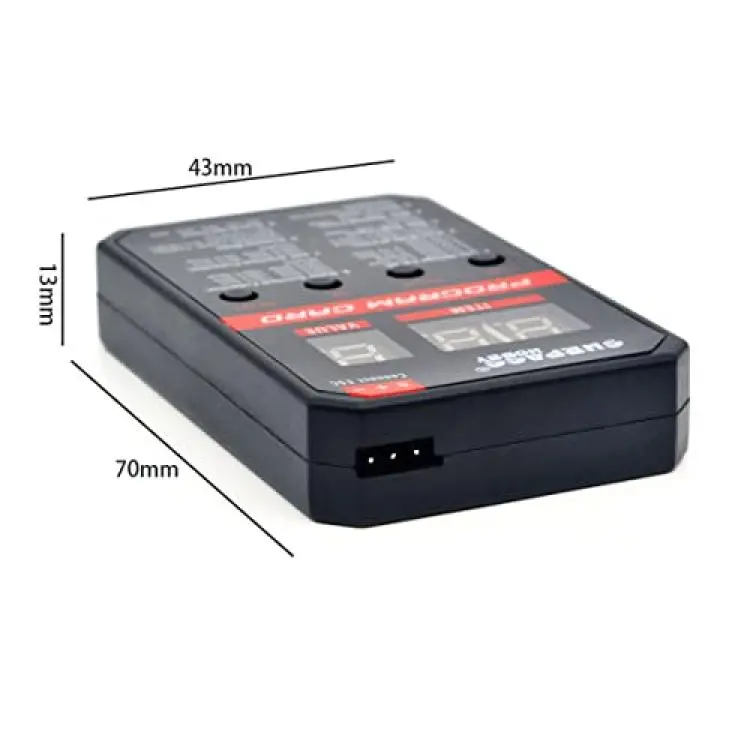

Specifications of RC Programming Card:
This program box is used to program the brushless ESC
Suitable esc: 25A, 35A, 45A, 60A, 80A, 120A ESC
Used with: 1/8,1/10,1/12,1/14,1/16,1/18 rc car
Size: 70x43x13mm
Working voltage/currren: 5-6.5V/100mAh
Package:
1 * 3650 3250kV brushless motorÂ
1 * 60A ESCÂ
1*Program Card 1*XT60
