FLASH HOBBY D2830EVO 1000KV RC Brushless Motor 2212 Outrunner Motor for UAV Aircraft RC Plane Fixed-Wing Helicopters & Robotic Arm Part
Availability: Pre-Order, Inquiry Price
About this product
*High Performance: High temperature resistant copper wire winding and high RPM imported NSK/ NMB bearing allow faster speeds, longer running time and extended motor life
*High Torque: 12N14P high torque motor design and CNC 6061-T6 aluminum bell heatsink can
*Superior Material: Precision balanced rotor, smoothness for best reliability and maximum RPM. RC electric motor is suitable for 10 inch prop model
*Parameters: The motor size is 28 x 30mm, shaft size is 3 x 45mm and the stator diameter is 22mm, which is compatible with 3~4S lipo

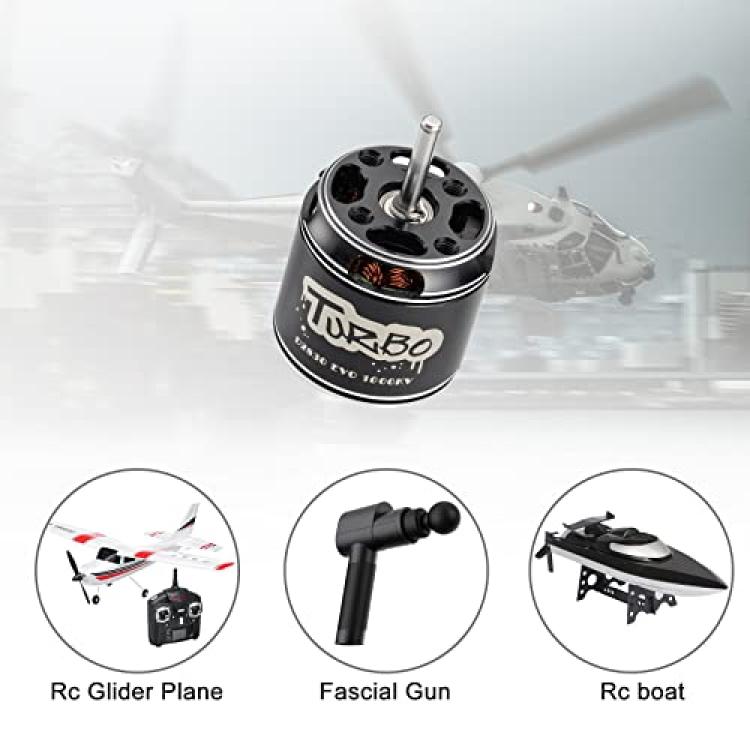

*Widely Application: RC brushless motor widely use for UAV Aircraft, Multicopters, RC Plane, Helicopter, Cradle Coffee Machine, Milk Tea Machine, electric drilling machine, mowing machine and robotic arm
Description
Features:
48H Level Magnet
Precision Balanced Rotor Test
High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB)Bearing
High Temperature Resistant Copper Wire winding

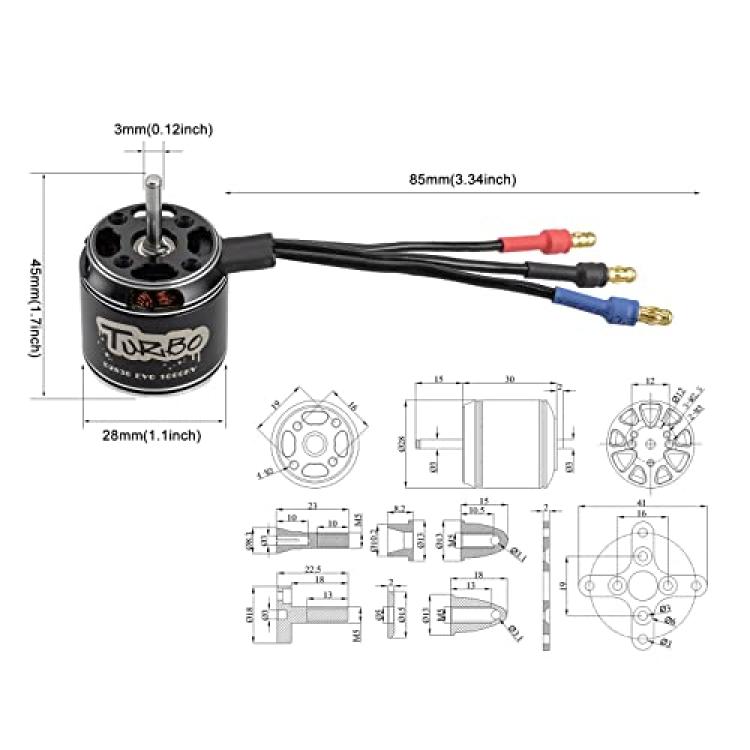

Specification:

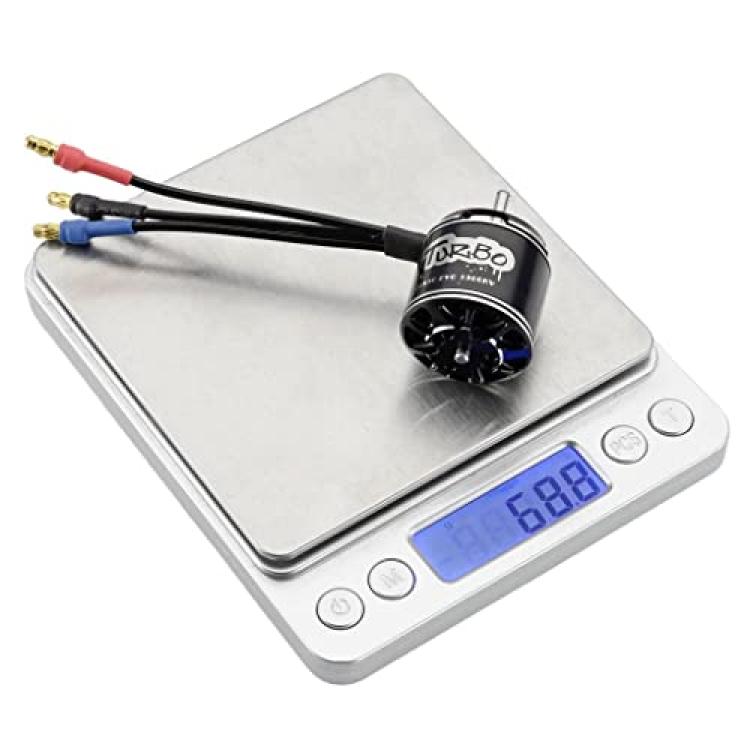

Weight: 68.1g(Including wires)
Motor Size: 28 x 30mm
Shaft Size: 3.0*45.0mm
Stator Diameter: 22mm
Stator Height: 12mm
Motor Mount: 16*19mm(M3*4)
Configuration: 12N14P
Working Temperature Range?-0?~+80?
Control Method: Use ESC And Adjust PWM signal For Control, PWM Adjustment Range 900- 2100US
1000KV
Max watts: 196.6w
Max current: 16.8A
No Load current: 0.86A
Resistance: 92.8m?
Battery: 3-4S Lipo
Suggested Prop: 10 inch prop
1300KV
Max watts: 324.4W
Max Current: 28.3A
No Load current: 1.24A
Resistance: 63m?
Battery: 3-4S Lipo
suggested Prop: 10 inch prop
