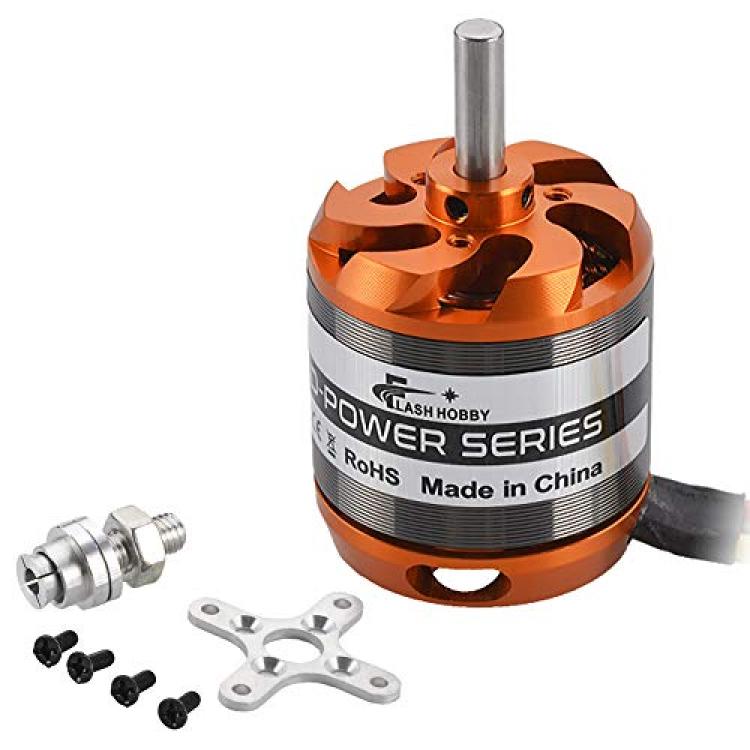

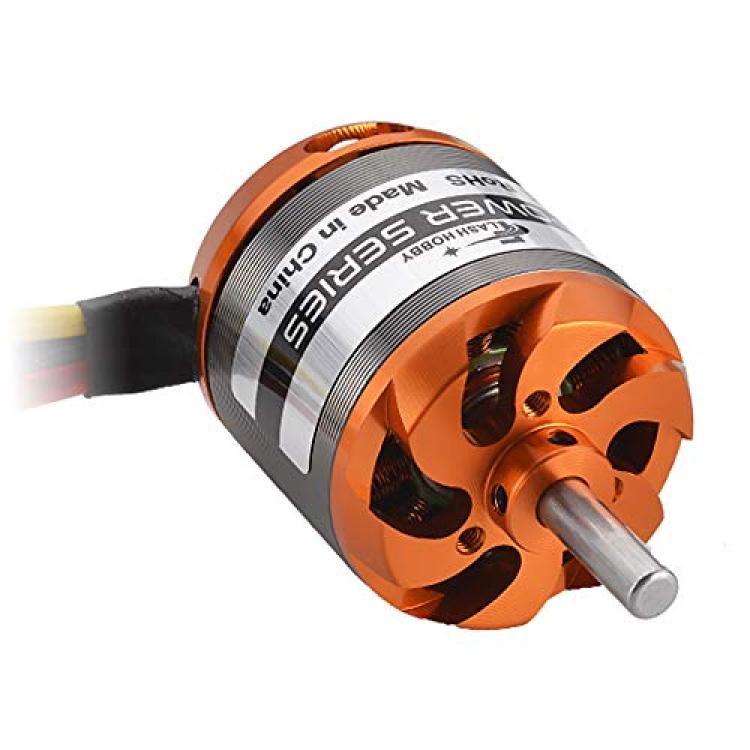

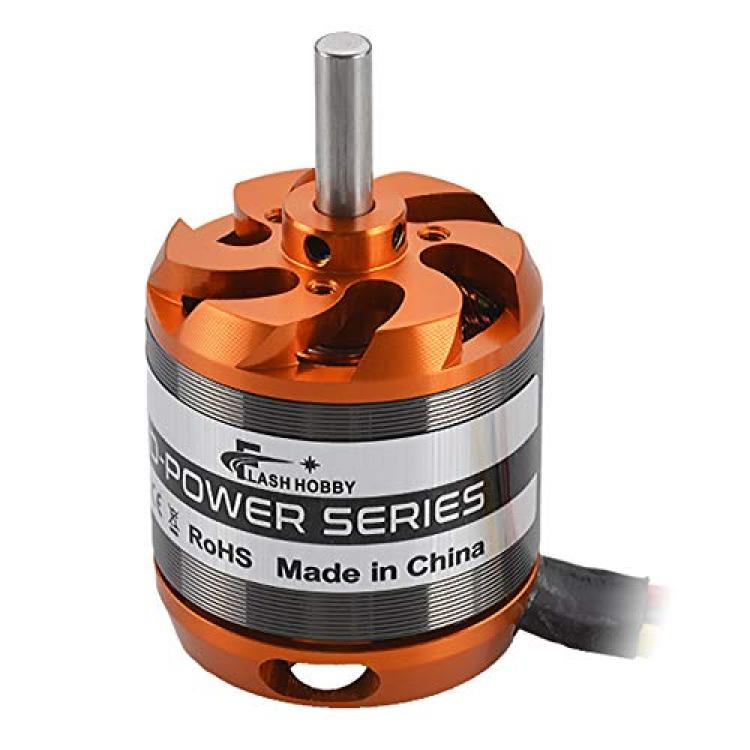

FLASH HOBBY D3542 Brushless Outrunner Motor 1250KV RC Electric Motor for Mini Multicopter RC Plane Fixed-Wing UAV Robotic Arm
Availability: Pre-Order, Inquiry Price
About this product
*CNC 6061-T6 aluminum bell, high RPM imported (NSK/NMB) bearing and 42SH level magnet, good insulation and hear resistance
*12N14P high torque motor design, strong thrust, more powerful than other ordinary brushless motors, high working efficiency
*Brushless Motor 3542 designed for the quads like 8 inch quad frames, which is with better efficiency in this range frames. Very suitable for your requirement with your drone
*Precision engineered for maximum energy conversion. Precision balanced rotor test, smoothness for best reliability and maximum RPM
*High temperature resistant copper wire winding, RC motor is 1250KV for fixed-wing helicopter, which is low friction, low noise and durable
Description

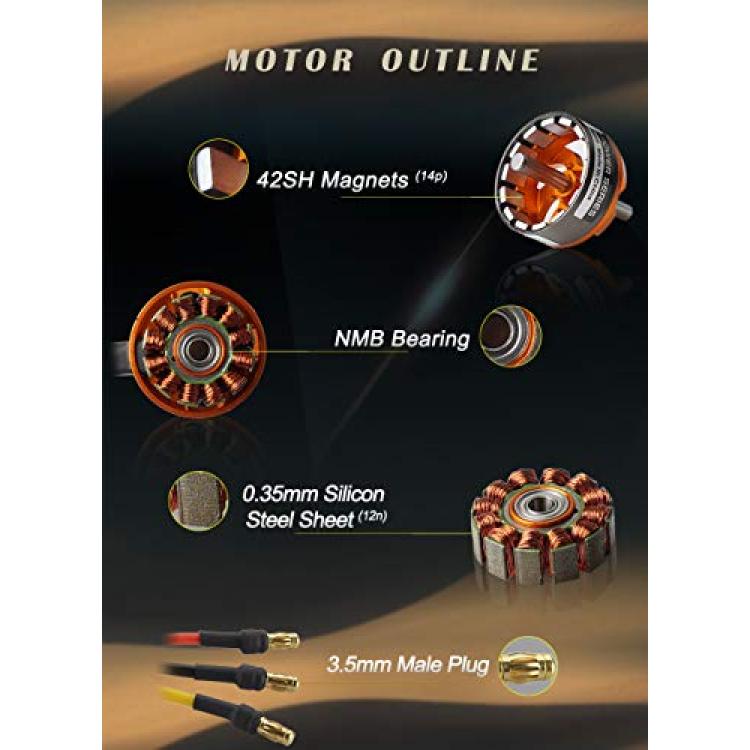

D3542 RC Brushless Motor Features:
42SH Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported (NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding
Widely Application:
UAV Aircraft Multicopters RC Plane Helicopter Cradle Coffee Machine Milk Tea Machine Electric Drilling Machine Mowing Machine Robotic Arm
Specification:
Battery: 3~5S lipo
Motor Weight: 130g

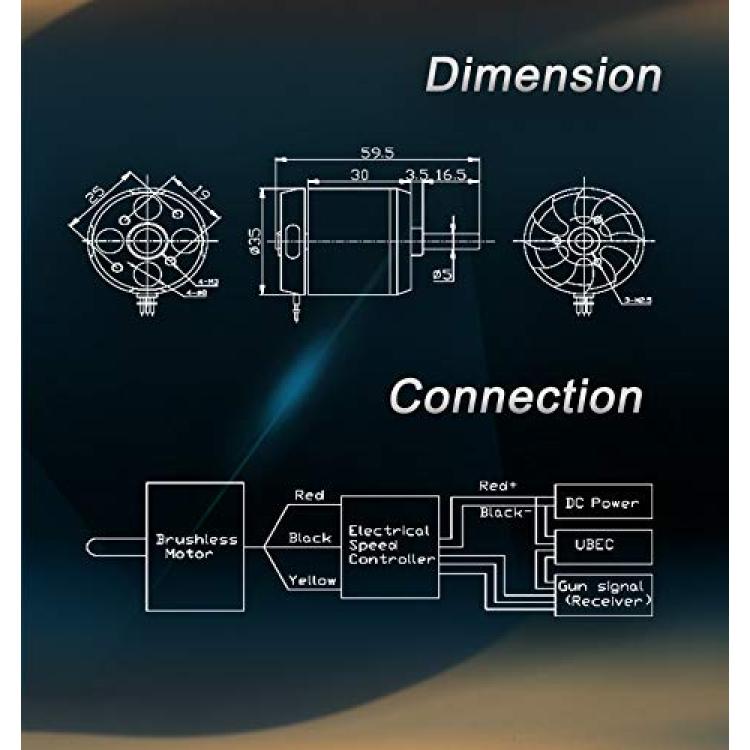

Motor Size: 35*42mm
Shaft Size: 5.0*59.5mm
Motor Mount: 16*19mm(M3*4)
Working Temperature Range: -0°C~+80°C
Configuration: 12N14P
D3542-1000KV:
Max Pull: 1260g
Volts: DC7.4~15.0V
Suggested ESC: 40A~70A
Maximum Power: 543W
Suggested Prop: 10 inch prop
D3542-1250KV:
Max pull: 1350g
Volts: DC7.4~15.0V
Suggested ESC: 40A~70A
Maximum Power: 690W
Suggested Prop: 8 inch prop
D3542-1450KV:
Max pull: 1420g
Volts: DC7.4~15.0V
Suggested ESC: 40A~70A
Maximum Power: 690W
Suggested Prop: 12inch prop
