D3536 Brushless Outrunner Motor 1000KV RC Electric Motor Fixed Wing Motor for Aircraft UAV Mini Multicopter RC Plane Helicopter Robotic Arm
Availability: Pre-Order, Inquiry Price
About this product
*D3536 series motor with high purity copper windings maximizes efficiency, lightweight, low noise, and higher thrust
*High torque motor designed for the quads like 11 inch quad frames, which is suitable for RC plane, aircraft, multicopter, helicopter, fixed wing and robotic arm

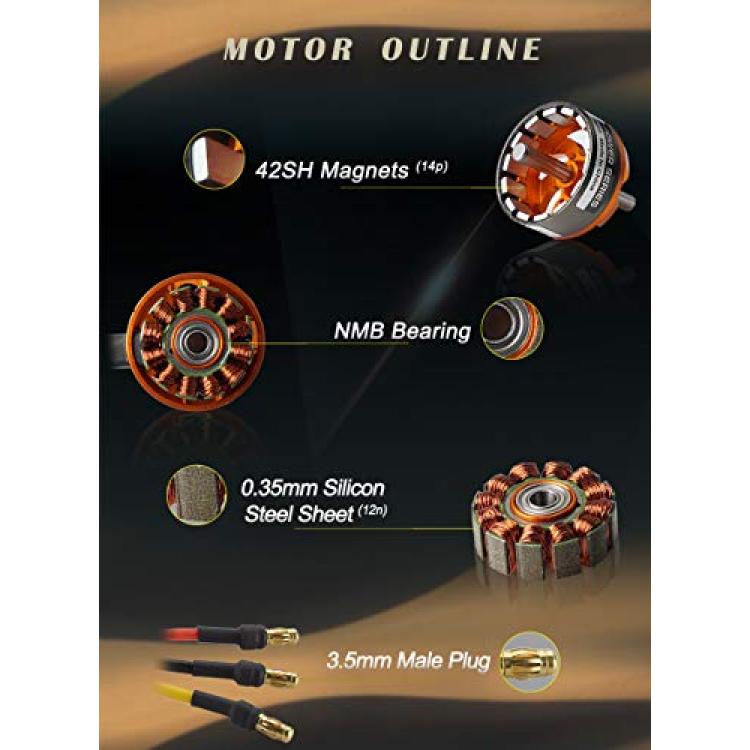

*12N14P high torque motor design, high RPM NMB bearing and CNC aluminum bell, which can has good insulation, heat resistance and high working efficiency
*Precision engineered for maximum energy conversion. Precision balanced rotor test, smoothness for best reliability and maximum RPM

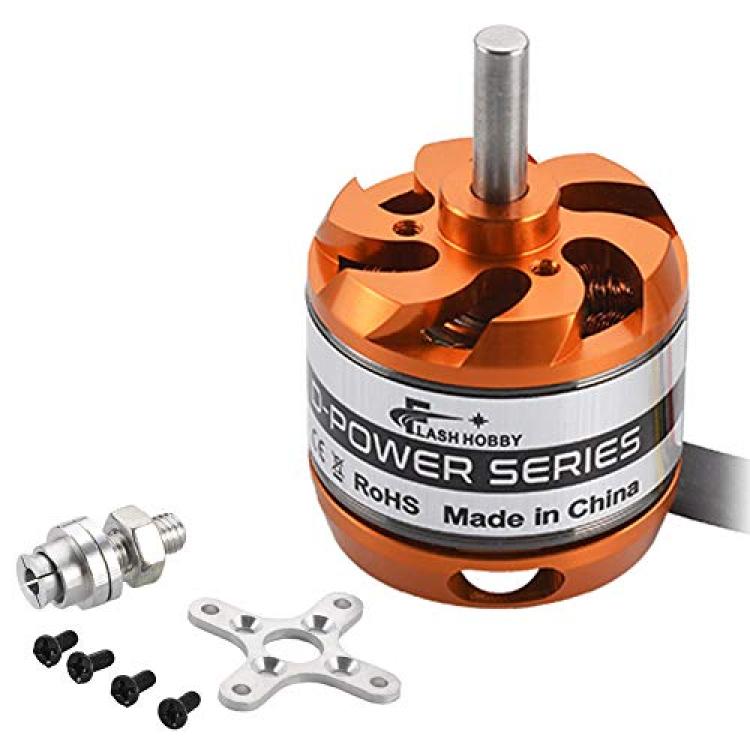

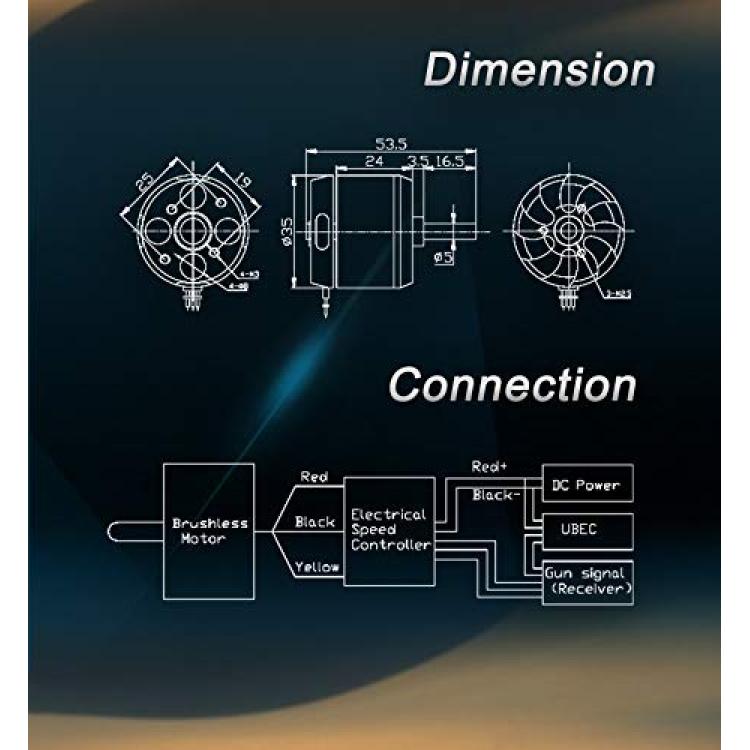

*Brushless outrunner motor size is 35 x 36mm, and the shaft size is 5 x 53.5mm, which is compatible with 2~4S lipo. Package included 1 x D3536 brushless motor and a set of accessories
Description
Weight: 102g Motor Size: 35 x 36mm Shaft Size: 5.0 x 53. 5mm Motor Mount 16 x 19mm (M3*4) Working Temperature Range : -0°C~+80°C D3536- -5-1450KV Motor Specification Max pull: 1380g Volts: DC7.4~15.0V Suggested ESC: 30A~70A Maximum Power: 655W Suggested Prop: 9 inch prop D3536- -6-1250KV Motor Specification Max pull: 1270g Volts: DC7.4~15.0V Suggested ESC: 30A~70A Maximum Power: 496W Suggested Prop: 10 inch prop D3536- -8-1000KV Motor Specification Max pull: 1160g Volts : DC7. 4~15.0V Suggested ESC: 30A~70A Maximum Power: 432W Suggested Prop: 11 inch prop D3536- -9-910KV Motor Specification Max pull: 1050g Volts: DC7 .4~15.0V Suggested ESC: 30A~70A Maximum Power: 370W Suggested Prop: 10 inch prop
