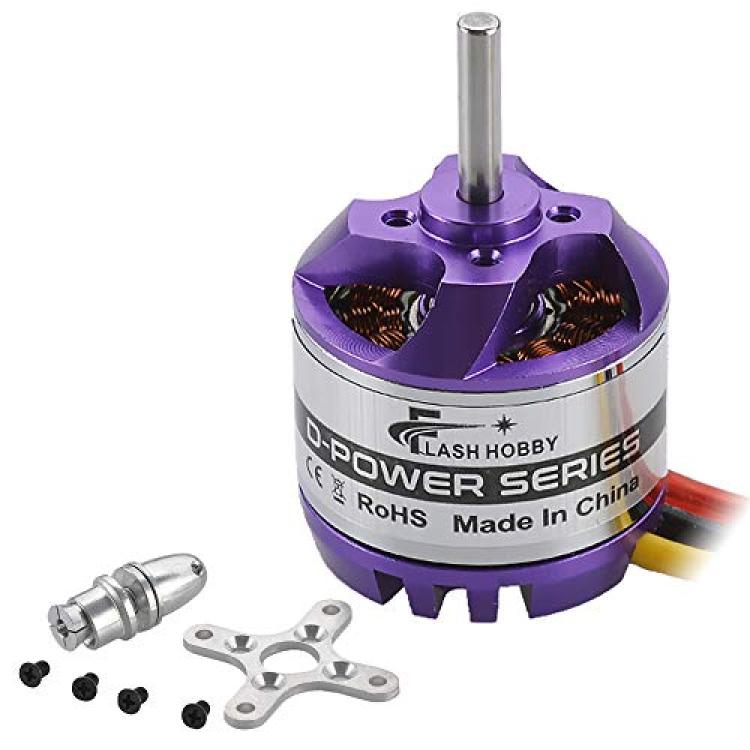

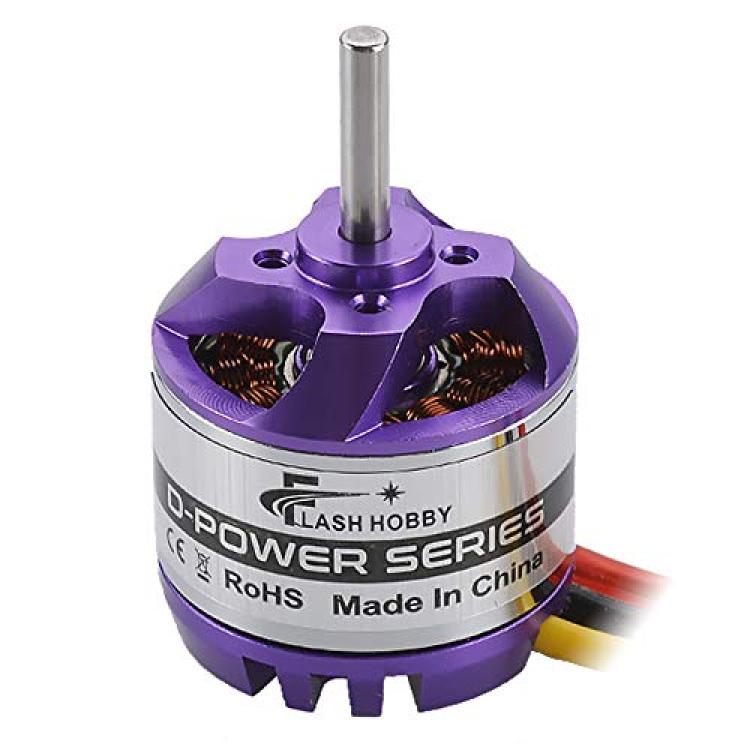

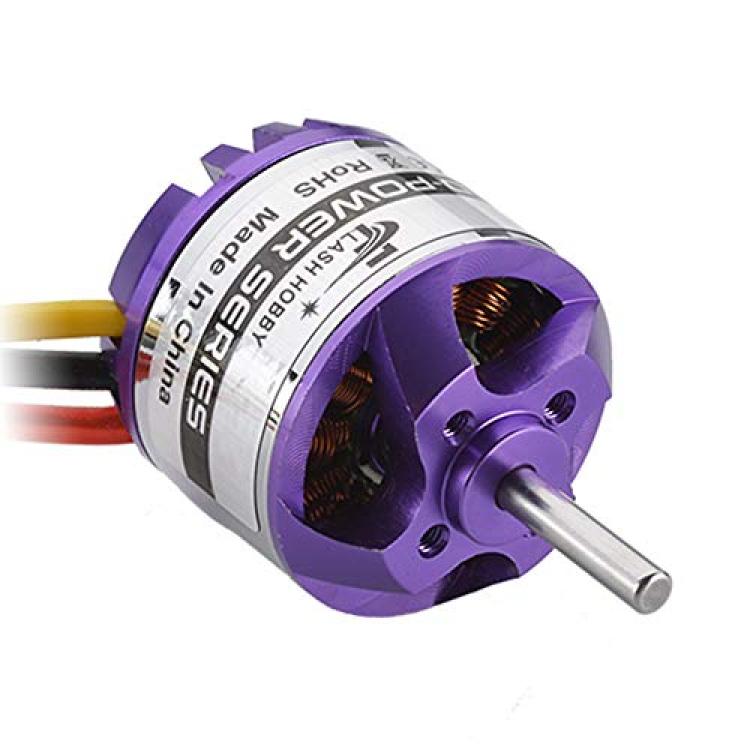

FLASH HOBBY D2830 Brushless Motor 1000KV Outrunner Motor RC Plane Motor for RC Aircraft Helicopter Multicopter Drone Fixed Wing
Availability: Pre-Order, Inquiry Price
About this product
*D2830 brushless motor is the upgraded of D series motor, 12N14P high torque motor design, which is smooth, reliable and powerful
*RC electric motor is 1000KV for fixed-wing helicopter, and the max pull can up to 890g. Shaft size is 3.17 x 45mm, recommend ESC 30A~40A and 8~10 inch propeller to use

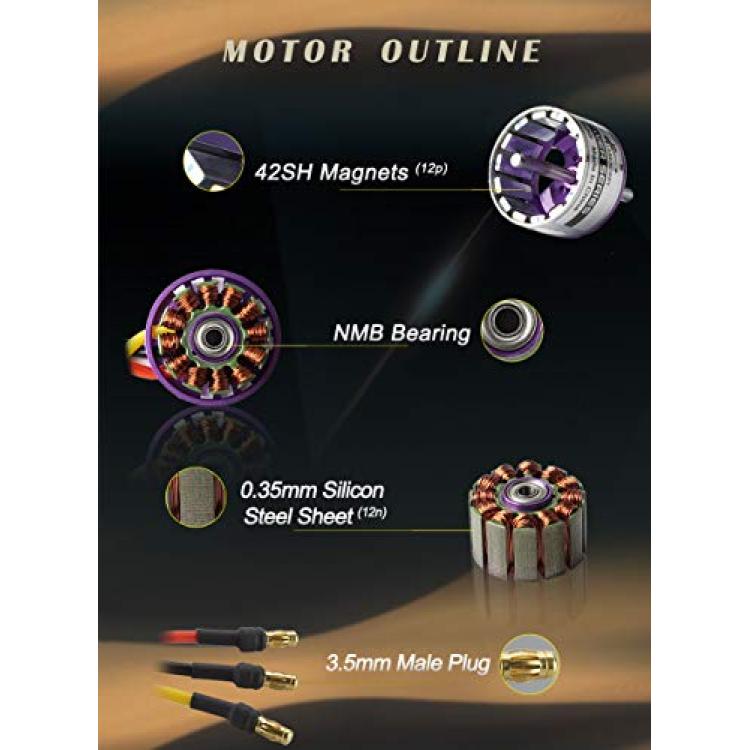

*High magnetic-42SH with NMB bearing, high magnetic permeability, good insulation, and heat resistance
*Each rotor was dynamically balanced with high speed, ensure the motor high-speed running without shake
*The motor is characterized by support 2~4S lipo. Suitable for multicopter, RC aircraft, helicopter, drone and fixed wing
Description
Specification:
Battery: 2-4S Lipo
Motor Weight: 52g

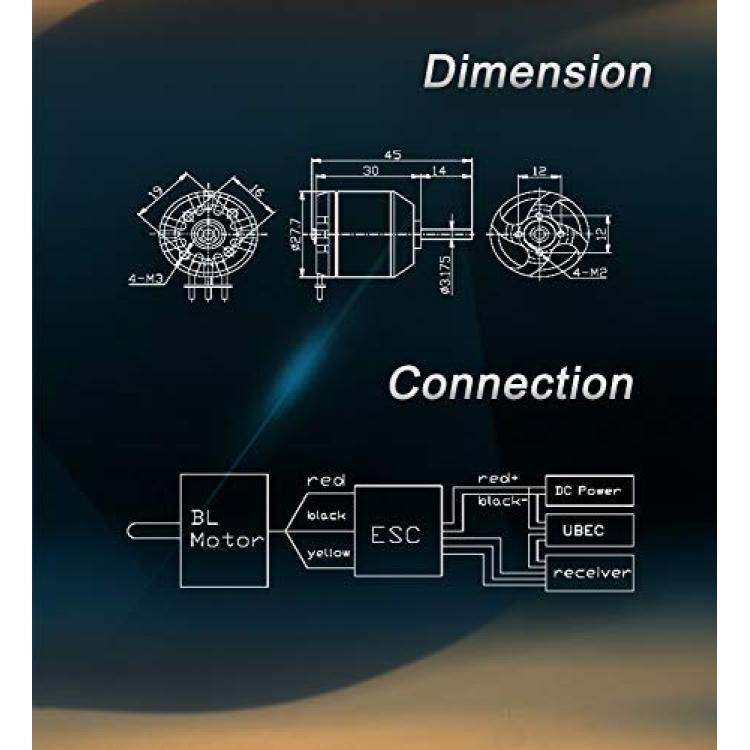

Motor Size: 28*30mm
Shaft Size: 3.17*45mm
Motor Mount: 16*19mm(M3*4)
D2830-1300KV Motor
Max pull: 930g
Volts: DC7.4~15.0OV
Suggested ESC: 30A~40A
Maximum Power: 275W
Suggested Prop: 7~9 inch prop
D2830-1000KV Motor
Max pull: 890g
Volts: DC7.4~15.00V
Suggested ESC: 30A~40A
Maximum Power: 210W
Suggested Prop: 8~10 inch prop
D2830-850KV Motor
Max pull: 875g
Volts: DC7.4~15.00V
Suggested ESC: 30A~40A
Maximum Power: 187W
Suggested Prop: 8~11 inch prop
