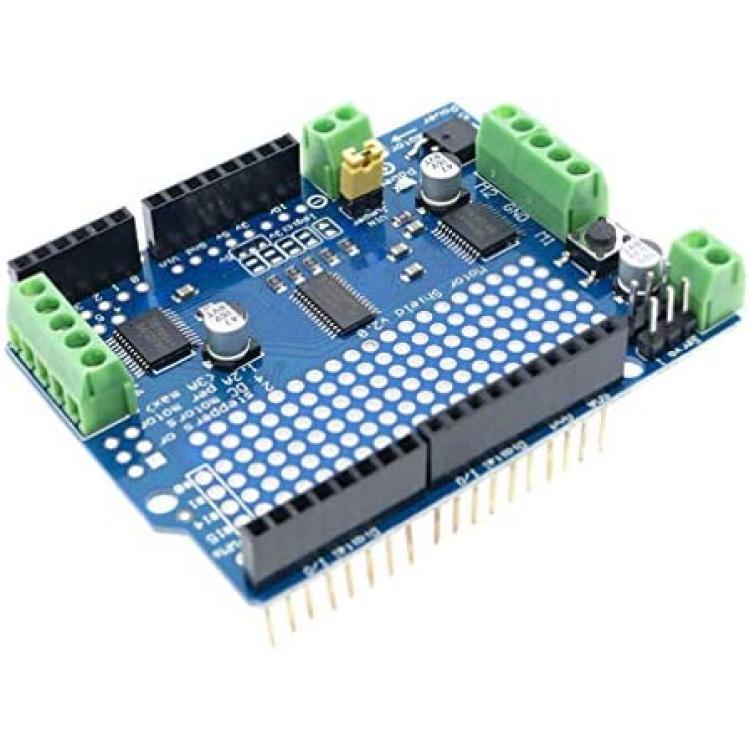

HiLetgo TB6612 Mosfet for Arduino Motor Shield Standard IIC I2C TB6612FNG Stepper Motor PCA9685 PWM Servo Driver Shield V2 Robot PWM Uno Mega R3 Replace L293D
About this product
*H-Bridges: TB6612 chipset provides 1.2A per bridge (3A peak)
*Chip: TB6612FNG motor driver chip
*Completely stackable design: 5 address-select pins means up to 32 stackable shields
*Characteristic: Arduino interface is fully compatible expansion
*Feature: Motors automatically disabled on power-up
Description
Description:
Make your own motor party with a motor shield and a fine assortment of motors! The original L293D Motorshield kit is one of our most beloved kits, We kept the ability to drive up to 4 DC motors or 2 stepper motors, but added many improvements:
Instead of a L293D darlington driver, we now have the TB6612 MOSFET driver: with 1.2A per channel and 3A peak current capability. It also has much lower voltage drops across the motor so you get more torque out of your batteries, and there are built-in flyback diodes as well.
Instead of using a latch and the Arduino\'s PWM pins, we have a fully-dedicated PWM driver chip onboard. This chip handles all the motor and speed controls over I2C. Only two pins (SDA & SCL) are required to drive the multiple motors, and since it\'s I2C you can also connect any other I2C devices or shields to the same pins. This also makes it drop-in compatible with any Arduino, such as the Uno, Due, Leonardo and Mega R3.
Completely stackable design: 5 address-select pins means up to 32 stackable shields: that\'s 64 steppers or 128 DC motors! What on earth could you do with that many steppers? I have no idea but if you come up with something send us a photo because that would be a pretty glorious project.
Tested compatible with Arduino UNO, Leonardo, ADK/Mega R3, Due, Diecimila & Duemilanove. Works with Mega/ADK R2 and earlier with 2 wire jumpers.
Package Included:
1 * TB6612FNG Stepper Motor Servo
