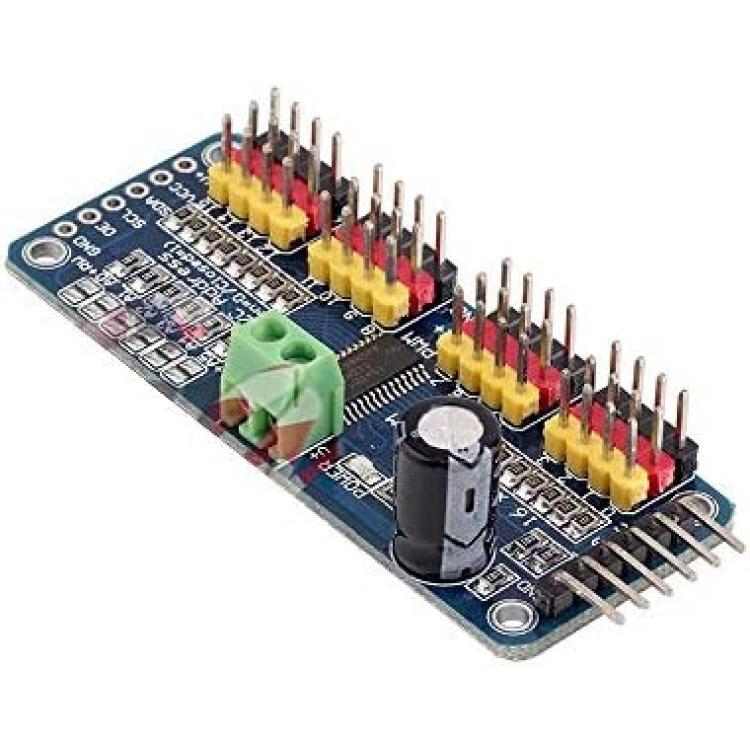

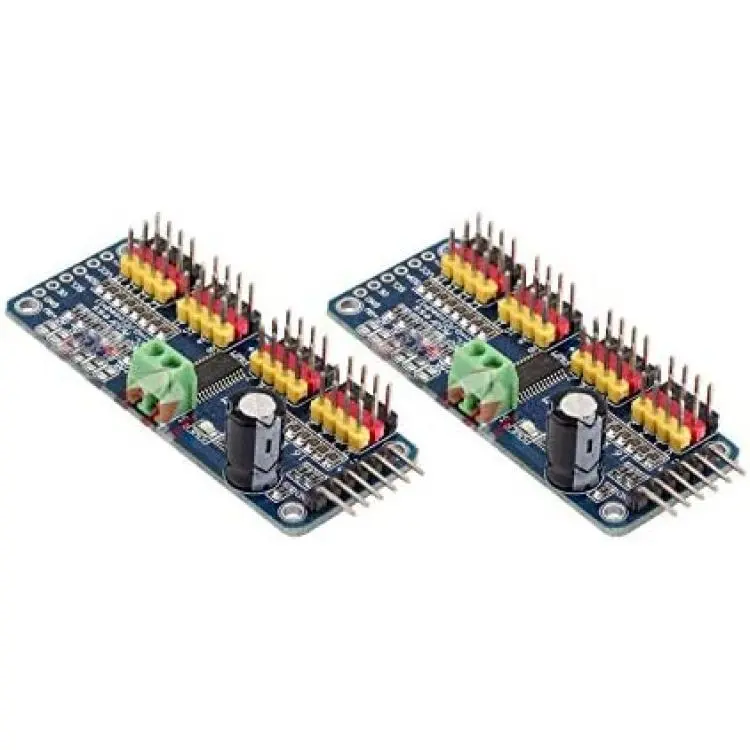

DEVMO 2PCS PCA9685 PWM Servo Motor Driver I2C IIC Module 12-bit 16 Channel Compatible with Servo Ar-duino
Description
- 100% Brand New
- Using only two pins, control 16 free-running PWM outputs
- You can even chain up 62 breakouts to control up to 992 PWM outputs
- It's an i2c-controlled PWM driver with a built in clock
- Using only two pins, control 16 free-running PWM outputs
- You can even chain up 62 breakouts to control up to 992 PWM outputs
- Unlike the TLC5940 family, no need to continously send the signal
- It's completely free running
- Board runs with 5V DC current but has input voltage only for the servo motors
- Separate voltage input allows you choose correct voltage for the application
- Adjustable frequency PWM up to about 1.6 KHz
- 12-bit resolution for each output
- 4us resolution at 60Hz update rate
- Configurable push-pull or open-drain output
- Output enable pin to quickly disable all the outputs
- Terminal block for power input (or you can use the 0.1" breakouts on the side)
- Reverse polarity protection on the terminal block input
- On board power indicating LED light
