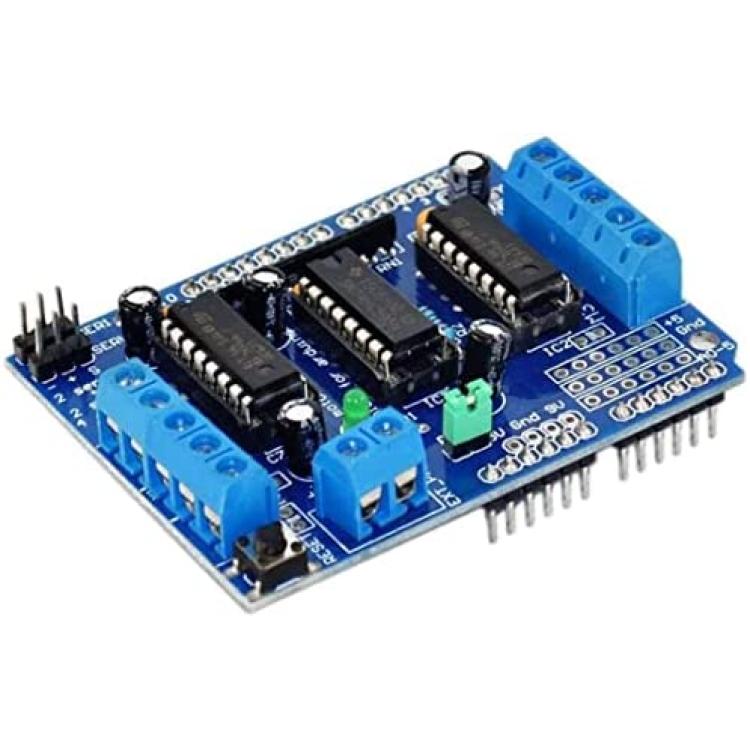

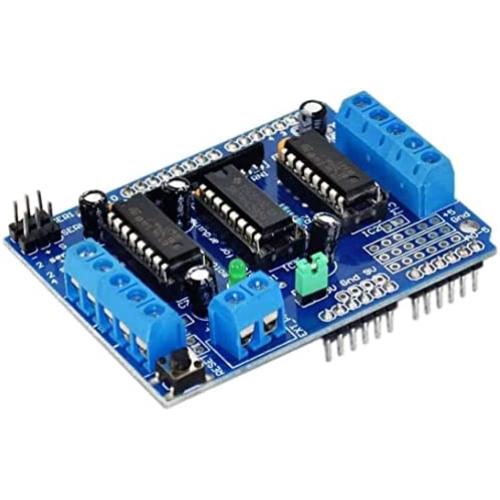

RedTagCanada Motor Driver Shield L293D for Arduino Raspberry Pi Duemilanove Mega UNO R3 AVR ATMEL- Arduino Compatible SCM & DIY Kits

Product description:
*L293D is a monolithic integrated, high voltage, high current, 4-channel driver.
Basically this means using this chip you can use DC motors and power supplies of up to 36 Volts, that's some pretty big motors and the chip can supply a maximum current of 600mA per channel, the L293D chip is also what's known as a type of H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
Features : *2 interface for 5V Servo connected to For high-resolution dedicated timer - no jitter!
*Can drive 4 DC motors or 2 stepper motors or 2 Servo.
*Up to 4 bi-directional DC motors with individual 8-bit speed selection.
*Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
*4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC.
*Pull down resistors keep motors disabled during power-up.
*Reset button.
*2 external terminal power interface, for separate logic/motor supplies.
*Tested compatible for Mega, Diecimila & Duemilanove.
Operating Voltage: 5V-12V
Current Sensing: 1.65V/A
Max current: 2A per channel or 4A max (with external power supply)
Tested compatible with Mega, Diecimila, & Duemilanove
Scope of application: Beginners, Experimental equipment platform, Interactive electronics, Robots.
Package Included:
1*L293D Motor Driver Shield
Legal Disclaimer:
1- This is not a brand name product, it is a high quality compatible with Arduino products
2- Logos on chips or board and color accuracy may be different than pictures depending on the shipment from the factory.
3- Please allow slight dimension difference due to different manual measurement.
