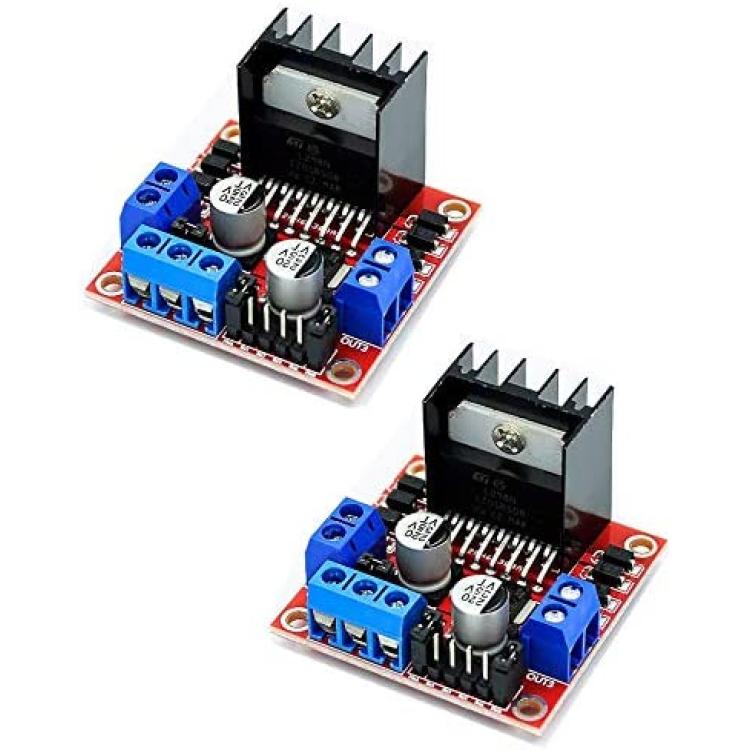

L298N motor driver controller board module, dual H-bridge robot stepper motor control, used for Arduino smart car power supply UNO MEGA R3 Mega2560 (2PCS)
Product Code: MM239
Availability: Pre-Order, Inquiry Price
About this product
*1. The module adopts ST L298N chipset, which has the characteristics of strong driving ability, low heat generation and strong anti-interference ability.
*2. The module can use the built-in 78M05 for electrical work through the drive power section. However, to avoid damage to the voltage regulator chip, when using a drive voltage of more than 12V, please use an external 5V logic power supply.
*3. The L298N module has a large-capacity filter capacitor, which can follow the current to protect the diode and improve reliability.
*4. Dual channel H-bridge driver working mode can improve working efficiency.
*5. To avoid damage to the voltage regulator chip, when using a drive voltage exceeding 12V, please use an external 5V logic power supply.
Description

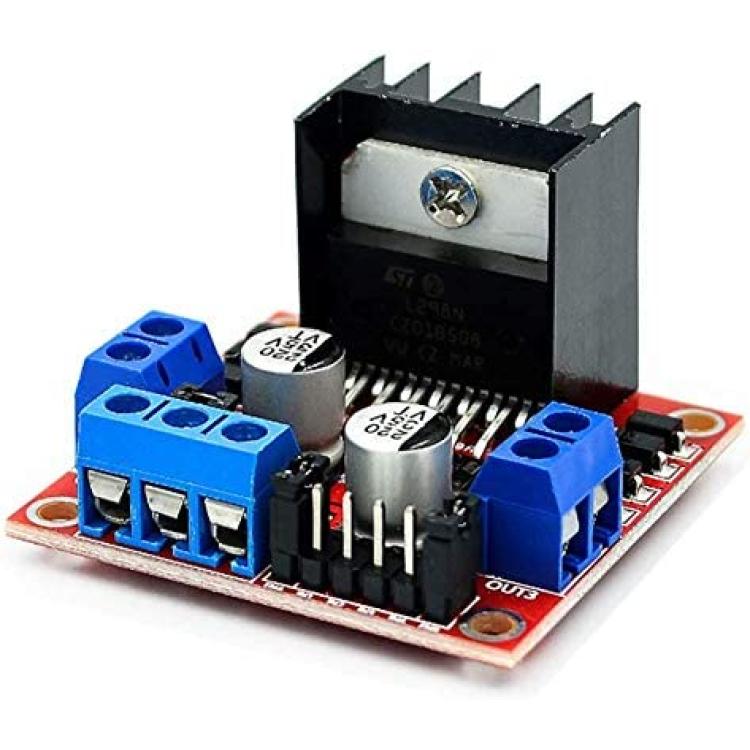

Module name: Double H-bridge motor drive module
Chip: L298N
Logic voltage: 5V
Logic current 0mA-36mA
Storage temperature: -20? to +135
Working mode: H-bridge driver (dual) driver
Voltage: 5V-35V
Drive current: 2A (MAX single bridge)
Maximum power: 25W

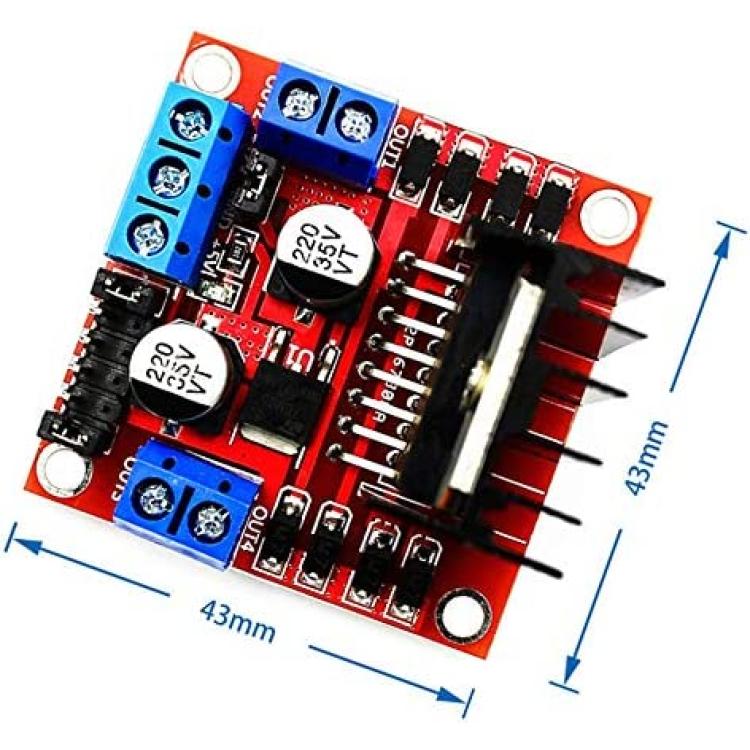

Dimensions: 43x43x27mm

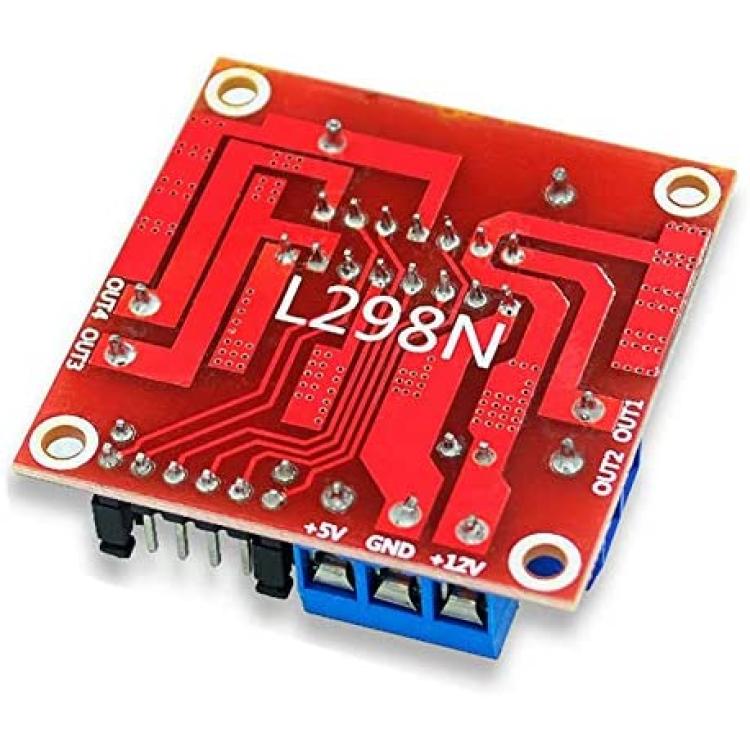

Note: This module has a built-in 5v power supply. When the drive voltage is 7v-35v, this power supply is suitable for power supply. Do not input voltage to +5v power interface, but lead 5v for external use. ENB enables IN3 IN4 to control OUT3 OUT4 when ENA enables IN1 IN2 to control OUT1 OUT2
