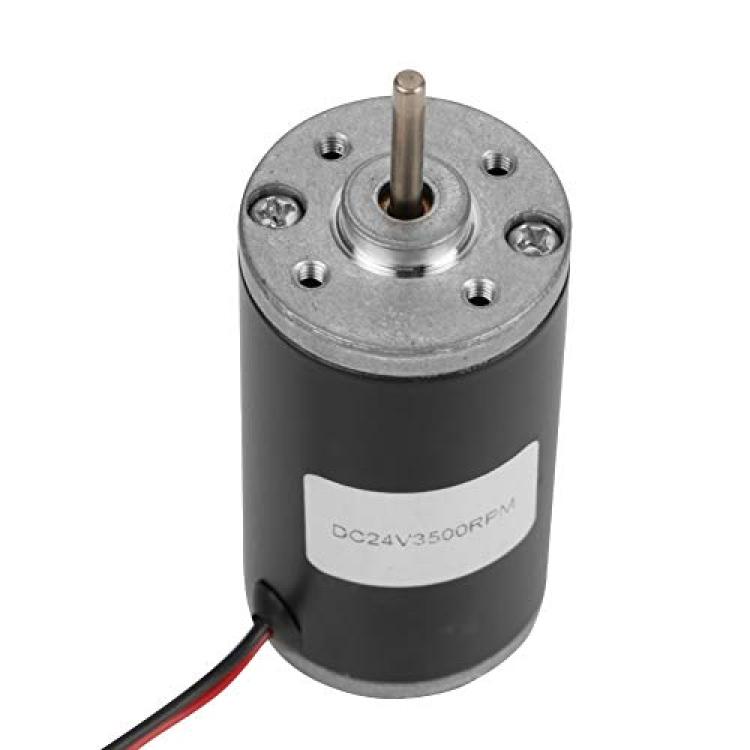

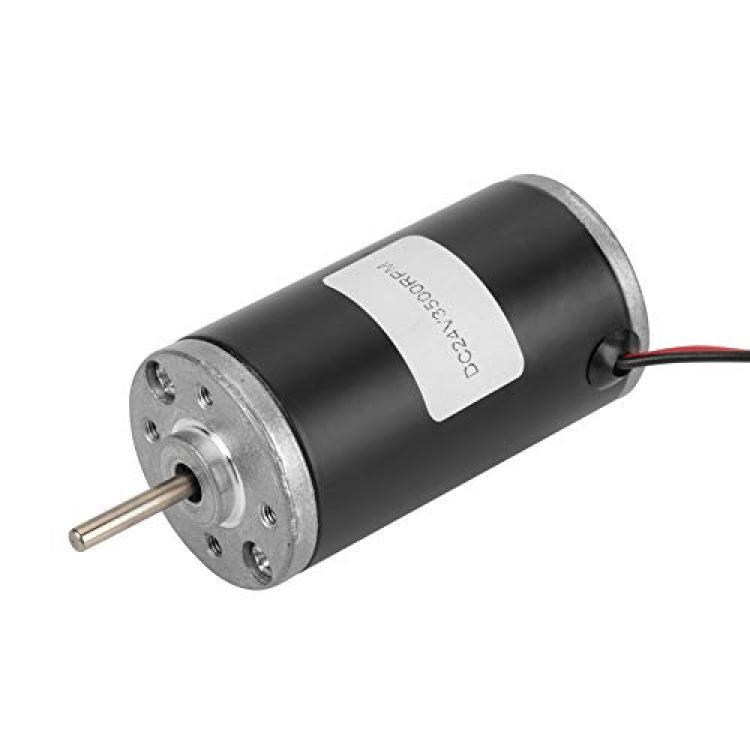

FTVOGUE 31ZY Permanent Magnet Dc Motor Reversible Electric Gear Motor for Diy Generator CW CCW 6V 12V 24V 3500-8000rpm [ 24V 3500rpm],Dedicated Motor

FTVOGUE 31ZY Permanent Magnet Dc Motor Reversible Electric Gear Motor for Diy Generator CW CCW 6V 12V 24V 3500-8000rpm [ 24V 3500rpm],Dedicated Motor

Name: FTVOGUE 31ZY Permanent Magnet Dc Motor Reversible Electric Gear Motor for Diy Generator CW CCW 6V 12V 24V 3500-8000rpm [ 24V 3500rpm],Dedicated Motor
SKU: MM3653
Availability: InStock

Product Code: MM3653
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Speed adjustment function: The stator windings of the motor are copper wire, CW/CCW control. Need for external direct current governor, it can achieve speed adjustment function.

*Wide application: This Permanent Magnet DC Motor Can be applied in small cutting bench, grinding machine, medical equipment and other mechanical equipment.

*Stable performance: It drives up the super smooth, almost no noise.High speed, long life, stable performance.

*Suiteable for Diy generator: It is a permanent magnet DC motor and also is ideal for DIY generator.

*Advantage: This DC motor supports clockwise and counterclockwise rotation. Adopted of pure copper wire coil, with low heat and low loss.

Description

Specifications:

Model: 31ZY
Outer diameter: 31mm / 1.22in
Shaft length: 19mm / 0.75in
Shaft diameter: 3mm / 0.12in
Type(Optional): 6V 4000rpm,12V 4000rpm,12V 8000rpm, 24V 3500rpm, 24V 5000rpm, 24V 8000rpm
Weight:165g
Wiring:
CW: red: "+", black: "-"
CWW: red: "-", black: "+"
Working voltage V(Optional) 6V 12V 12V 24V 24V 24V
No-load current mA ?180 ?350 ?110 ?200 ?200
?41
No-load speed Â rpm 4000 8000 4000 5000 8000 3500
Rated moment of force gf.cm 100 200 100 200 200 150
Rated speed rpm 3200 6500 3200 4000 6600 2500
Rated current A ?0.8 ?1.6 ?0.5 ?0.6 ?1.0 ?0.3
Locked-rotor moment of force gf.cm ?500 ?1000 ?600 ?850 ?1200 ?400
Locked-rotor current A ?3.3 ?6.5 ?2.3 ?2.0 ?4.4 ?0.8

Package includes:

1 x Motor

Tags: DC Motor, Permanent Magnet Motor, DIY Generator Motor, Electric Gear Motor, CW CCW Motor, Speed Control Motor, Small Motor, 6V 12V 24V Motor, Hobby Motor, Motor Speed Controller
