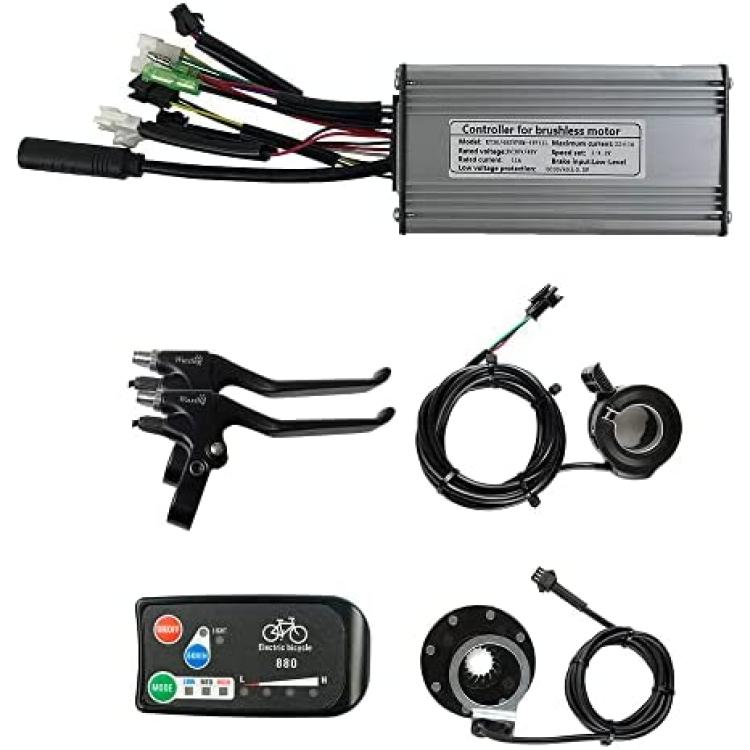

Ebike 22A Controller Kit Control System KT LED 880 Display 8PAS 130X Throttle E-Brake
Product Code: MM31893
Availability: Pre-Order, Inquiry Price
Description
Please do not replace the display and the controller at will. There is a communication protocol between the display and the controller. If it is different, it will not work normally.
We send you the complete control system, if you can't work normally after connecting, please don't worry, you can follow the tips below:
1. Check that all connectors are properly connected.
2. Check whether the power wiring is short-circuited and melted.
3. When connecting the motor, the connection between the controller and the motor needs to be tight.
If the above operation still does not work, you can contact us.

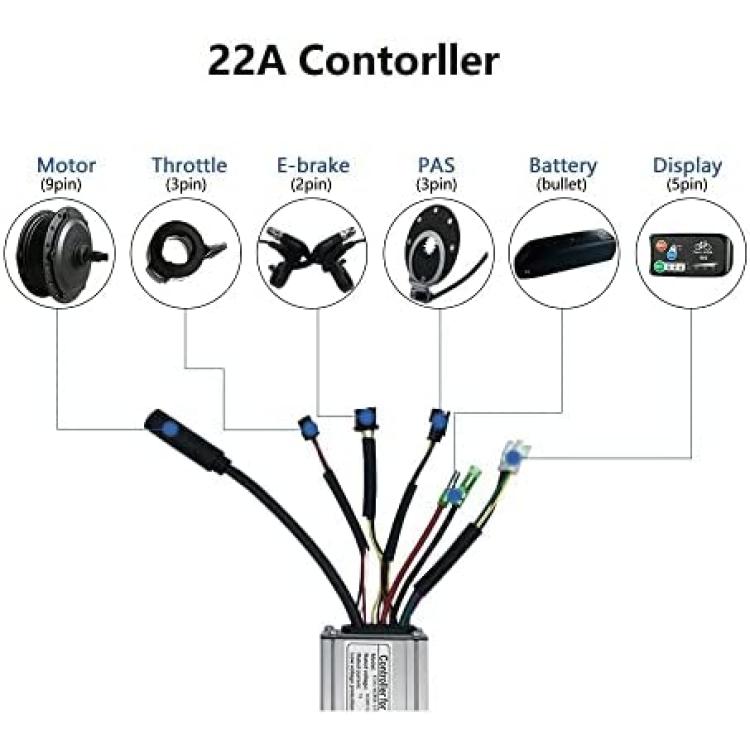

22A Controller?
BRAND:KT
COLOR:silver
DIMENSION:12.5*6.5*3.6 cm
MOSFET:6 mosfets
Maximum current:22±1A
Rated current:11A
Rated voltage:DC36V/48V
Speed set:1-4.2V
Brake input : Low-Level
Low voltage protection: DC30/40±0.5V
CABLE LENGTH: all about 13-18cm
WEIGHT: 350g
Type:KT-LED880 Display
Voltage:36V,48V
Color:Black
Weight:100G
Handlebar size for holding:?22.2mm
Cable Length:180cm(SM)
Plug:5 Pin Connector

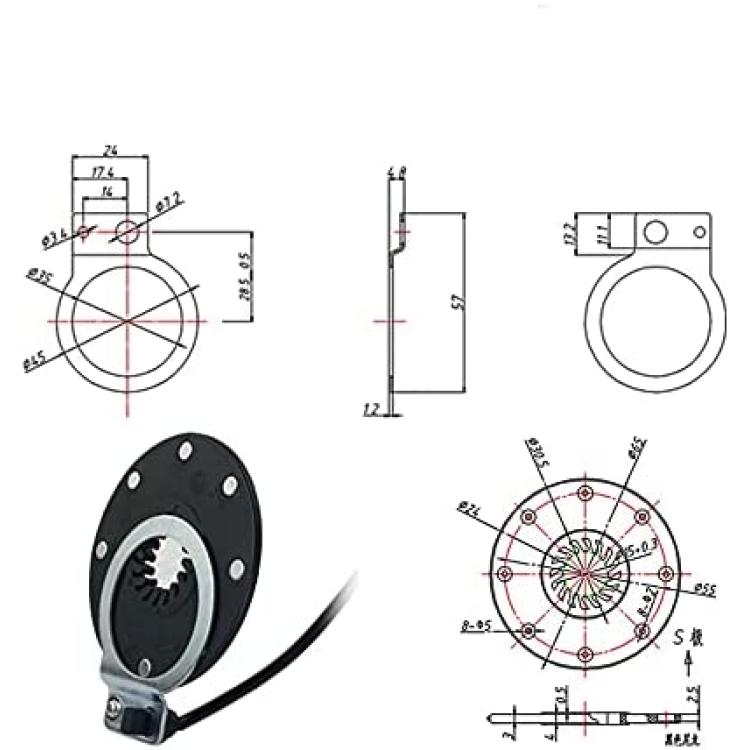

Type :BZ-4(8) 8 magnent PAS
Installation :Left
Voltage :36V,48V
Color :Black
Weight :50G
Magnet :8 Magnets
Cable Length :80cm including the connector
Plug :3 Pin Connector

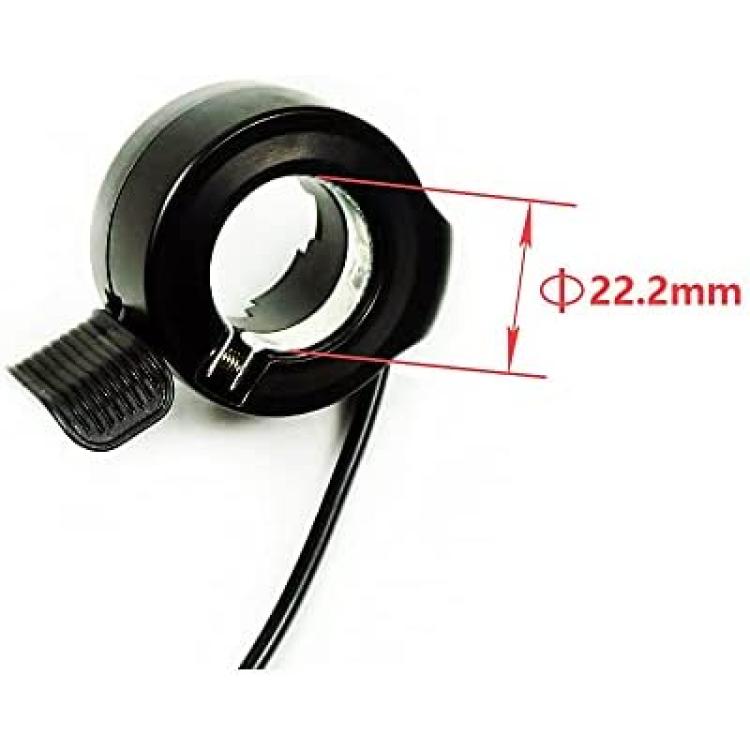

Type:130X Thumb Throttle
Voltage:24V,36V,48V,52V,60V,72V
Color:Black
Wire length:180cm(SM)
Plug:3 Pin Connector
Installation:Right and Left
Weight:100G
Type:47PDDCut Off Power Brake
Material:Aluminum Alloy
Installation:Left/Right
Size :L156mm W83mm H32mmAbout
Voltage :12V 24V 36V 48V 60V 72V
Color:Black
Weight:300G
Cable Length:SM 180cm including the connector
