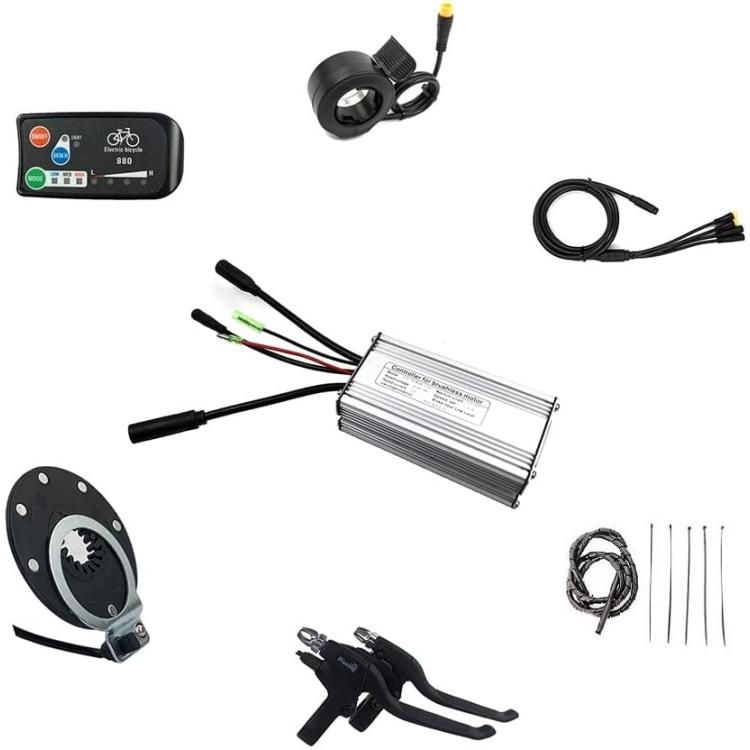

Ebike Controller System 22A Controller and LED880 Display WP Connector Conversion Kit for 500W/750W 36V/48V brushless Geared hub Motor

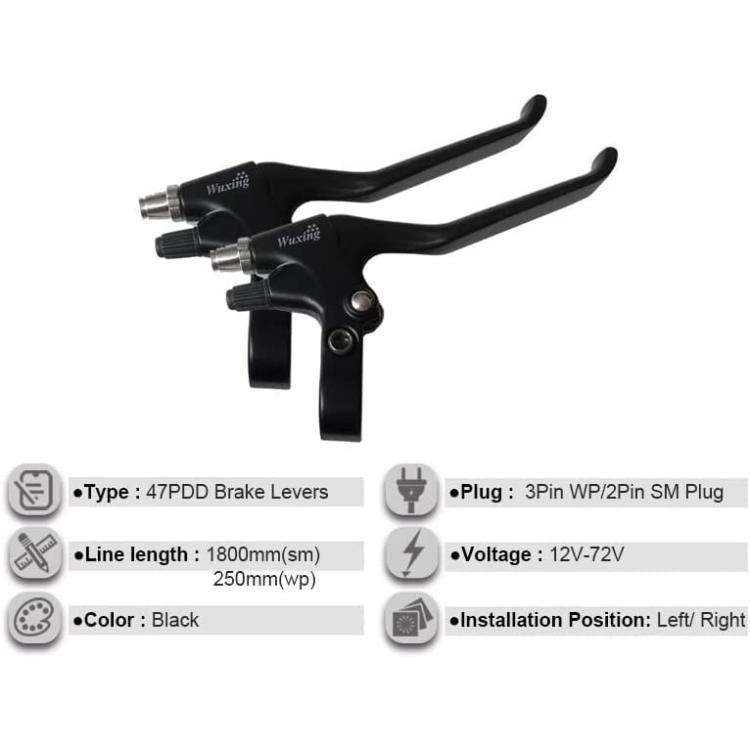

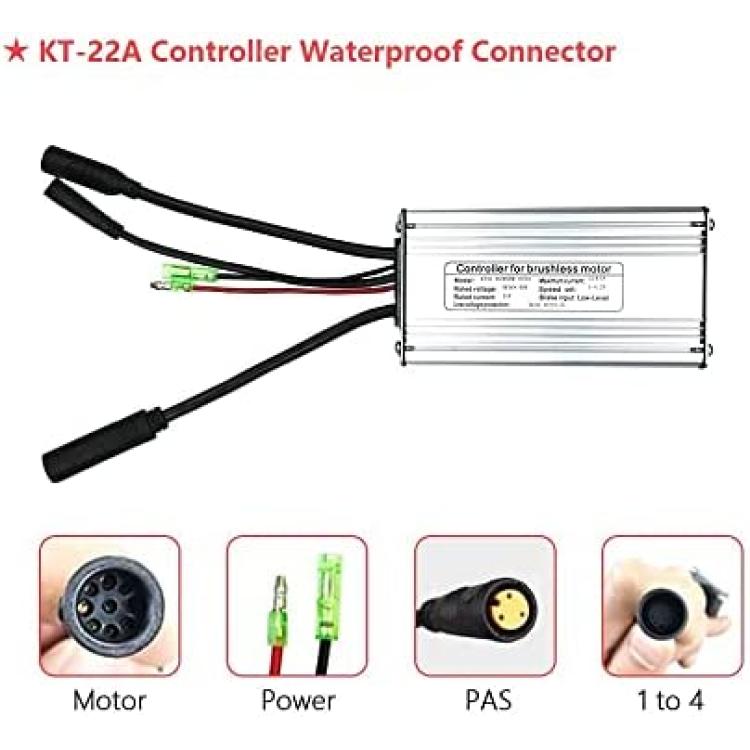

This product is a KT control system If the controller or display is damaged, the KT series must be purchased when replacing it22A Controller-Size:125mm*60mm*36mm-Work voltage:36V 48V-Rated current:11A-Max current:22A-Fits for hub motor:500WKT-LED880 DisplaySize:82mm*42mmVoltage:36V / 48VColor:BlackWeight:100gHandlebar size for holding:?222mmCable Length:15cm(WP)Plug:5 Pin Connector1to4 cableType : EB-BUS waterproof cable 1T4 [Connect to Left and right brakelever, Display ,Throttle ]Voltage : 24V 36V 48V 60V 72VColor : BlackWeight : 200G/PairCable length : about 16mCommon problem:(1) It must be ensured that the connecting machine between the motor and the controller is firmly connected(2) The installation distance of the pedal assist device is about 5mm(3) Ensure that the inner core of each plug is not damaged/broken/bentIf the display or controller in the control system is damaged and you reconfigure it, please pay attention to purchasing the product marked by KT, otherwise it will be incompatible due to the line sequence problemPlease note that our does not include:1 In normal use of this product, the slight scratches, traces or stains will not be affected;2 Damage caused by human factors: such as violent use, unauthorized disassembly, etc;3 Damage caused by external factors: such as traffic accidents, bad weather and other force majeure factors;
