VGEBY Motor Brushless Controller, Waterproof LCD Display Panel and Ebike Scooter Brushless Motor Speed Controller Kit
About this product

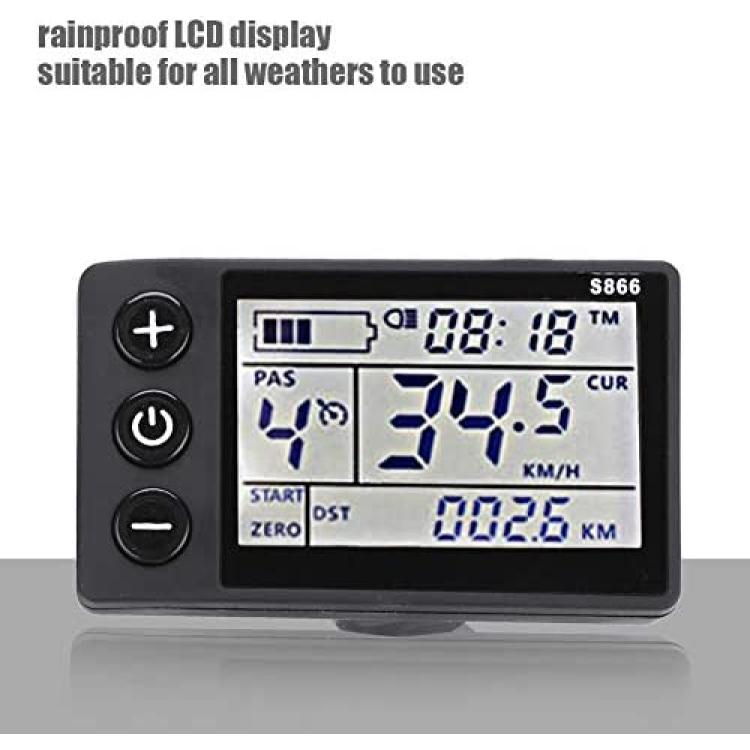

*PREMIUM MATERIAL: This LCD display adopts good quality materials, lightweight, rainproof, sturdy and durable. LCD backlight display can clearly show the state and data.
*PROTECT CIRCUIT: The Brushless Motor Controller shell is made of high quality metal with groove design, which can protect the inner circuit due to good heat dissipation feature to avoid thermal overloading.
*SENSITIVE CONTROL: The Electric Bike Motor Controller can provide steady speed and sensitive control of braking and direction changes.
*WIDE APPLICATION: This Electric Bike Motor Controller controller is suitable for electric bicycles, cars, scooters.
*GUARANTEE: If you are not satisfied with our product received, you can apply for unconditional return and refund within 180 days. In terms of any problem of this product, you can send emails to us at any time. We will reply you as soon.
Description
Features:
? PREMIUM MATERIAL: This display adopts good quality materials, lightweight, rainproof, sturdy and durable. LCD backlight display can clearly show the state and data.
? PROTECT CIRCUIT: The controller shell is made of high quality metal with groove design, which can protect the inner circuit due to good heat dissipation feature to avoid thermal overloading.
? SENSITIVE CONTROL: The brushless motor controller can provide steady speed and sensitive control of braking and direction changes.
? WIDE APPLICATION: This electric bicycle brushless motor controller is suitable for electric bicycles, cars, scooters.Â
? FUNCTIONAL: Can set the power?on password, control the lights, cruise and boost. The vehicle speed is divided into gears, the number of gear positions is 3/5/9 gears optional, and turn the handle can be selected to be divided into gears or not.
Specification:
Material: Plastic + LCD + Metal
Color: Shown as picture
Options: 1#24V-36V; 2#36V-48V
Power: 1#24V-36V: 250W; 2#36V-48V: 350W
Low-voltage Protection: 1#24V-36V: 19V/30V; 2#36V-48V: 30V-41V
Waterproof: Rainproof

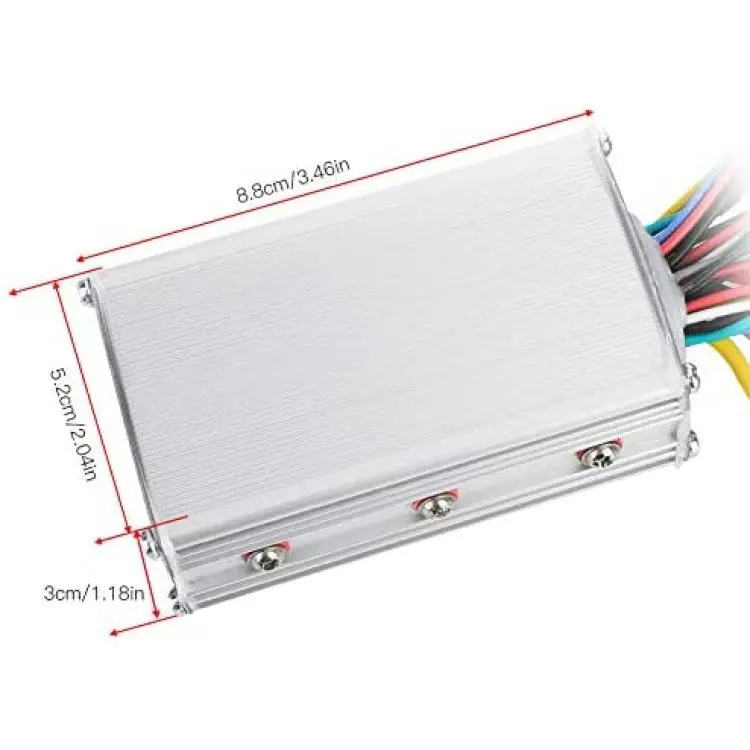

Controller Size: Approx. 8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inch
Display Size: Approx. 8 x 5cm / 3.15 x 1.97inch
Weight: Approx. 332g
Package List:

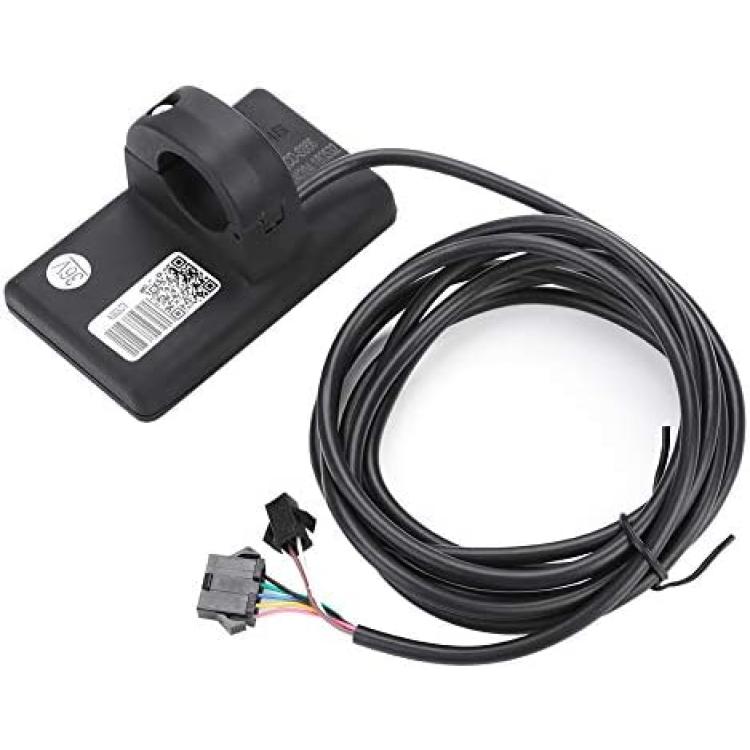

1 x LCD Display
1 x Controller
1 x Mount
Note:

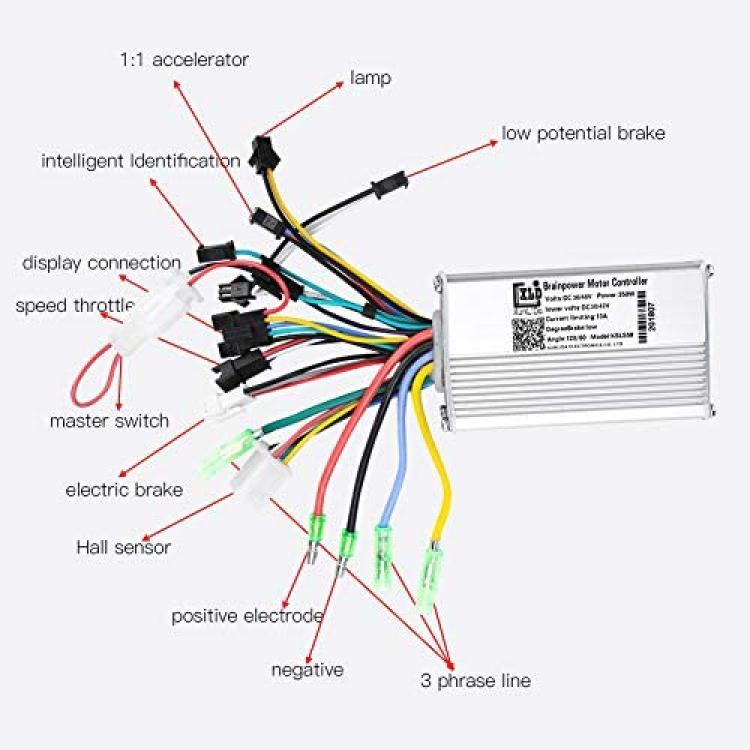

Each cable is labeled with color for different uses.
Red: power positive electrode
Black: power negative electrode
Yellow: power output
Brown: lamp positive electrode
White: lamp negative electrode
Blue: indicator signal
Green: signal receive
Note : P09-P15 menu is only valid in communication state
P09 : zero start non-zero start setting, 0 : zero start . 1 . Non-zero start .
P10 : The drive mode is set to 0 : Power Drive ( how much power is output is determined by the power file bit ,and the switch is invalid ).
1 : Electricdrive ( by turning the handle drive , when the power file bit is invalid ).
2 . Power Drive and Electric Drive Coexistence
P11 : Help sensitivity setting range : 1-24;
P12 : Help startintensity setting range : 0-5;
P13 : Power Magnetic Steel Disk Type Setting 5 , 8 , 12 Magnetic Steel Types;
P14 : Controller limit value set default 12A range : 1-20A;
P15 : Controller under voltage;
P16 : ODO zero setting length press key 5 seconds ODO zero;
P17 : 0 : No enabling cruising , 1 : enabling cruising . Automatic cruise optional ( valid for protocol 2 only );
P18 : Display speed ratio adjustment range : 50 " 150%;
P19 : 0 power bit , 0 : 0 , 1 : does not include 0;
P20 : 0 : 2 Protocol 1 : 5 S Protocol 2 : Standby 3 : Standby
Features:
? PREMIUM MATERIAL: This display adopts good quality materials, lightweight, rainproof, sturdy and durable. LCD backlight display can clearly show the state and data.
? PROTECT CIRCUIT: The controller shell is made of high quality metal with groove design, which can protect the inner circuit due to good heat dissipation feature to avoid thermal overloading.
? SENSITIVE CONTROL: The brushless motor controller can provide steady speed and sensitive control of braking and direction changes.
? WIDE APPLICATION: This electric bicycle brushless motor controller is suitable for electric bicycles, cars, scooters.Â
? FUNCTIONAL: Can set the power?on password, control the lights, cruise and boost. The vehicle speed is divided into gears, the number of gear positions is 3/5/9 gears optional, and turn the handle can be selected to be divided into gears or not.
Specification:
Material: Plastic + LCD + Metal
Color: Shown as picture
Options: 1#24V-36V; 2#36V-48V
Power: 1#24V-36V: 250W; 2#36V-48V: 350W
Low-voltage Protection: 1#24V-36V: 19V/30V; 2#36V-48V: 30V-41V
Waterproof: Rainproof
Controller Size: Approx. 8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inch
Display Size: Approx. 8 x 5cm / 3.15 x 1.97inch
Weight: Approx. 332g
Package List:
1 x LCD Display
1 x Controller
1 x Mount
Note:
Each cable is labeled with color for different uses.
Red: power positive electrode
Black: power negative electrode
Yellow: power output
Brown: lamp positive electrode
White: lamp negative electrode
Blue: indicator signal
Green: signal receive
