Yinhing Motor Controller, Waterproof LCD Display Panel Electric Bike Scooter Brushless Controller Kit (24V-48V)
About this product
*This display adopts good quality materials, lightweight, rainproof, sturdy and durable
*LCD display can clearly show the state and data, backlight enables you to see scree clearly in dim environment, buttons for quick operation, easy to use

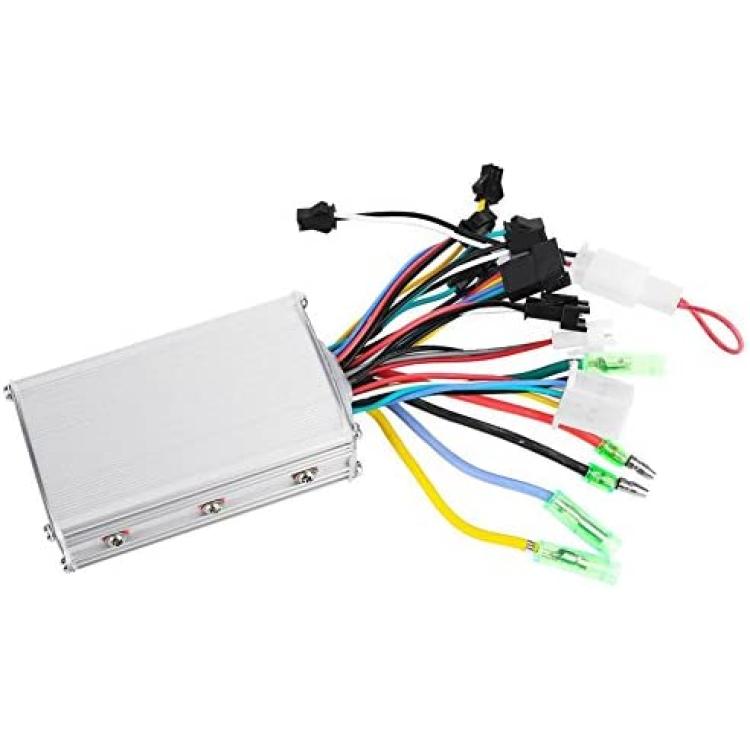

*The controller is brushless type, working silently and sensitive to the state of electric bike

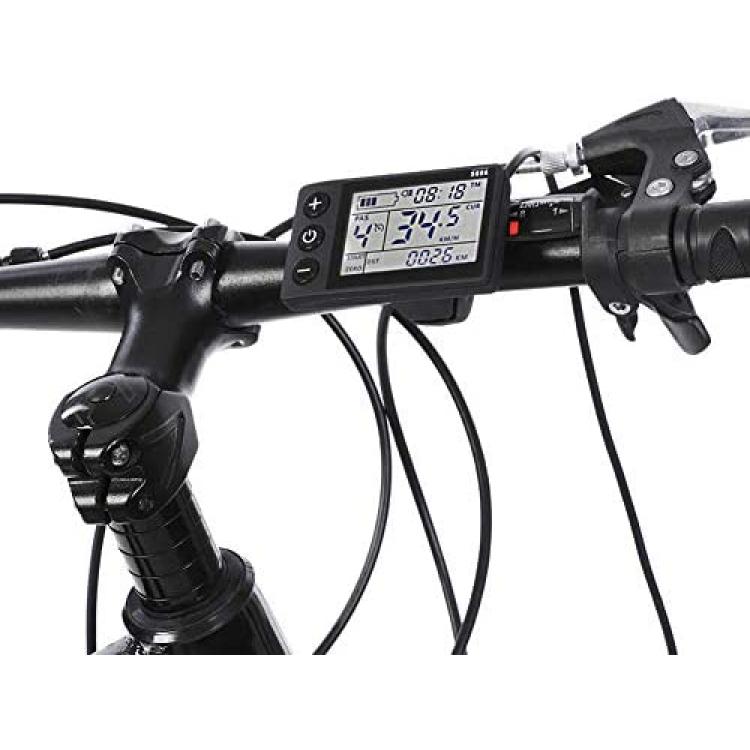

*Easy to install and use, comes with mount for LCD display and suitable for 22.5mm handlebar
*Suitable for electric bike, cars, scooters
Description
Features:
Specification:
Material: Plastic + LCD + Metal
Color: Shown as picture
Options: 1#24V-36V; 2#36V-48V
Power: 250W/350W
Low-voltage Protection: 1#24V-36V: 19V/30V; 2#36V-48V: 30V-41V
Waterproof: Rainproof

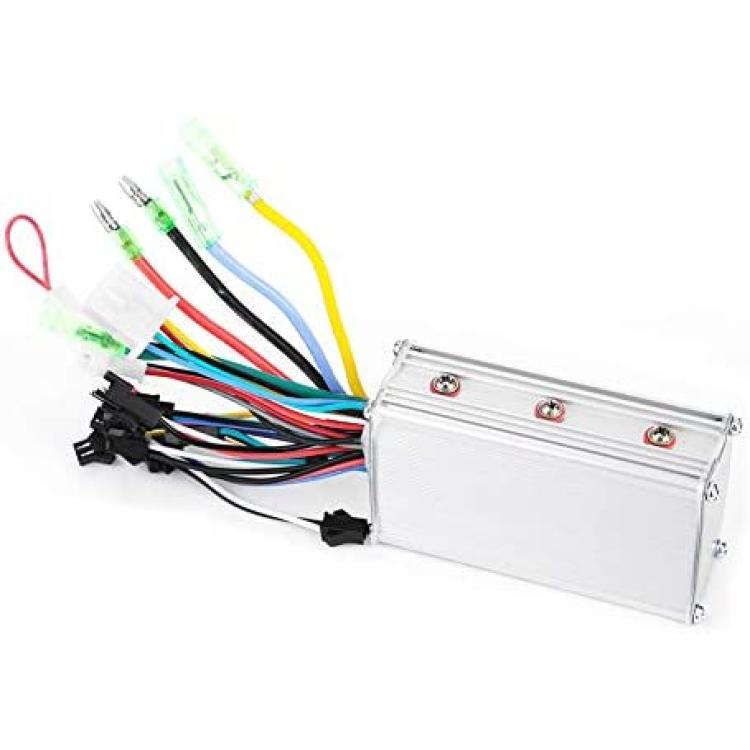

Controller Size: Approx. 8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inch

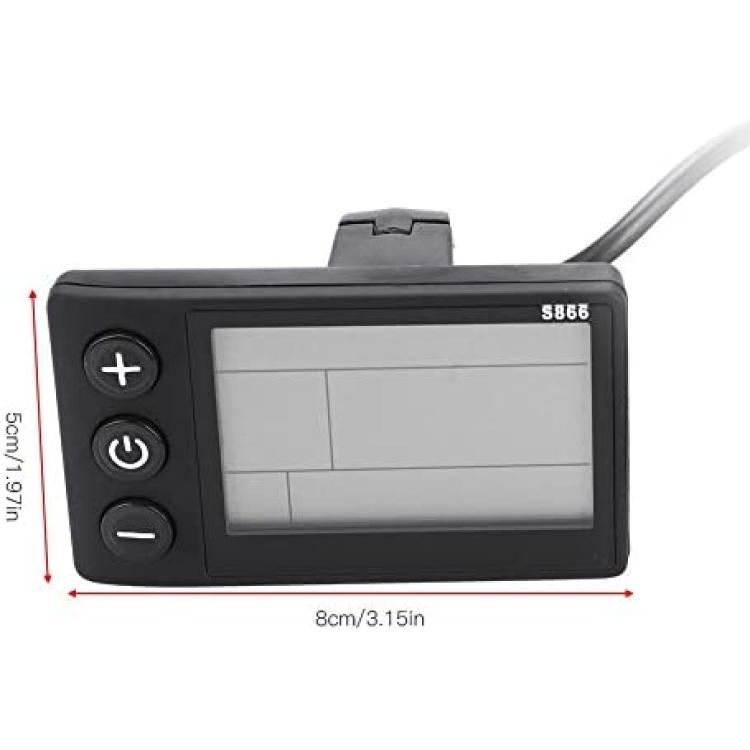

Display Size: Approx. 8 x 5cm / 3.15 x 1.97inch
Weight: Approx. 332g
Package List:
1 x LCD Display
1 x Controller
Note:
Each cable is labeled with color for different uses.
Red: power positive electrode
Black: power negative electrode
Yellow: power output
Brown: lamp positive electrode
White: lamp negative electrode
Blue: indicator signal
Green: signal receive
Please note that the controller model will be sent randomly, and make sure you will not mind before ordering
