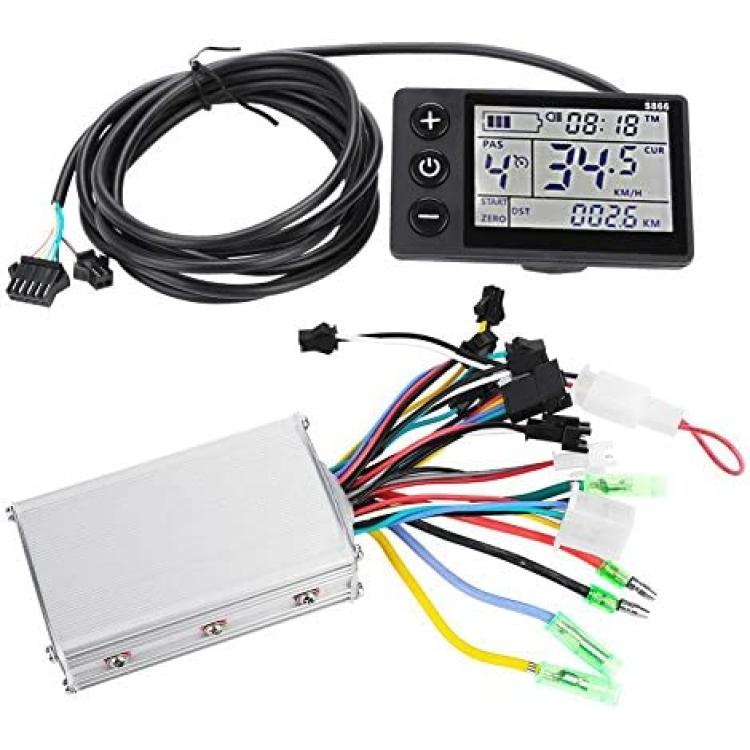

Electric Motor Controller, 24V-48V Waterproof LCD Display Panel Brushless Controller Kit for Electric Bicycle Scooter

Heat Dissipation
The scooter motor controller has good heat dissipation feature to avoid thermal overloading

Waterproof Design
The e-bike motor controller has excellent waterproof ability, won't easy to get wet when meet water, thus ensure low malfunction for long-term use

Optional Power
There are two type of motor controllers: one is for 24V/36V 350W, the other for 36V/48V 350W, you can choose the one according to your need
Specification:
Material: Plastic + LCD + Metal
Color: Shown as picture
Options: 1#24V-36V; 2#36V-48V
Power: 250W/350W
Low-voltage Protection: 1#24V-36V: 19V/30V; 2#36V-48V: 30V-41V
Waterproof: Rainproof
Controller Size: Approx. 8.8 x 5.2 x 3cm / 3.46 x 2.04 x 1.18inch
Display Size: Approx. 8 x 5cm / 3.15 x 1.97inch
Weight: Approx. 332g


Package List:
1 x LCD Display
1 x Controller
1 x Mount


Note:
Each cable is labeled with color for different uses.
Red: power positive electrode
Black: power negative electrode
Yellow: power output
Brown: lamp positive electrode
White: lamp negative electrode
Blue: indicator signal
Green: signal receive
