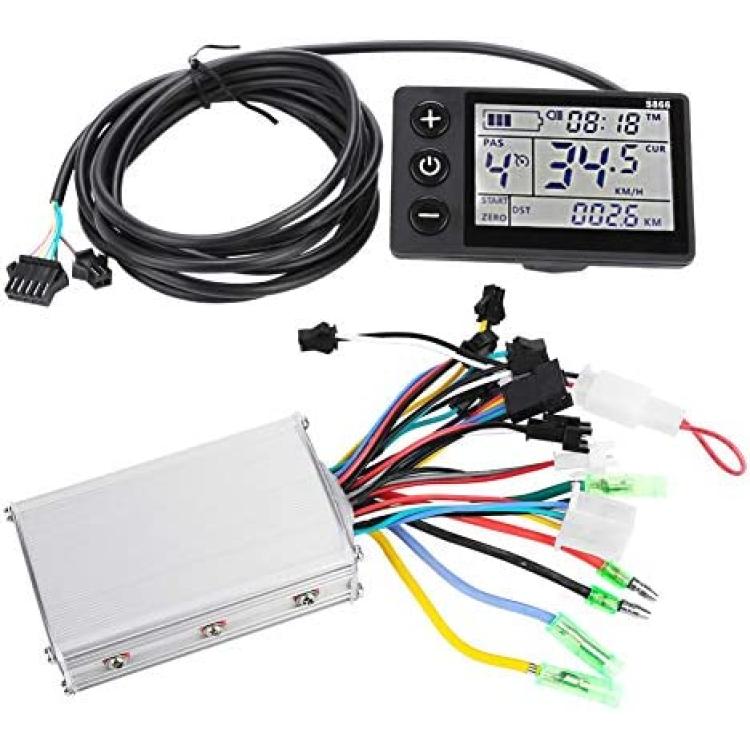

Yunir Brushless Motor Controller, Waterproof 24V-48V Motor Controller, LCD Display Electric Bike Scooter Brushless Controller Kit(36V/48V 350W)
About this product
*This display uses high quality materials, is light, rainproof, robust and durable

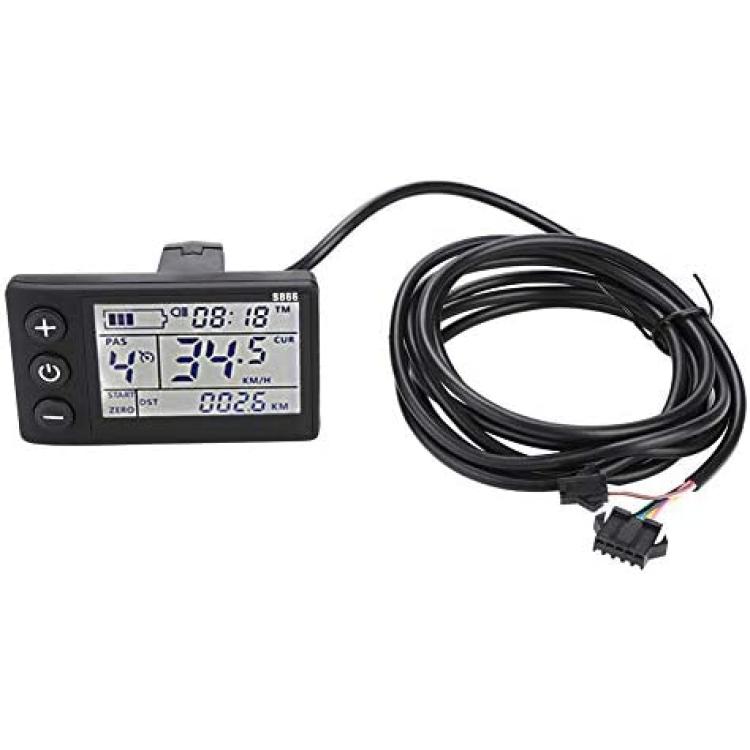

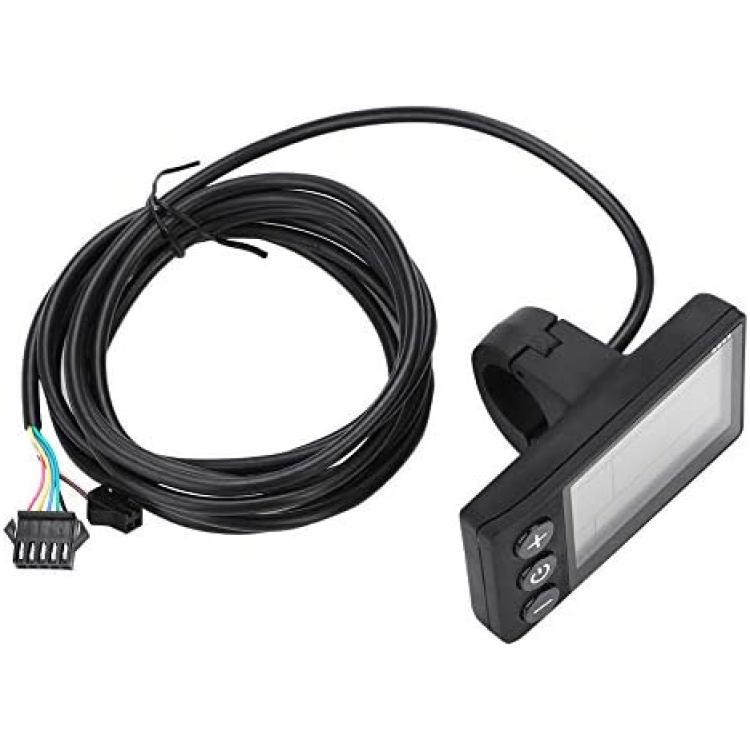

*The LCD display can show the status and data clearly, the backlight allows you to see clearly in dark surroundings, buttons for quick operation, easy to use
*The controller is brushless, works quietly and is sensitive to the condition of the electric bike

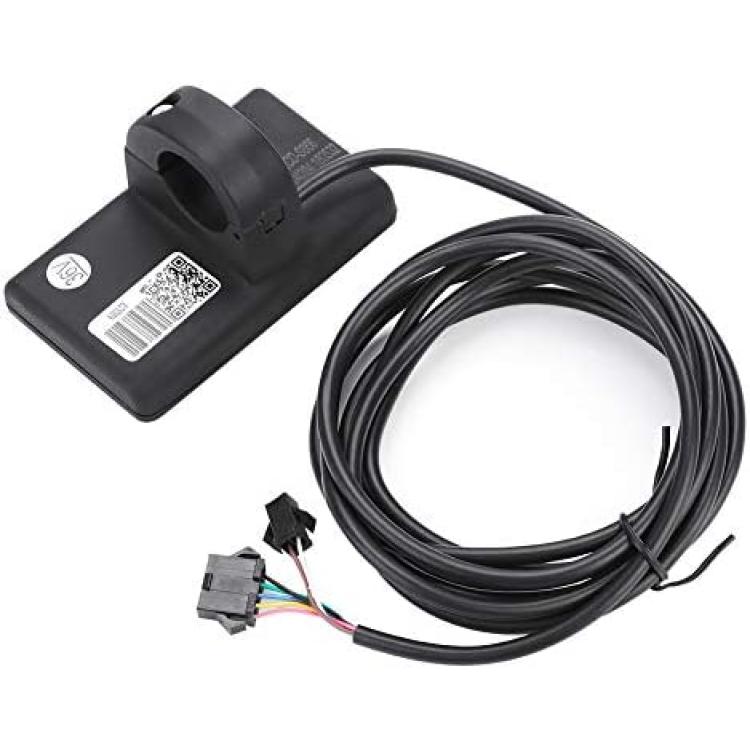

*Easy to install and use, with holder for LCD display and suitable for 22.5 mm handlebars
*Suitable for electric bicycles, cars, scooters
Description
Functions:
Specification:
Material: plastic + LCD + metal
Color: is displayed as an image
Options: 1 # 24V-36V; 2 # 36V-48V
Power: 250W/350W
Low voltage protection: 1 # 24V-36V: 19V/30V; 2 # 36V-48V: 30V-41V
Waterproof: rainproof

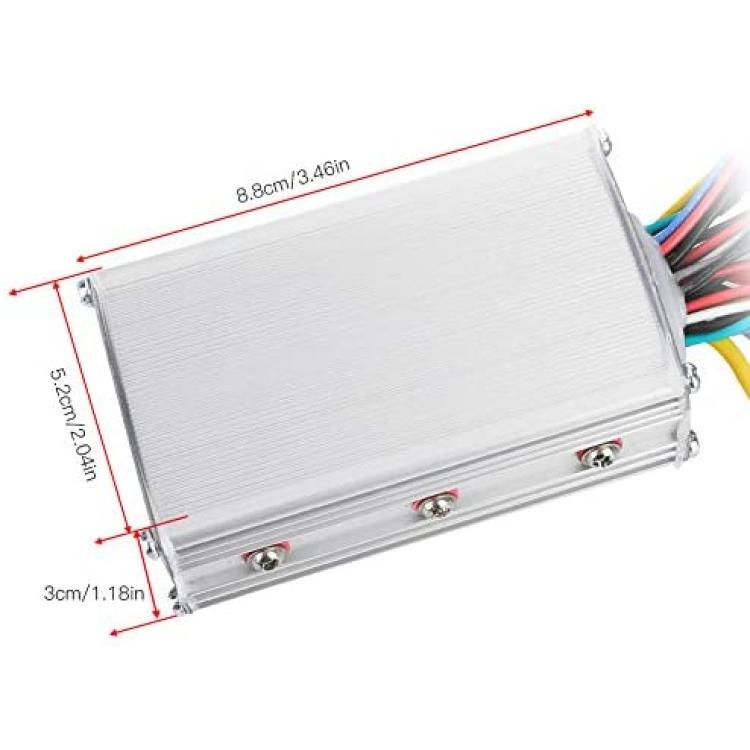

Controller size: approx. 8.8 x 5.2 x 3 cm/3.46 x 2.04 x 1.18 inches

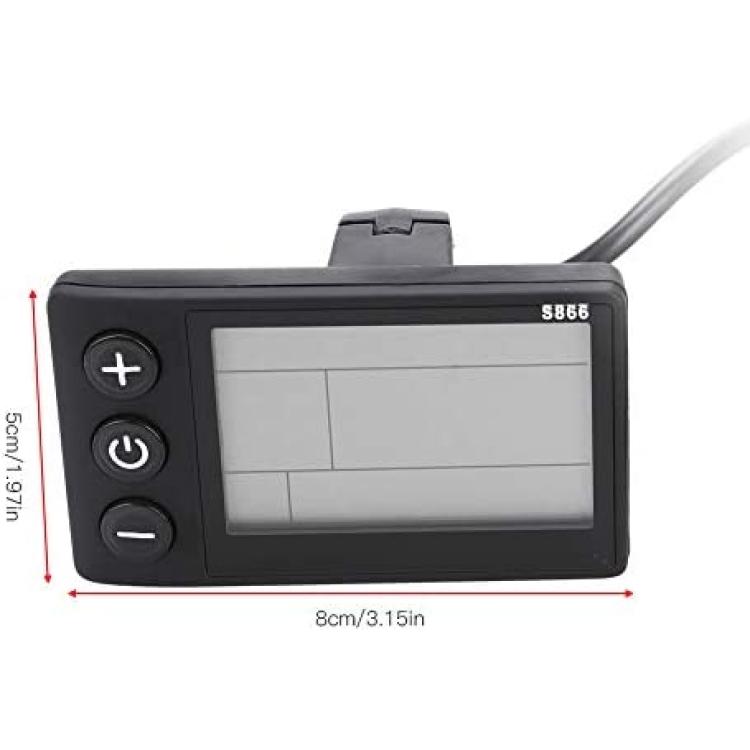

Display size: approx. 8 x 5 cm/3.15 x 1.97 inches
Approximate weight. 332 g
Package list:
1 x LCD display
1 x controller
Note:

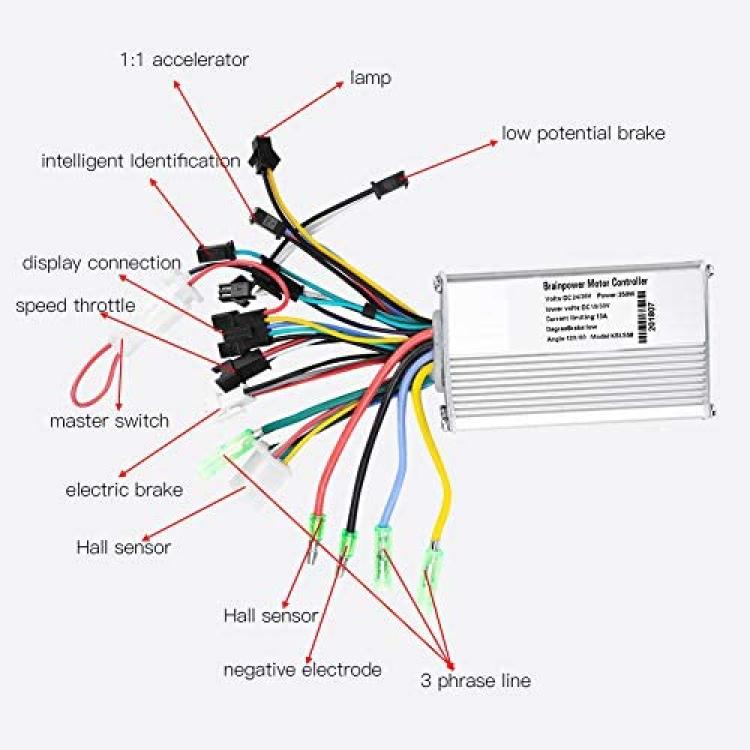

Each cable is used for different purposes Color marked.
Red: positive electrode
Black: negative electrode
Yellow: output power
Brown: positive lamp electrode
White: negative lamp electrode
Blue: display signal
Green: signal received
