AUECOOR Flexible Solar Panel Kit: 5X 100W Solar Panel High Efficiency Waterproof Solar Module+ 50A Solar Controller for RV Boat Cabin Trailer Motorhome
Description

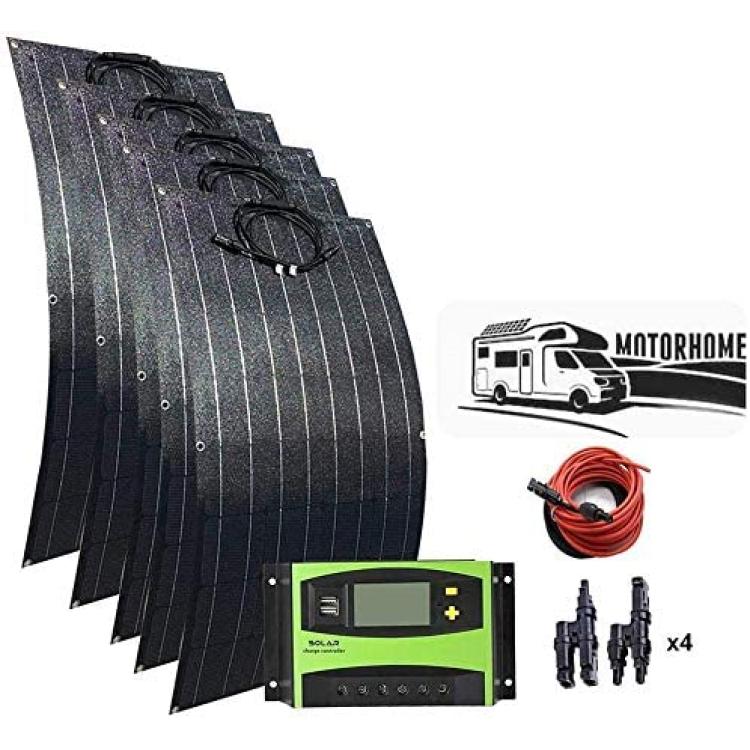

Package include:
* 5 x100W flexible solar panel
* 1x 50A 12V/24V solar controller
* 4x Pair of Y branch connectors
* 1x Totally 5 m solar cable with male female connectors
AUECOOR 100W flexible solar panel specification:
Maximum Power: 100W
Optimum Operating Voltage (Vmp): 17.5 V
Open-Circuit Voltage (Voc):21 V
Optimum Operating Current (Imp): 5.72 A
Short-Circuit Current (Isc): 6.22 A
Dimensions:1050*540*2.5mm /41.3*21.2*0.1 Inches
Weight: 1.85KG/4.1LBS
90cm of special cable with connectors attached

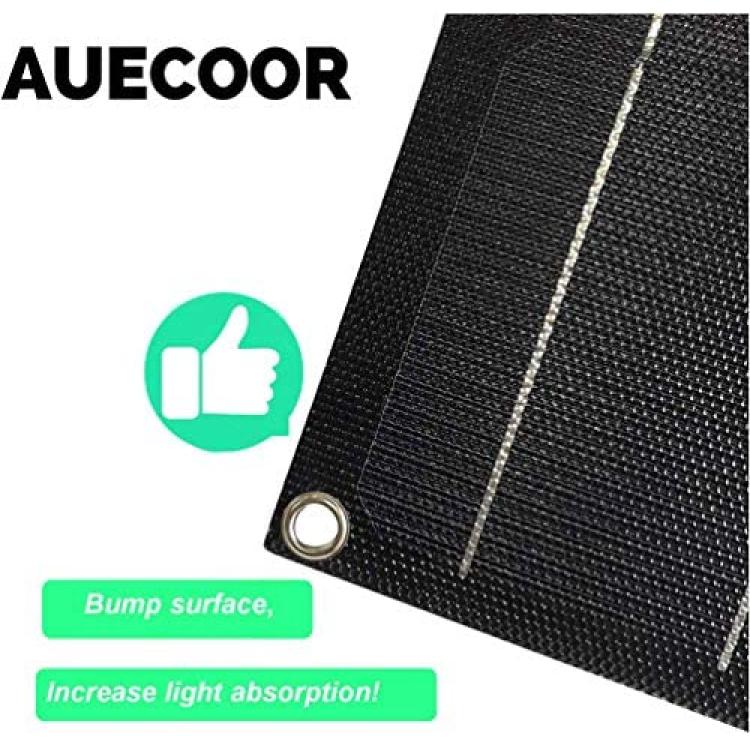

High Effiency
Featuring with honey - comb structure which enhance 10% natural lighting, high transparency(95%) to ultra-violet light.

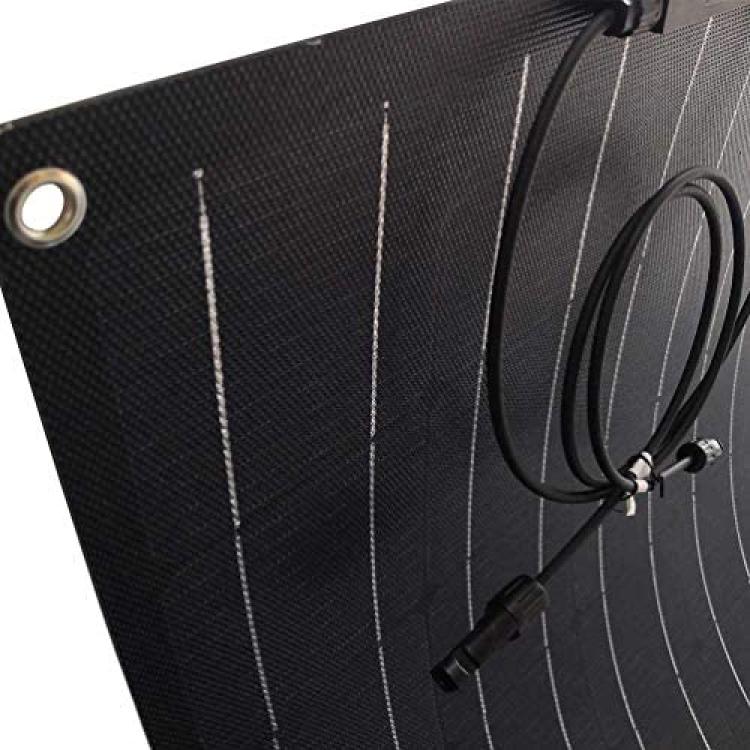

Nice Details
Six evenly spaced metal grommet mounting holes are available to attach fasteners. The panel can also be mounting using adhesive or Velcro. The junction box on the panel is sealed and waterproof
Flexible and convenient
the panel can be flexed to a maximum of 30 degrees for easy installation.
Self-cleaning:
Be free from maintenance, rainfall cleans the dirt due to its nonstick surface.
Applicable for
RV, boat, cabin, tent, yachts, car, trucks, trailers, etc. Perfect for 12-volt battery charging or multiple panels can be wired in series for 24/48-volt battery charging or for grid-tied applications

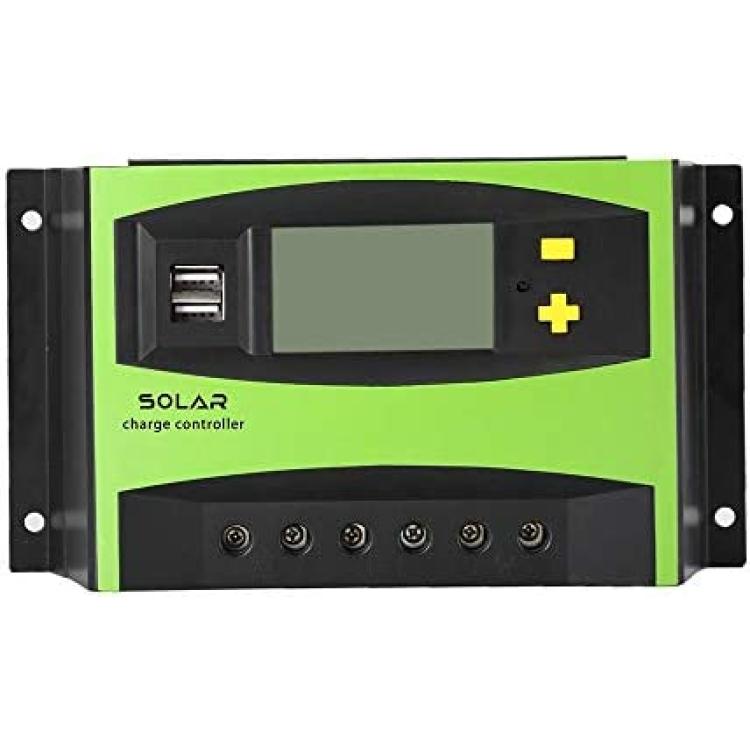

50A 12V/24V solar controller
Rated charge current: 50A
System voltage: 12V/24V auto
Note
Please do NOT bend the semi-flexible solar modules more than 30 degrees and NOT reverse bending them.
