AUECOOR Flexible Solar Panel Kit 100w Photovoltaic Solar Panel 10A LCD USB Controller 12V 24V RV Boat Yacht RV car + 5M Solar Cable

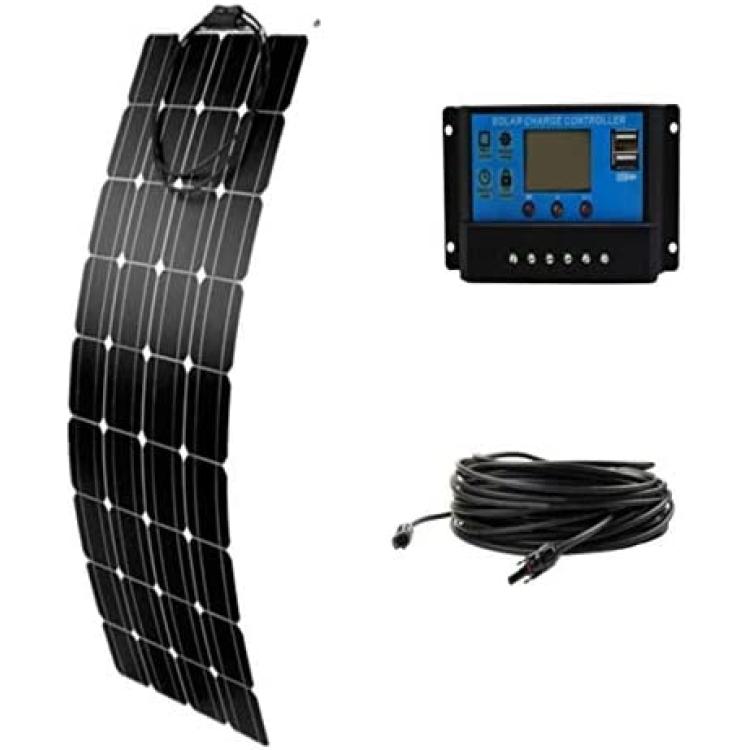

Package include:
* 1 x100W flexible solar panel,
* 1 x 10A LCD 12V/24V solar controller,
* 1 x 5M solar cable with connectors,

* 100W Flexible Solar Panel (36pcs cells)
Specification:
Maximum Power: 100W
Optimum Operating Voltage (Vmp): 18 V
Open-Circuit Voltage (Voc):21 V
Optimum Operating Current (Imp): 5.5 A
Short-Circuit Current (Isc): 6.25 A
Dimensions:1200*550*2.5mm /47.24X21.65X0.1 In
Weight: 4.40lbs (2.0KG)
90mm of special cable with connectors attached
Juction box with diodes within for safety protection

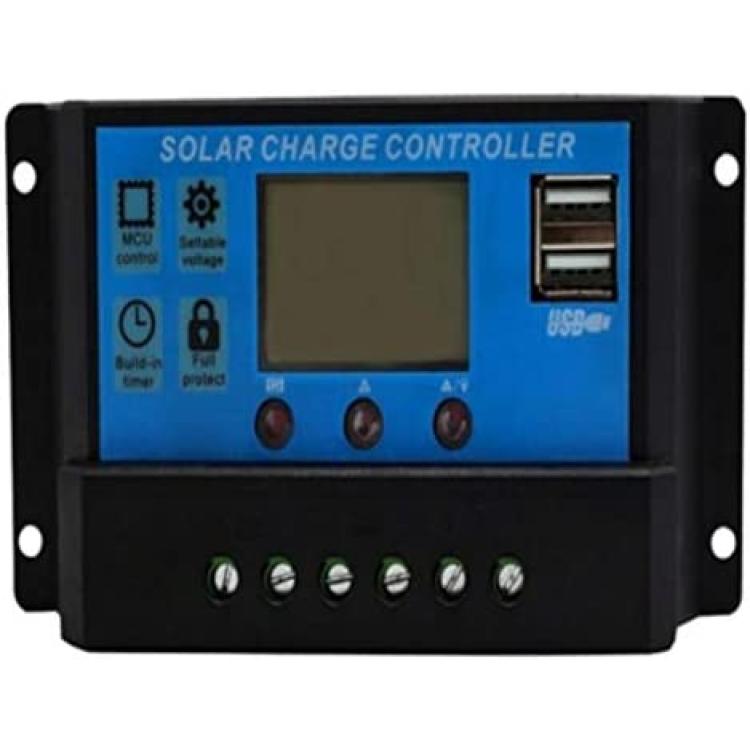

* PWM 10A LCD 12V/24V Solar Controller
Features:
1. Build-in industrial micro controller.
2. Big LCD display, all adjustable parameter.
3. Fully 4-stage PWM charge management.
4. Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection.
5. Dual mosfet reverse current protection, low heat production.

Specification:
Battery Voltage : 12V / 24V
Charge Current :10A
Discharge Current : 10A
Working Temperature : -35? to +60?
Application :Home, Industrial, Commercial
Self consume : ?10mA
Float Charge :13.7V
Discharge stop:10.7V
Discharge reconnect :12.6V
Size : 150 x 78x 35mm
12V battery can only access 18V-20V solar panels
24V battery can only access 36-40V solar panels
10A (12V120W (MAX) 24V/240W(MAX) )

Warm Tips:
Please handle the solar panel with care and avoid over-bending or bump, otherwise this may result in damage to the product.

The plastic film is used to protect the panel, it may fall off during use, but it will not affect the solar panel.

Please feel free to contact AUECOOR if need any help.
Solar kit will be delivered in multiple packages
